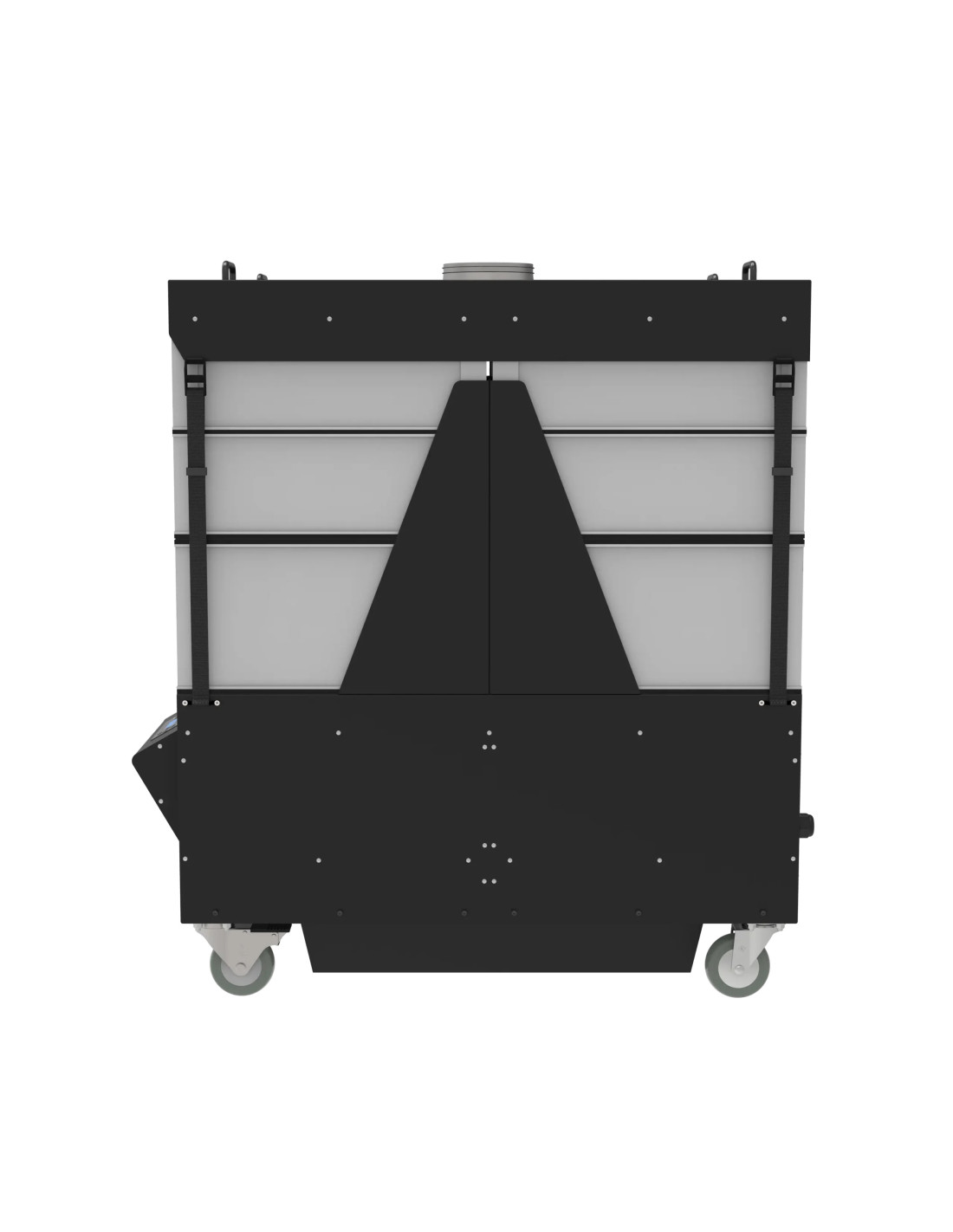

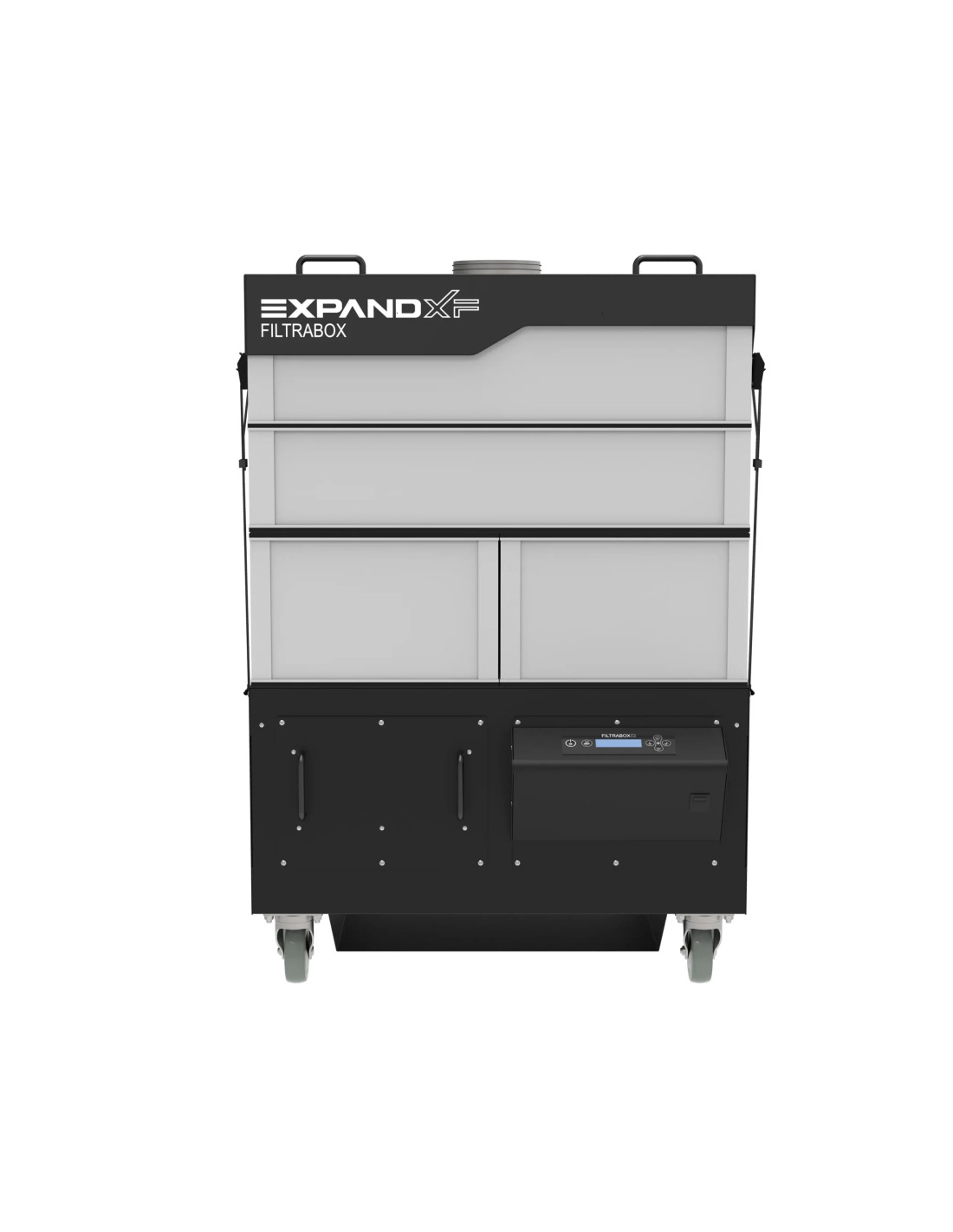

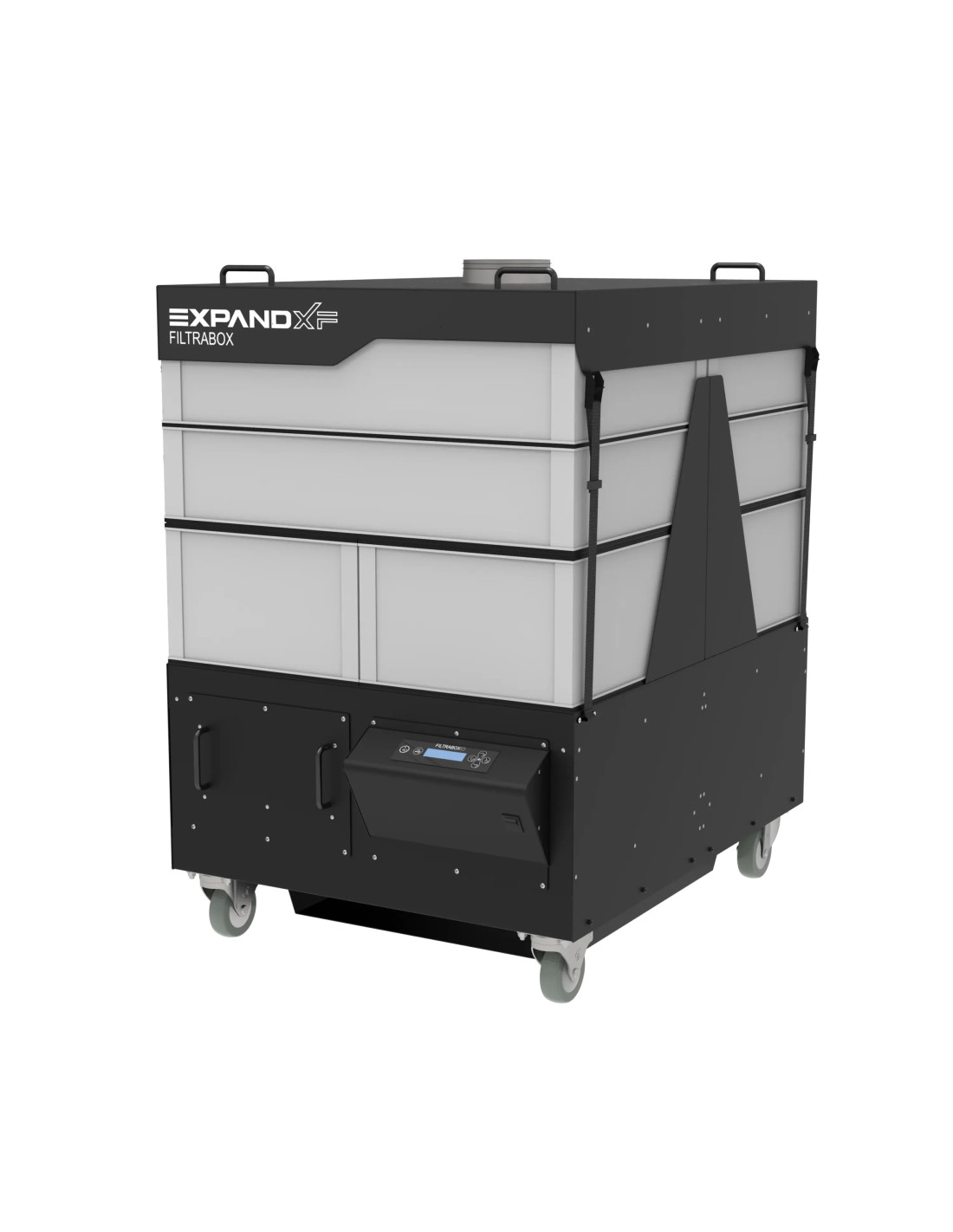

Filtrabox Expand XF-1 extraction unit
FUJITA-TM66-1
Filtrabox
Product features
3D printing and plastic melting
Adhesive vapours
Fumes from soldering
Laser fumes
Adhesive vapours
Fumes from soldering
Laser fumes
99,999%
Pre-filter 44 m², HEPA filter 44 m², Chemical filter 109 kg (activated carbon impregnated with potassium permanganate)
400 m3 -volitelně až 2400 m3/h
125 kg
122 cm
102 cm
140 cm
Expand XF Series
is an exhaust extraction system from PAT Technology Systems that provides professional air purification for laser cutting and engraving. With advanced filtration technology and intelligent control systems, the Expand XF provides a clean and safe working environment and maximizes operational efficiency.
Modular solution:
Start with 1 fan and add up to 6 fans per machine as your production grows. This gives you an airflow of up to 2400 m3/h.
Excellent performance:
Each industrial blower filters 400 m3/h of clean air.

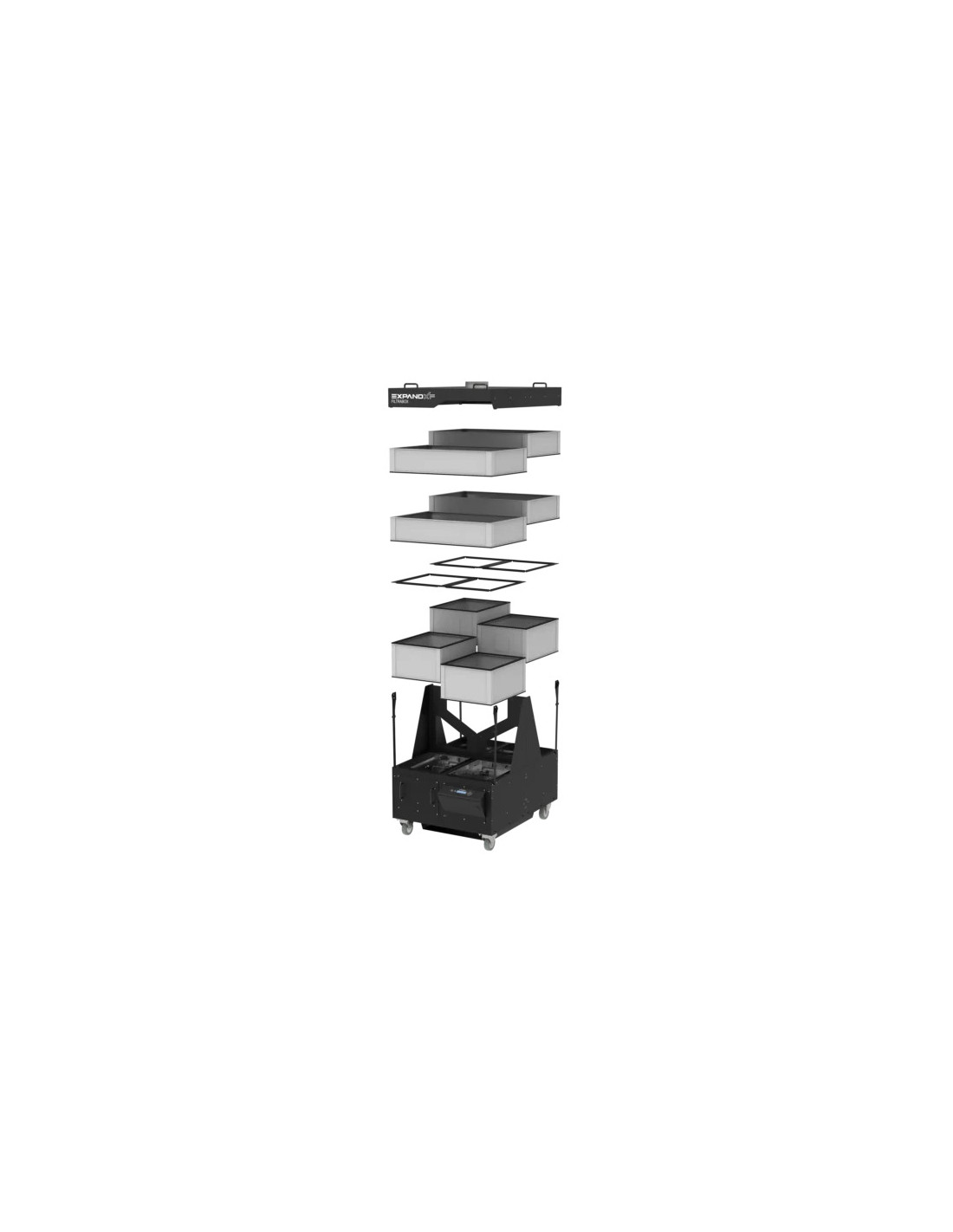

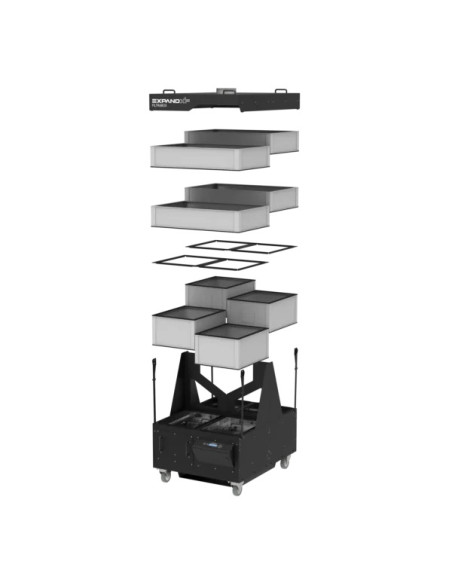

Three-stage filtration: pre-filter (F9), HEPA (99.999% at 0.3 µm), molecular gas filter
(activated coconut carbon impregnated with magnanate).
Automatic flow control:
The unit automatically maintains the set flow rate even when the filters become clogged with dust.
Connectivity:
Simple on/off, EZ-link or fully automated Modbus RS485 control.
Low operating costs:
Durable, long-life aluminum filters, easy to change, quiet operation (~65 dB).
Ideal for:
- High-performance laser cutting/engraving
- Industrial multi-shift operations
- OEM integration
- Planned growth equipment
- Laser cleaning
is an exhaust extraction system from PAT Technology Systems that provides professional air purification for laser cutting and engraving. With advanced filtration technology and intelligent control systems, the Expand XF provides a clean and safe working environment and maximizes operational efficiency.
Modular solution:
Start with 1 fan and add up to 6 fans per machine as your production grows. This gives you an airflow of up to 2400 m3/h.
Excellent performance:
Each industrial blower filters 400 m3/h of clean air.
Three-stage filtration: pre-filter (F9), HEPA (99.999% at 0.3 µm), molecular gas filter
(activated coconut carbon impregnated with magnanate).
Automatic flow control:
The unit automatically maintains the set flow rate even when the filters become clogged with dust.
Connectivity:
Simple on/off, EZ-link or fully automated Modbus RS485 control.
Low operating costs:
Durable, long-life aluminum filters, easy to change, quiet operation (~65 dB).
Ideal for:
- High-performance laser cutting/engraving
- Industrial multi-shift operations
- OEM integration
- Planned growth equipment
- Laser cleaning
