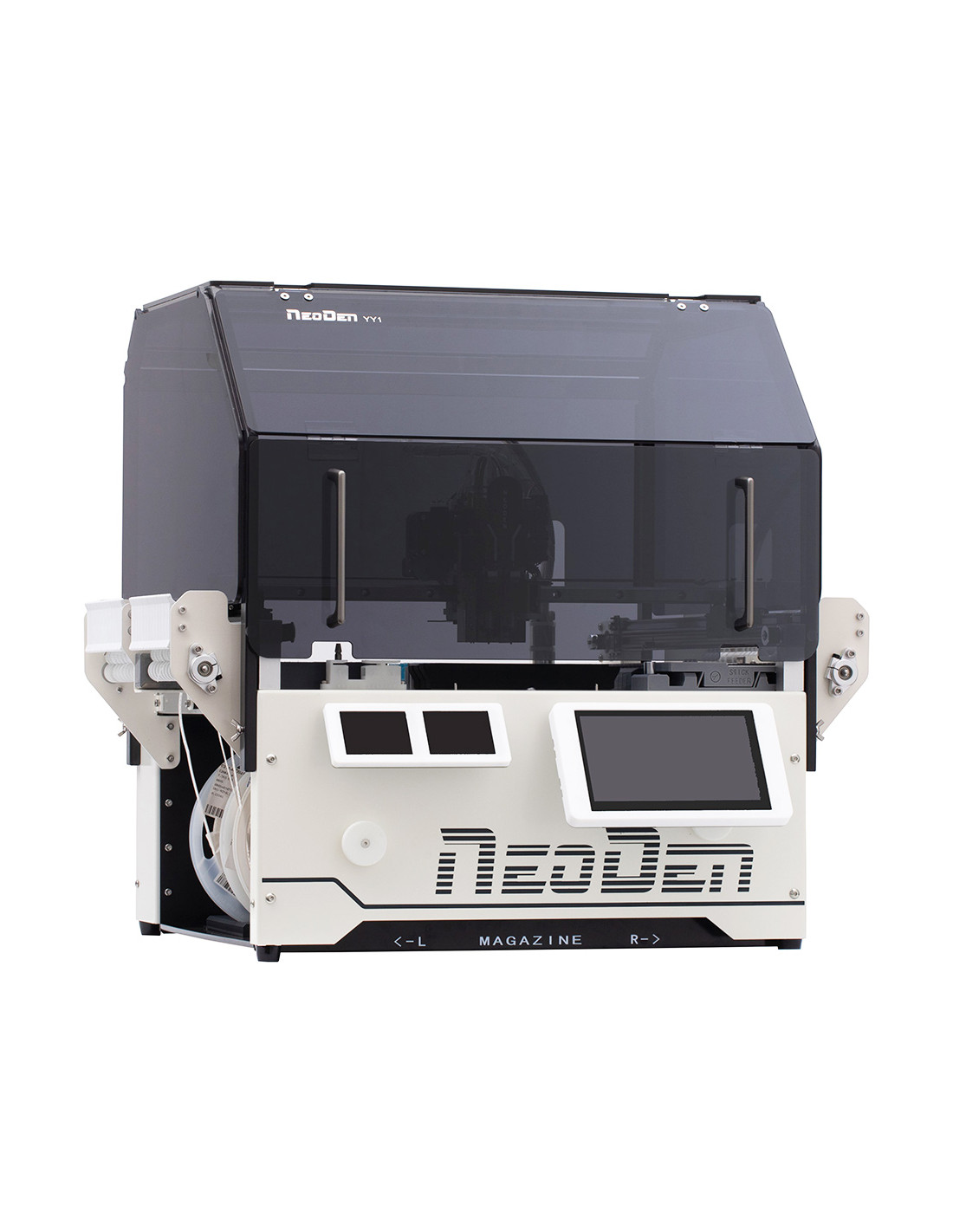

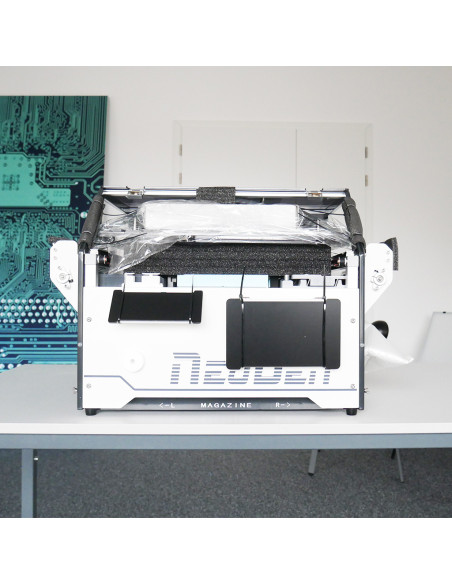

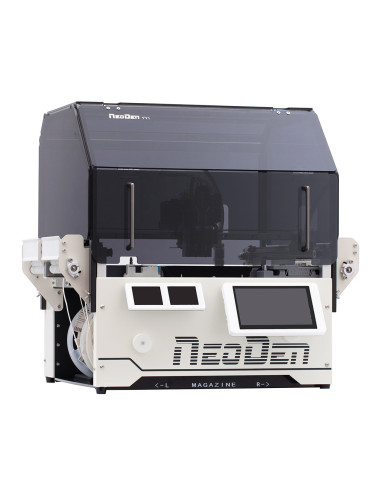

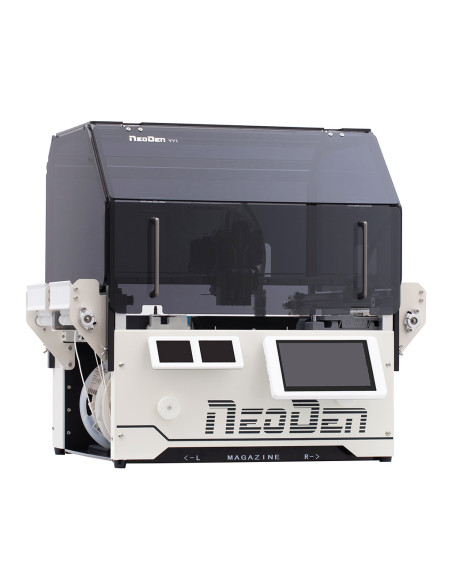

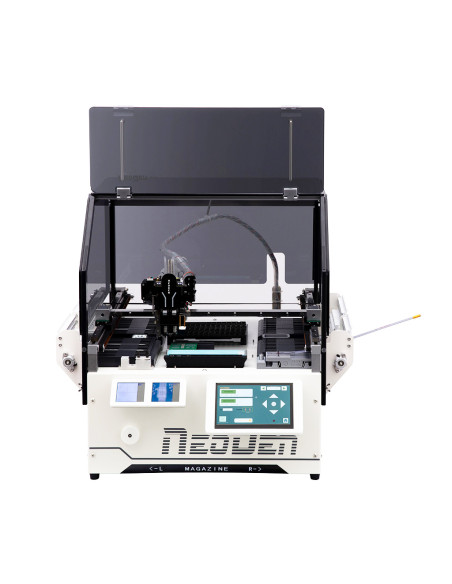

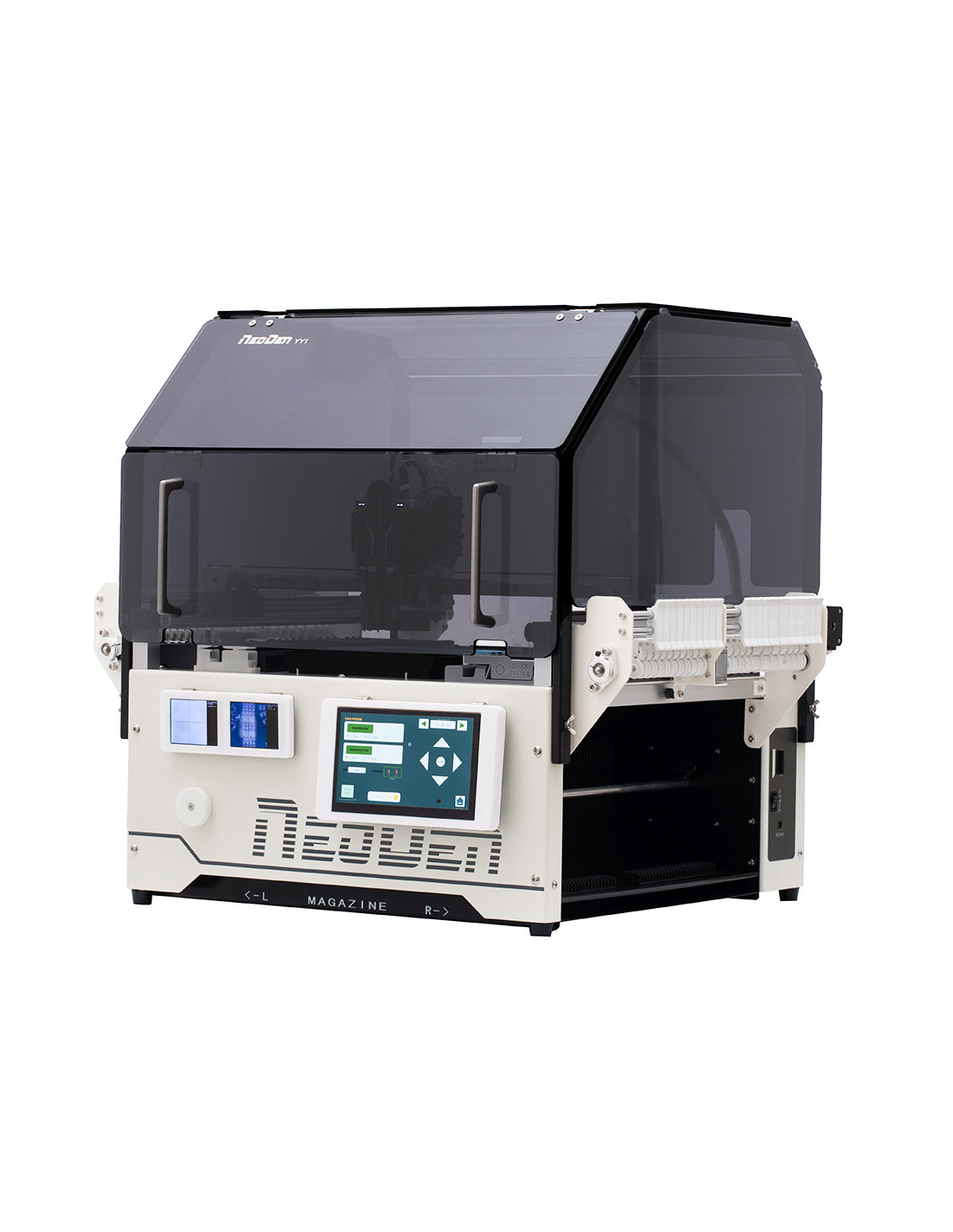

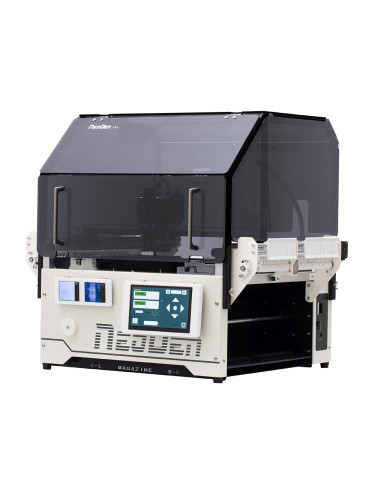

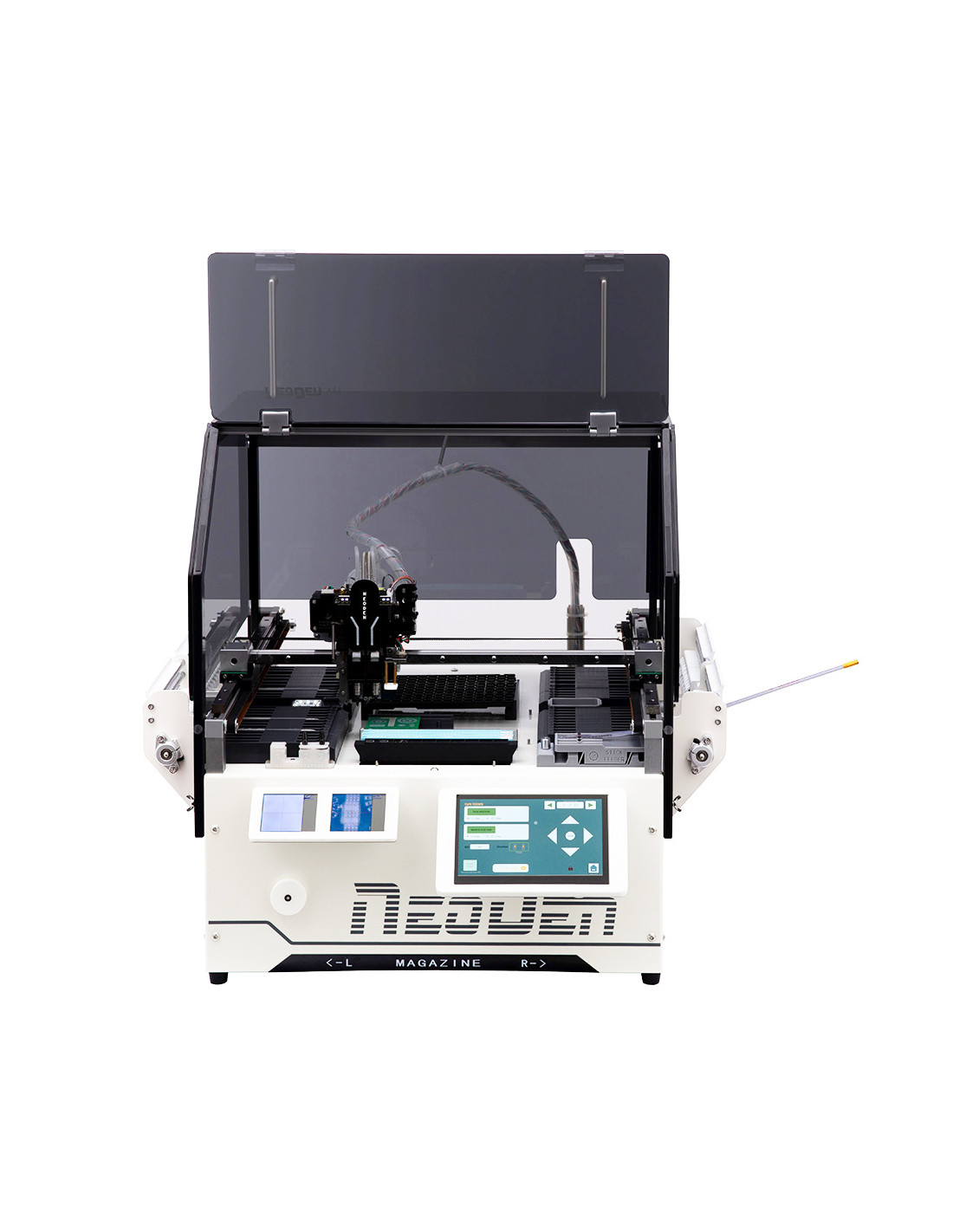

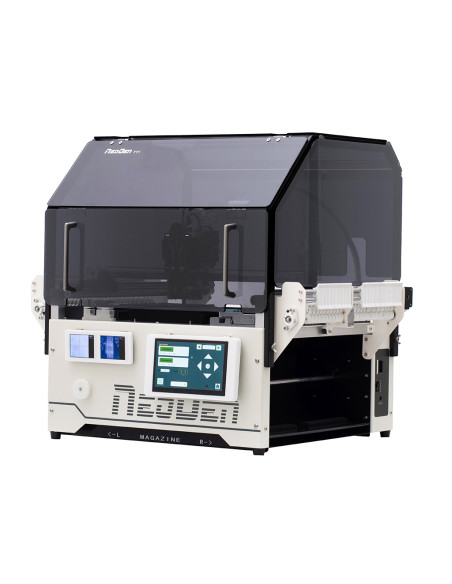

Setting Pick&Place machine NEODEN YY1

Reference: NEODEN-YY1

Brand: NeoDen

In stock 1 pcs

89,990.00 CZK

Tax excluded / pc

108,887.90 CZK Tax included

Dimensions:

643(D)x530(H)x601(V)mm

Supply voltage:

230 V

Operating system:

Custom operating system

Maximum PCB size:

220 x 300 mm

Compressed air:

Own vacuum pump

Number of mounting heads:

Max. number of feeders:

41x 8mm, 6x 12mm, 3x 16mm, 4x bars

Centering:

Optical - camera

Types of feeders:

Tape, bar, loose, cut strips, TRAY

Setting speed:

4000 units/hour

Realistic settling speed:

2000 units/hour

Setting accuracy:

0.02 mm

Component sizes:

0201 to 18 x 18 mm

Maximum component height:

12 mm

Programming:

Manual and data export

Description

The NEODEN YY1 is an entry-level machine into the world of automatic SMD component assembly and is designed for schools, universities and development laboratories.

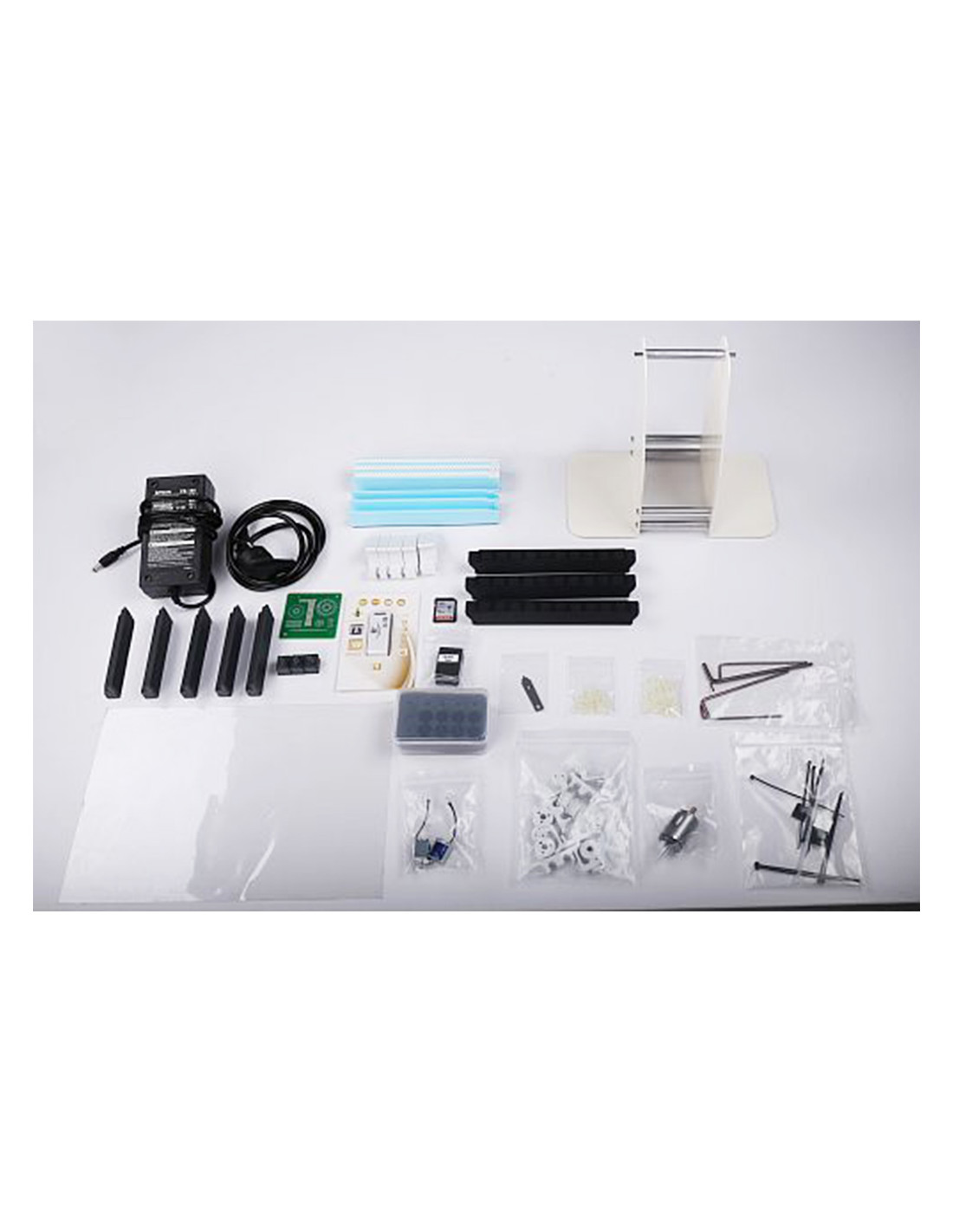

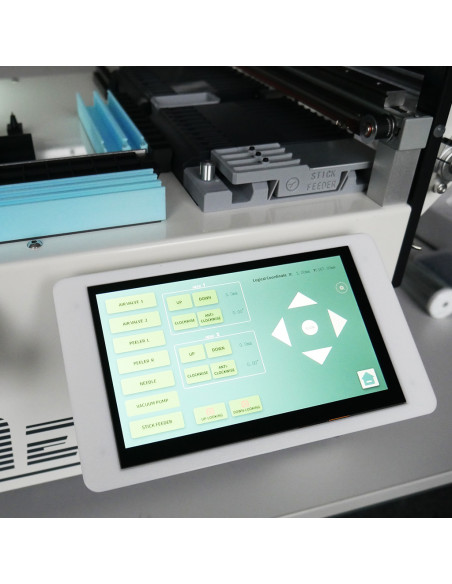

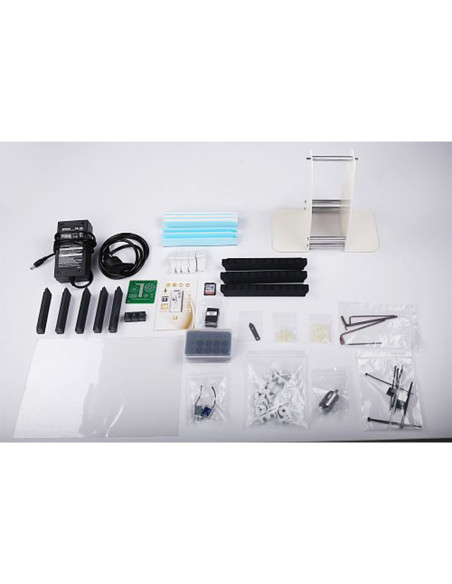

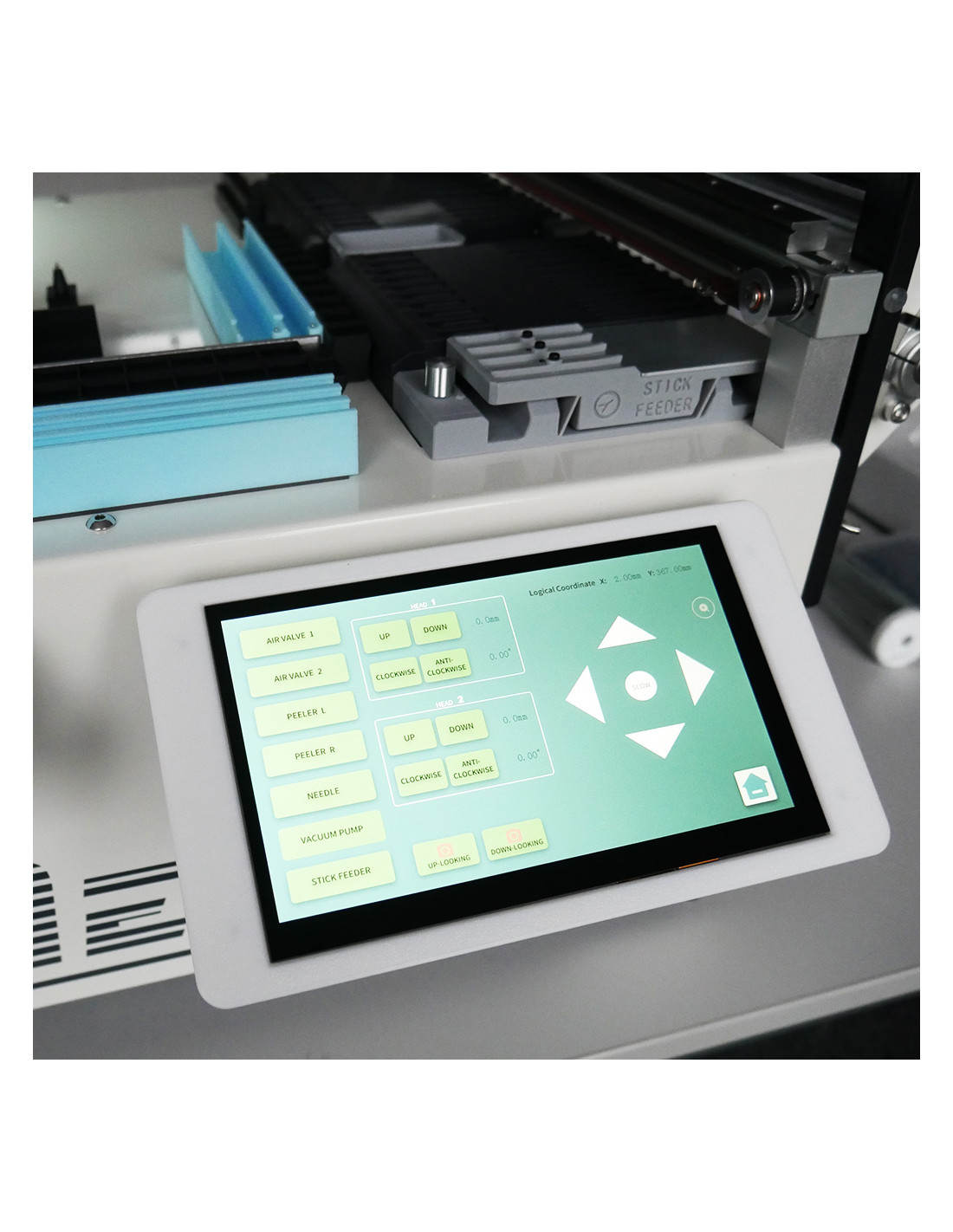

The NEODEN YY1 is fully equipped with accessories for immediate operation. It has a touch screen and intuitive software.

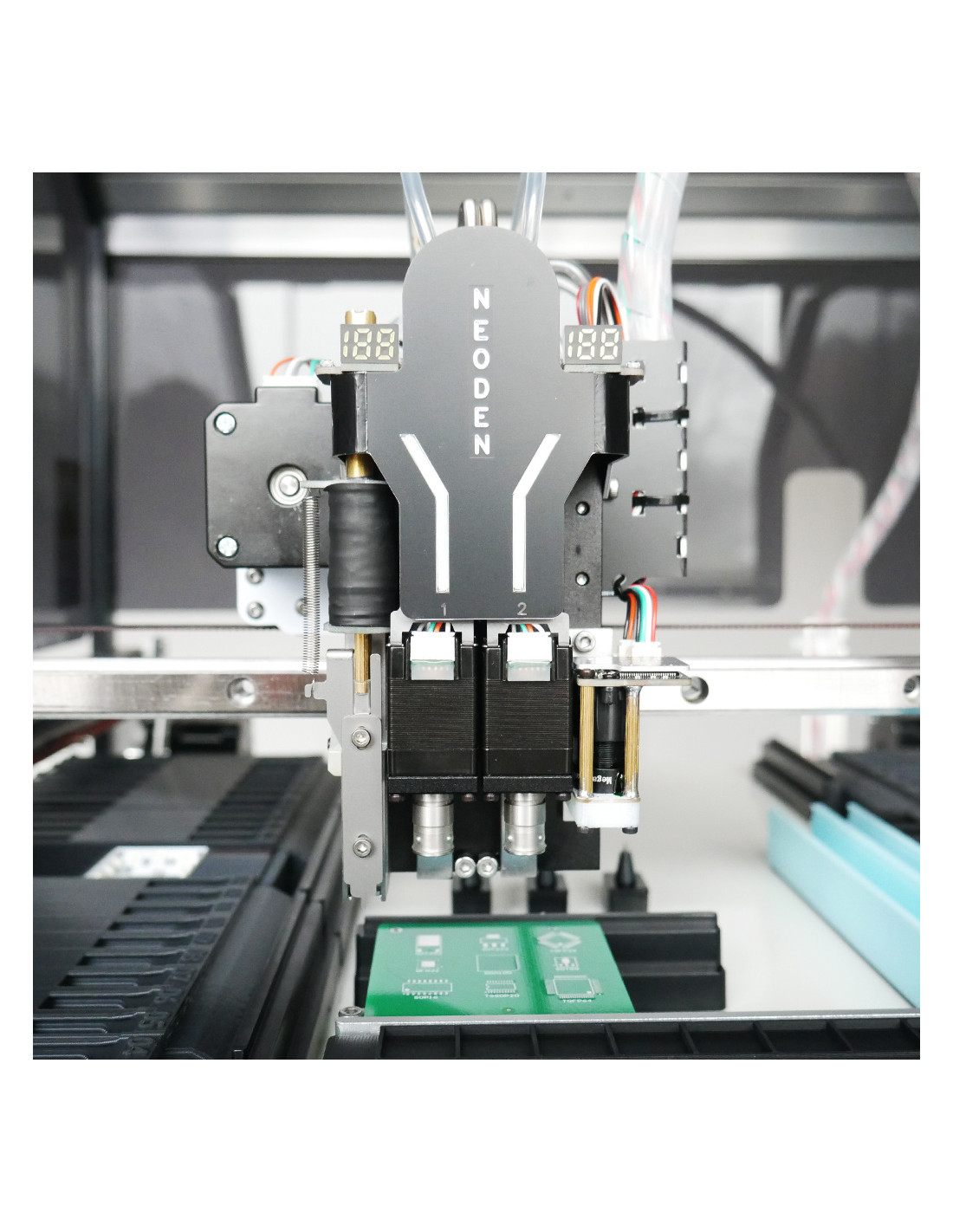

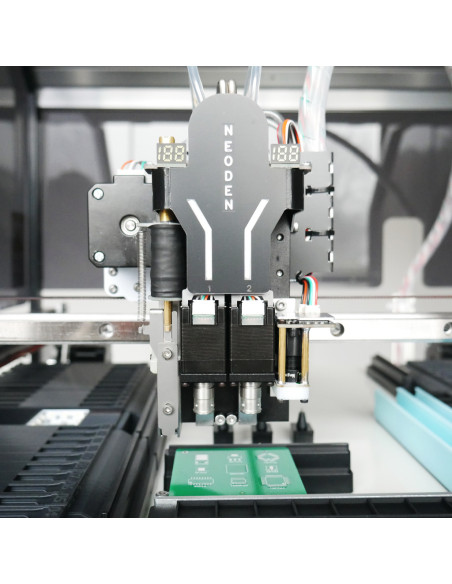

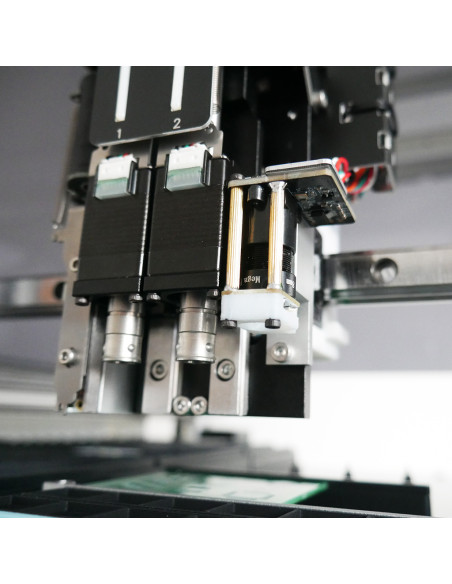

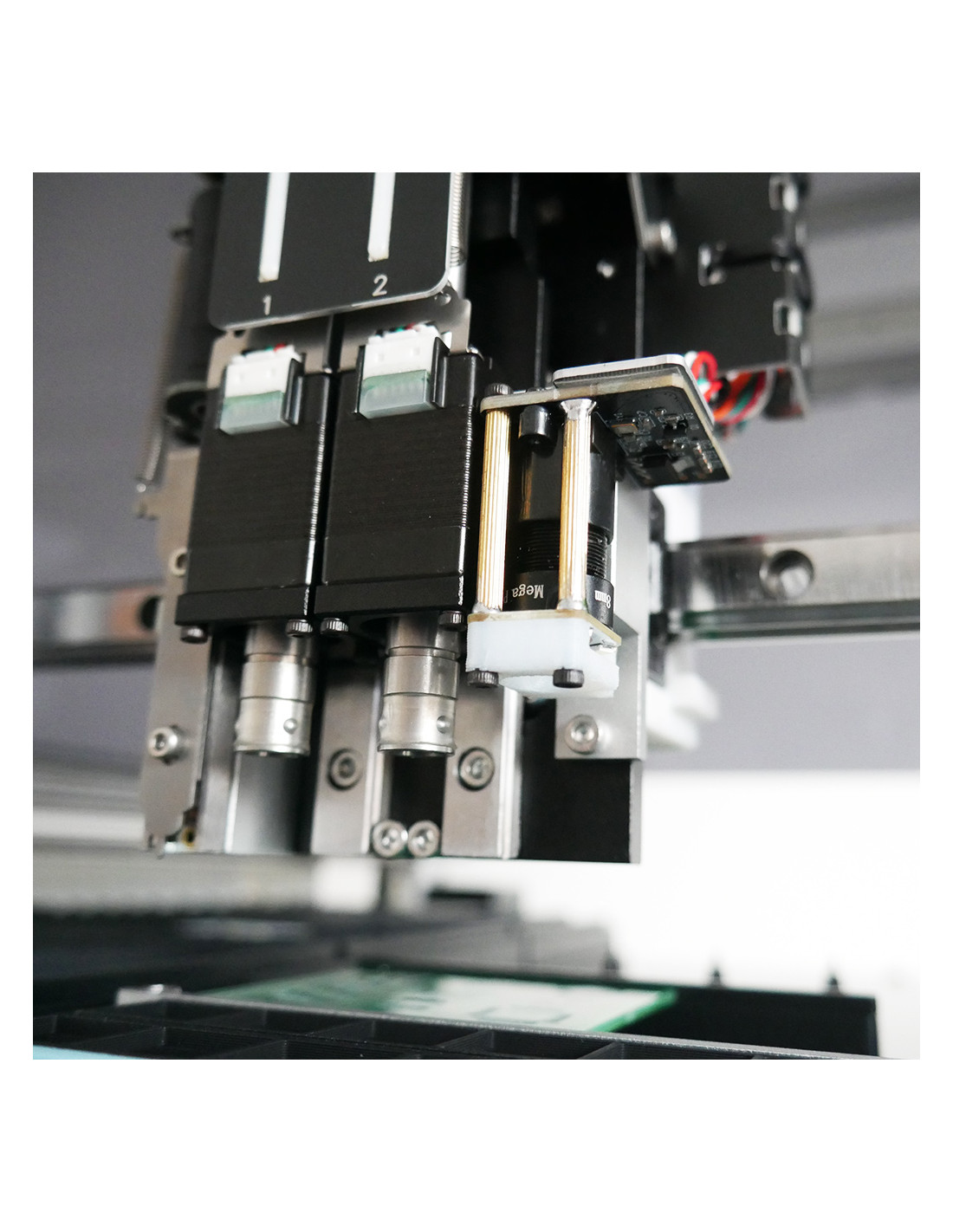

The machine has two embedding heads with the ability to automatically change up to three nozzle types located in the tray. It can pick up parts from automatic tape trays, sheared tapes, bulk parts, IO from bars and TRAY. Centering is done optically through the lower camera and a top camera is also included for alignment of guide marks and positioning.
