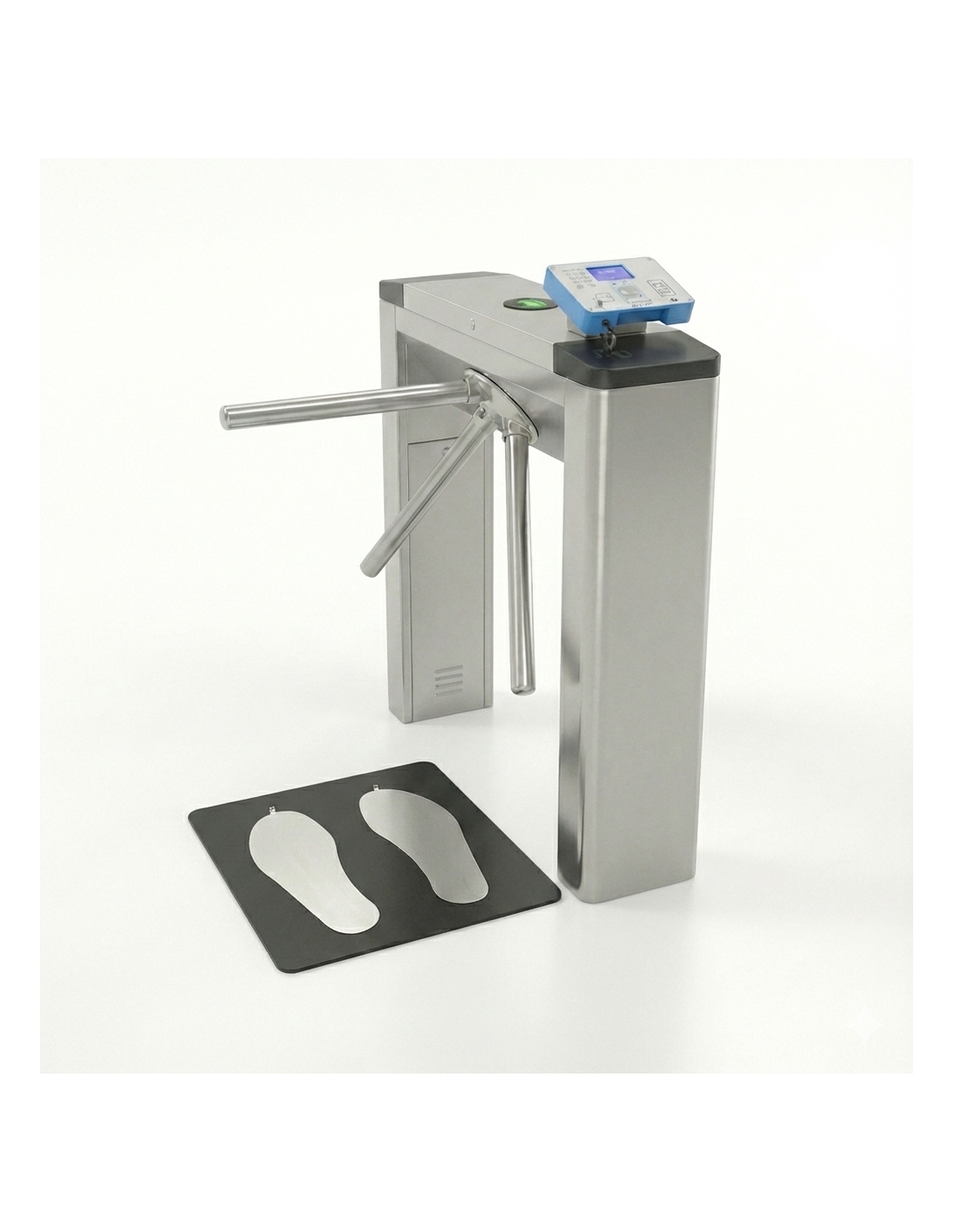

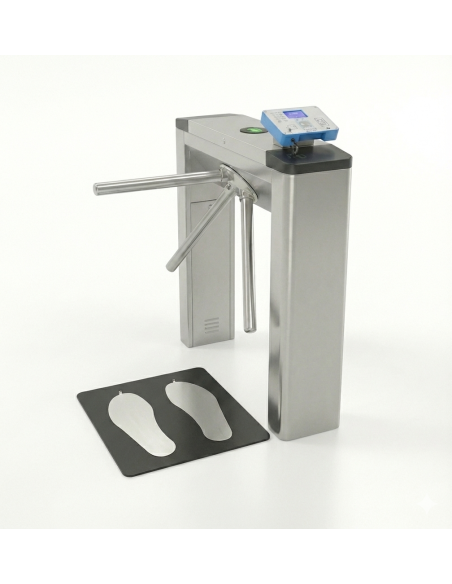

ESD turnstile PREMIUM with tester Test Station EVO, RFID 125 kHz
P2J-ESDT-10
Product features
Yes
Yes
Yes
Patent 10 mm, patent 4 mm banánek 4 mm
Náramek, obuv, kombinovaný
Polouautomatický turniket, Test Station RFID EVO (125 kHZ), duální elektroda pro obuv, software
Ano
The new version of the two-way turnstile entry solution and the combined ESD tester Test Station EVO with integrated 125kHz RFID card reader.

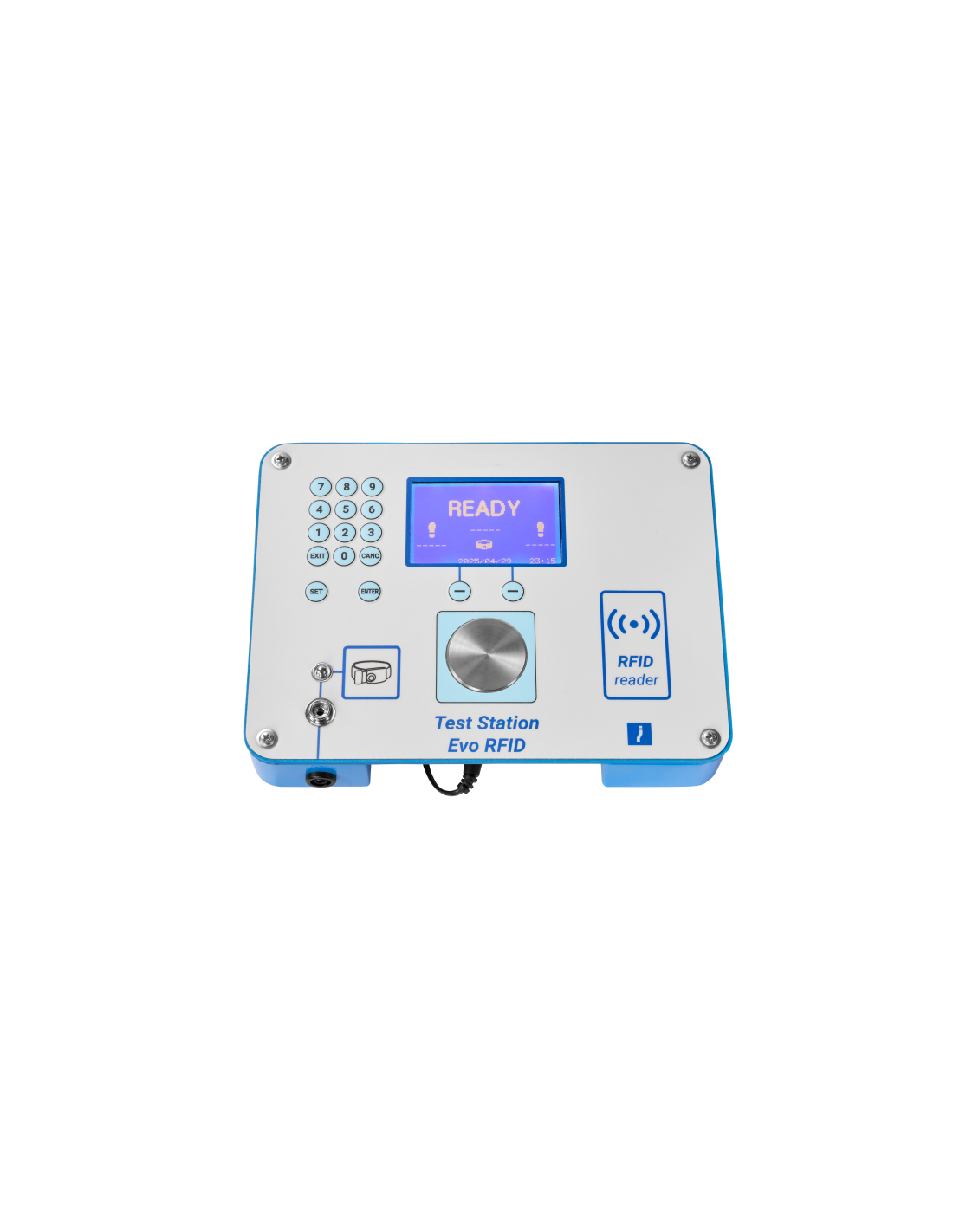

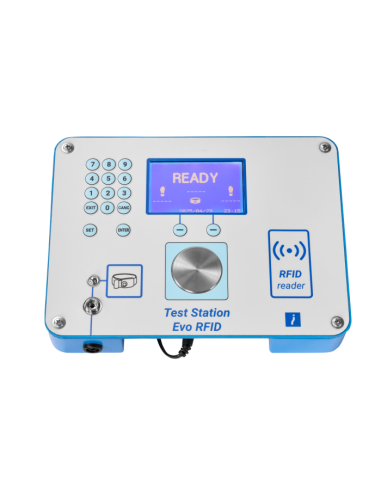

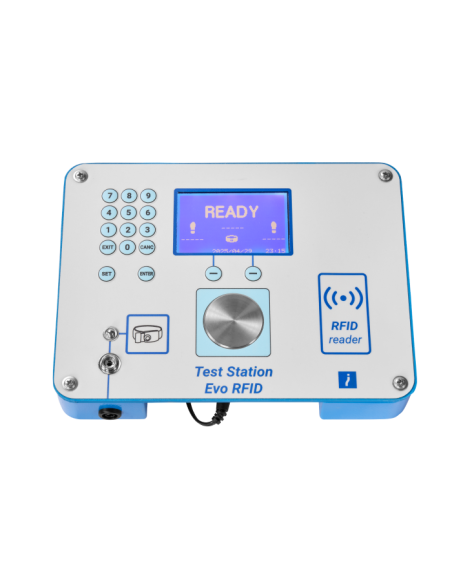

The modern EVO RFID test station is a professional solution for reliable grounding control of personnel in EPA premises. It enables simultaneous testing of ESD bracelets and anti-static footwear while providing user identification with RFID cards.

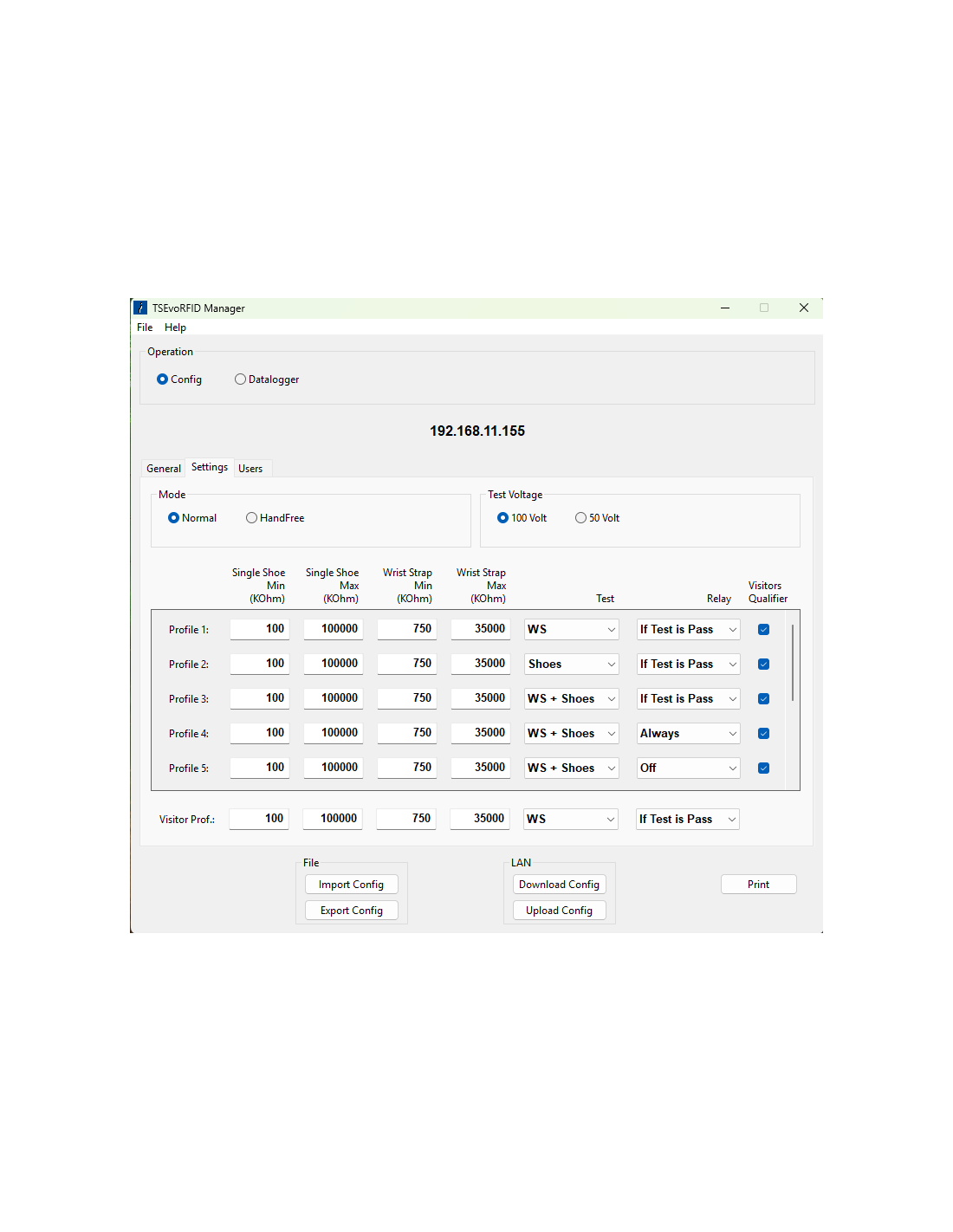

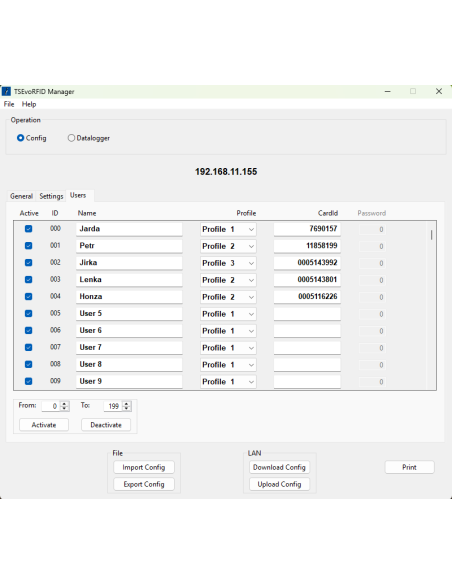

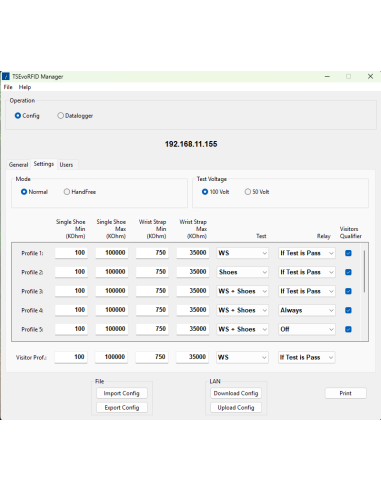

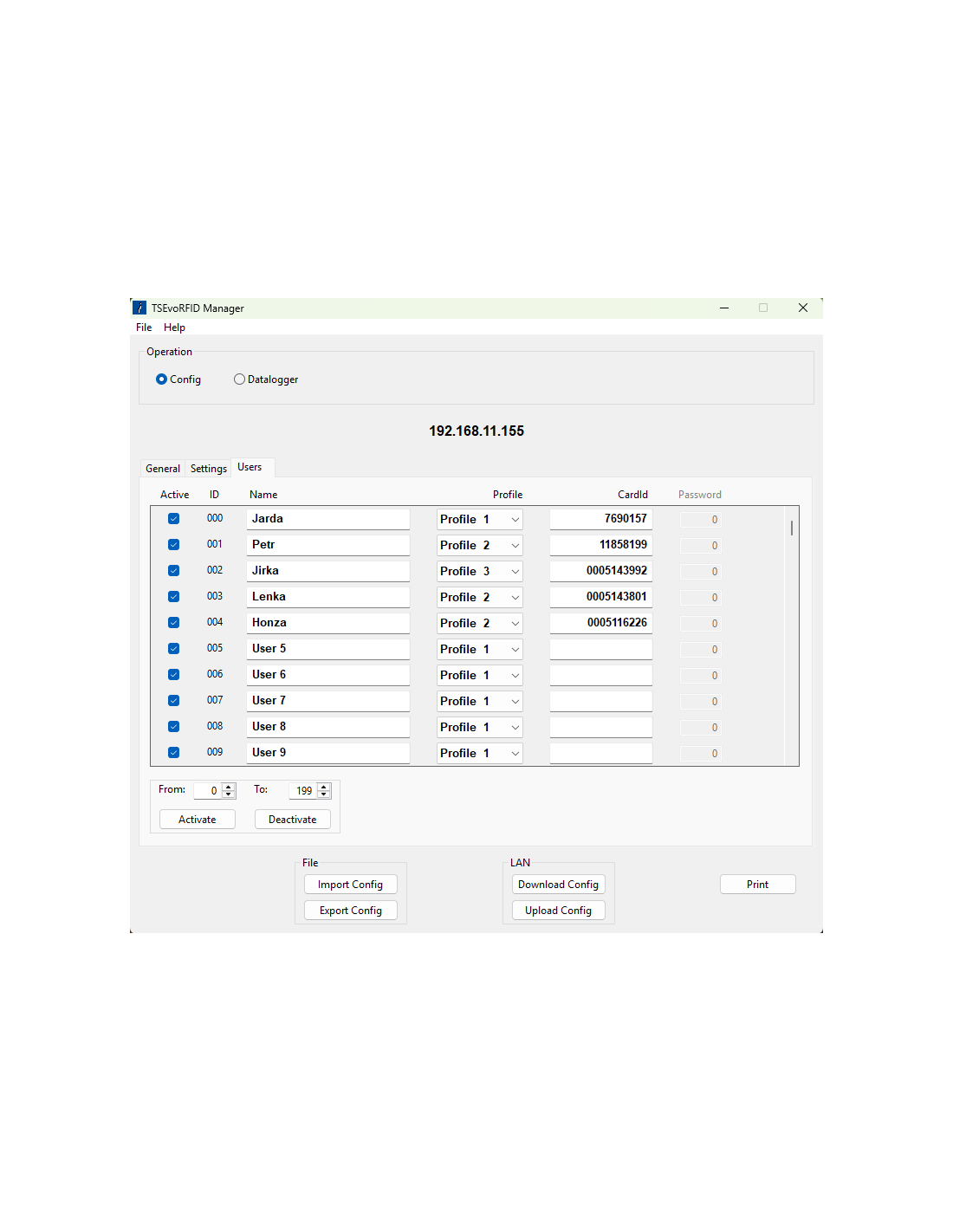

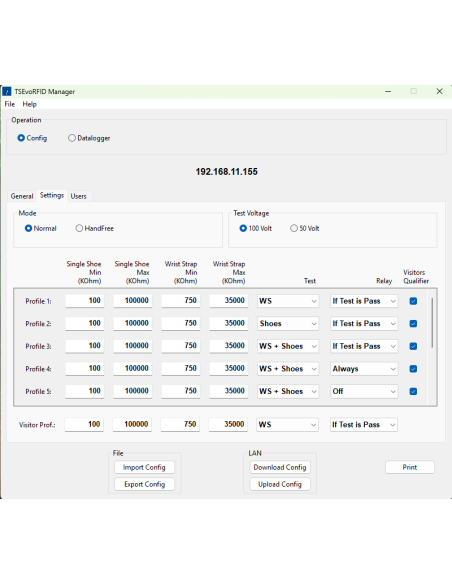

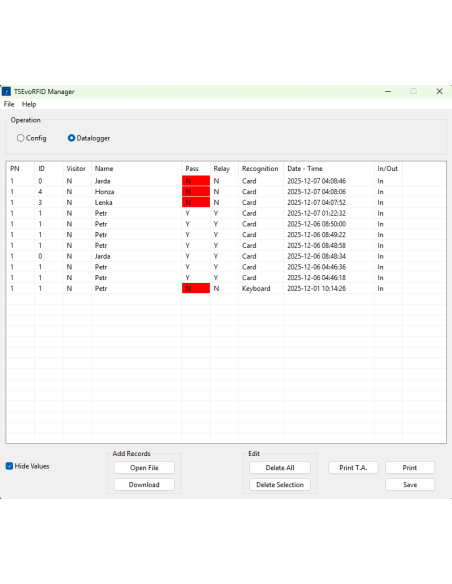

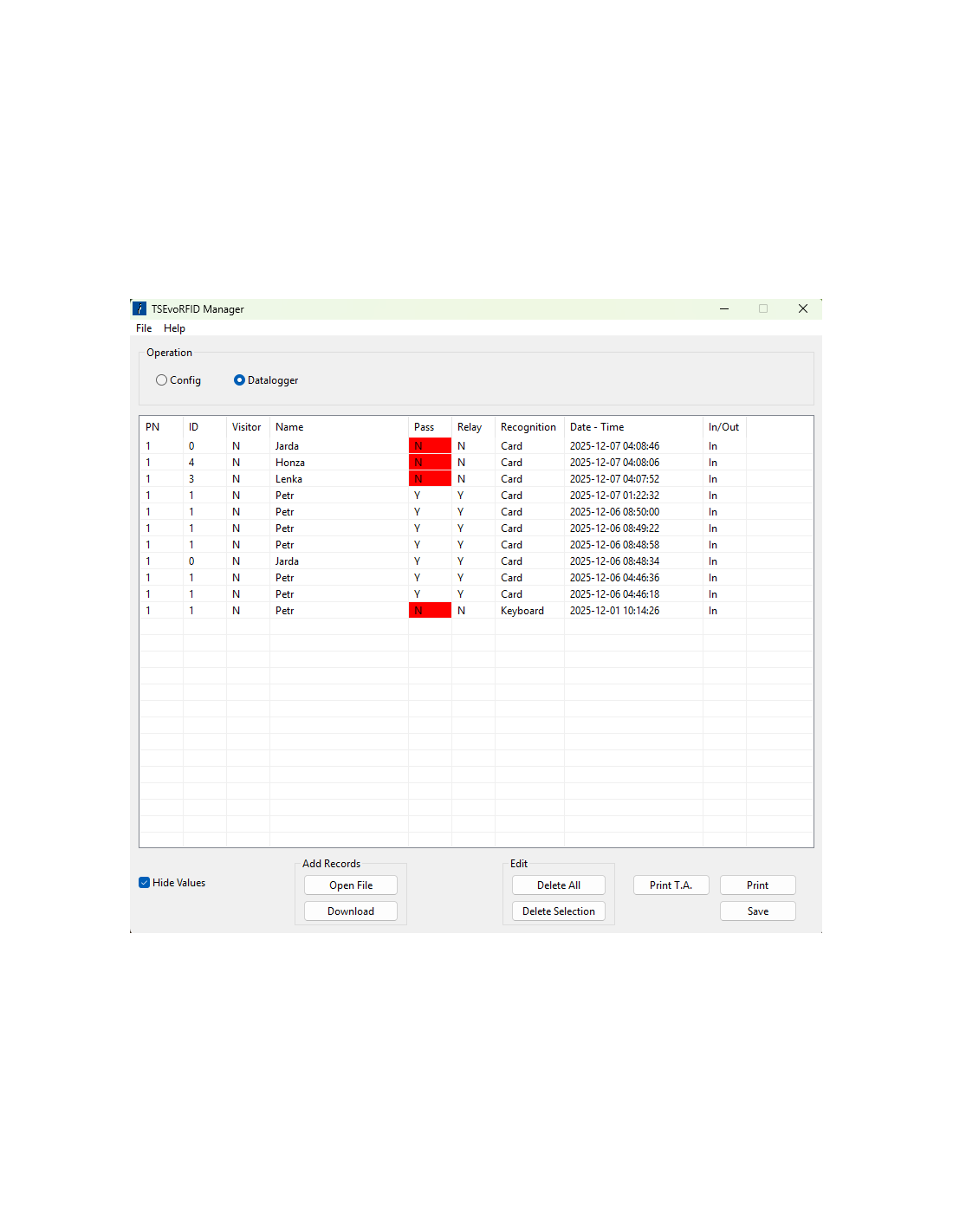

The TSEvoRFID_Manager software is used to manage and evaluate the data stored in the test station. It is compatible with Windows 10/11, requires no installation and runs directly from a networked computer.
The tester is made in the EU and complies with IEC 61340-5-1, helping to minimise the risk of electrostatic discharge and protect sensitive electronic components.
Key benefits and features:
- Simultaneous ESD bracelet and ESD shoe testing
- RFID user identification (125 kHz or 13,56 MHz)
- Automatic logging of inputs and outputs to EPA zones
- Internal memory for up to 10,000 records
- LAN connection for easy data transfer to PC
- Clear LCD display with clear indication of results
- Support for up to 200 users
- Connection and data management
- With Ethernet connection (TCP/IP, static IP address), all data on personnel access to the EPA area can be easily downloaded directly to the company PC.
Technical features of Test Station EVO RFID:
Power supply: 9-12 V DC / 1 A (power supply included)
Wristband inputs: 10 mm and 4 mm button, 4 mm banana
LAN connector: RJ45
Shoe test and door control inputs: 4-pin Phoenix connector
Measurement accuracy: ±10 %
Test voltage: 50 V / 100 V (optional)
Relay output: max. 60 V, 1 A - 50 VA
Recognition: RFID card or ID and password
Recognition speed: 1 s
Display: graphic LCD 160 × 104 px
Dimensions: 225 × 168 × 38 mm
Weight: 650 g
Technical features of the turnstile:
Reversible semi-automatic turnstile of the Bridge type
Power supply 230V/50Hz
Dimensions 1200 x 300 x 1000 mm
Intelligent Control System (connection of input and output peripherals, fire alarm)
Optional accessories:
- Turnstile platform with anti-slip treatment
- Railing
- Button or RFID reader for exit through the turnstile
The modern EVO RFID test station is a professional solution for reliable grounding control of personnel in EPA premises. It enables simultaneous testing of ESD bracelets and anti-static footwear while providing user identification with RFID cards.
The TSEvoRFID_Manager software is used to manage and evaluate the data stored in the test station. It is compatible with Windows 10/11, requires no installation and runs directly from a networked computer.
The tester is made in the EU and complies with IEC 61340-5-1, helping to minimise the risk of electrostatic discharge and protect sensitive electronic components.
Key benefits and features:
- Simultaneous ESD bracelet and ESD shoe testing
- RFID user identification (125 kHz or 13,56 MHz)
- Automatic logging of inputs and outputs to EPA zones
- Internal memory for up to 10,000 records
- LAN connection for easy data transfer to PC
- Clear LCD display with clear indication of results
- Support for up to 200 users
- Connection and data management
- With Ethernet connection (TCP/IP, static IP address), all data on personnel access to the EPA area can be easily downloaded directly to the company PC.
Technical features of Test Station EVO RFID:
Power supply: 9-12 V DC / 1 A (power supply included)
Wristband inputs: 10 mm and 4 mm button, 4 mm banana
LAN connector: RJ45
Shoe test and door control inputs: 4-pin Phoenix connector
Measurement accuracy: ±10 %
Test voltage: 50 V / 100 V (optional)
Relay output: max. 60 V, 1 A - 50 VA
Recognition: RFID card or ID and password
Recognition speed: 1 s
Display: graphic LCD 160 × 104 px
Dimensions: 225 × 168 × 38 mm
Weight: 650 g
Technical features of the turnstile:
Reversible semi-automatic turnstile of the Bridge type
Power supply 230V/50Hz
Dimensions 1200 x 300 x 1000 mm
Intelligent Control System (connection of input and output peripherals, fire alarm)
Optional accessories:
- Turnstile platform with anti-slip treatment
- Railing
- Button or RFID reader for exit through the turnstile
