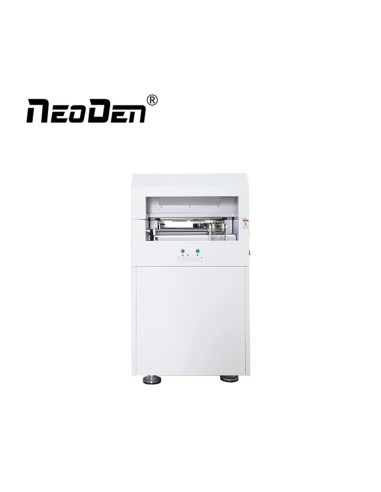

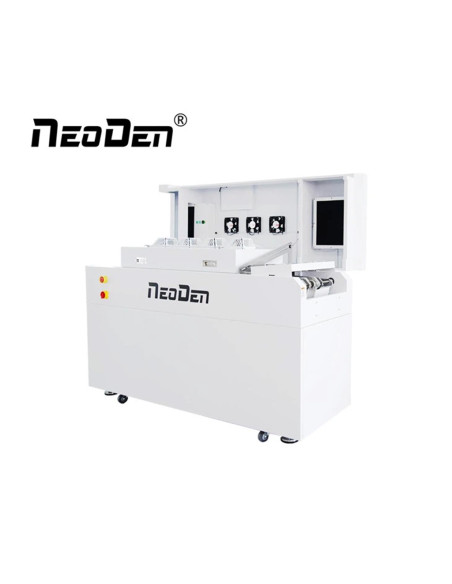

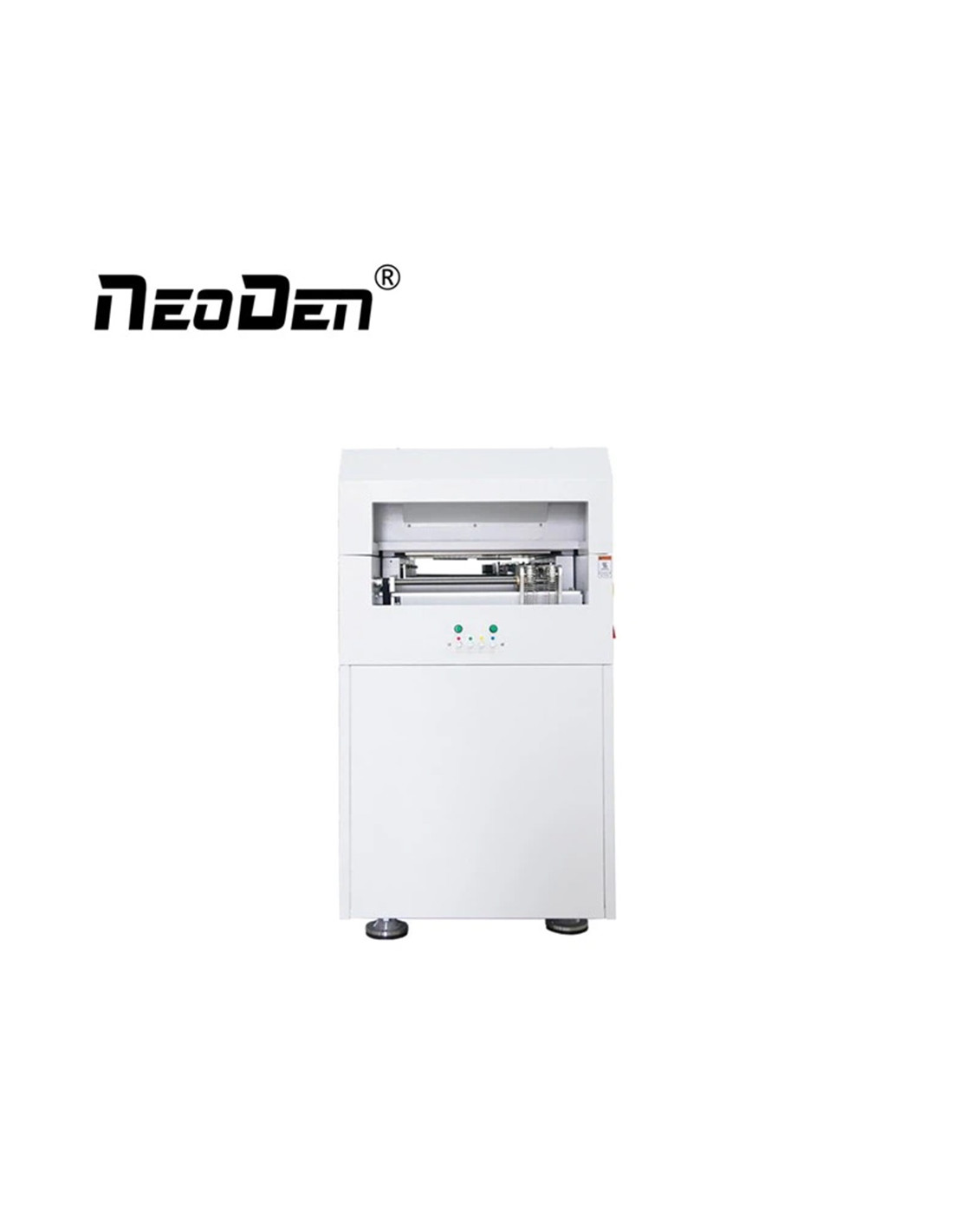

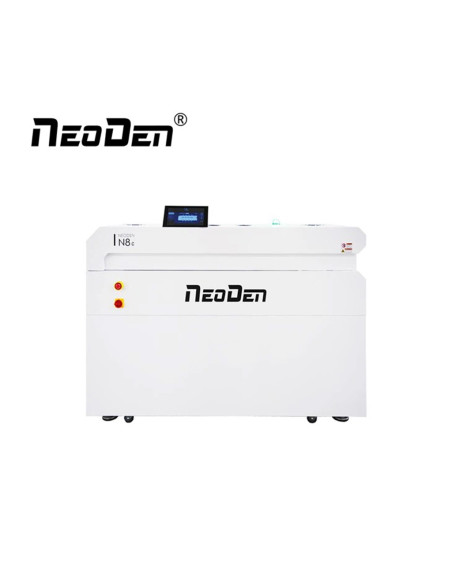

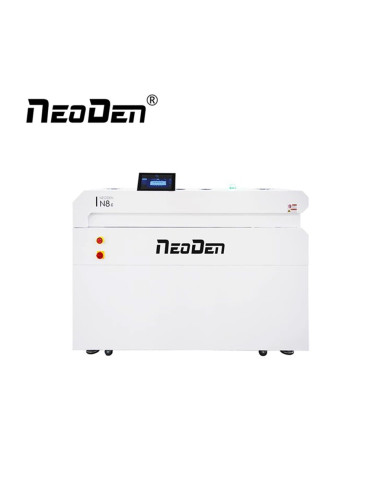

Continuous soldering furnace NEODEN IN8C

Continuous soldering furnace NEODEN IN8C

Reference: NEODEN-IN8C

delivery 11-20 days

179,900.00 CZK

Tax excluded / pc

217,679.00 CZK Tax included

Request a Quote →

Furnace type:

Interim

Heating type:

Conventional heating

Maximum PCB size:

330 mm (max. width)

Supply voltage:

230 V

Number of zones:

Dimensions:

1660 x 607 x 1075 mm

Starting power:

3600 W

Operating power:

1500 W

Weight:

200 kg

Furnace size without stand:

1660 (L) x 612 (W) x 1075 (H)

Max. height of components:

30 mm up, 20 mm down

Conveyor speed:

50 - 600 mm/min

Warm-up time:

20 - 30 min

Description

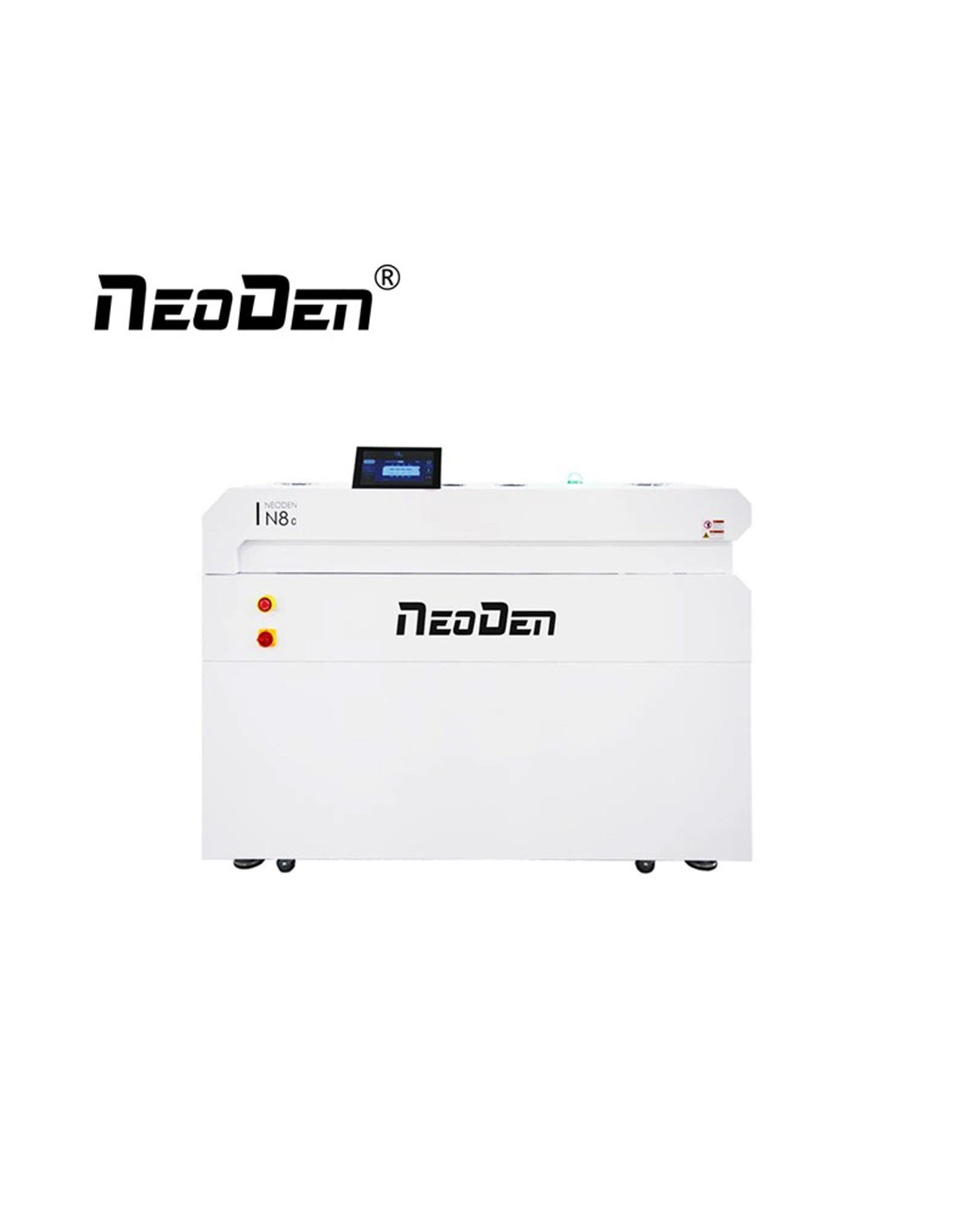

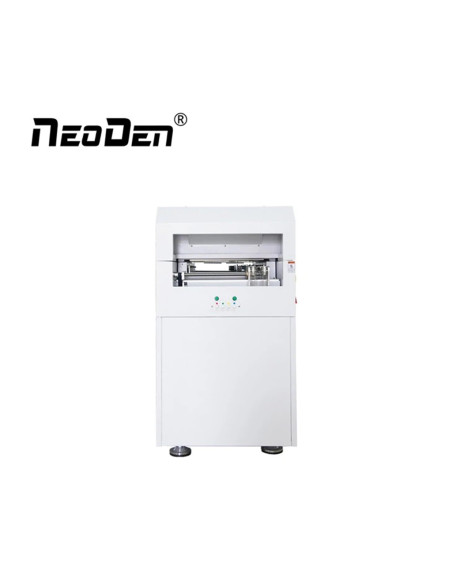

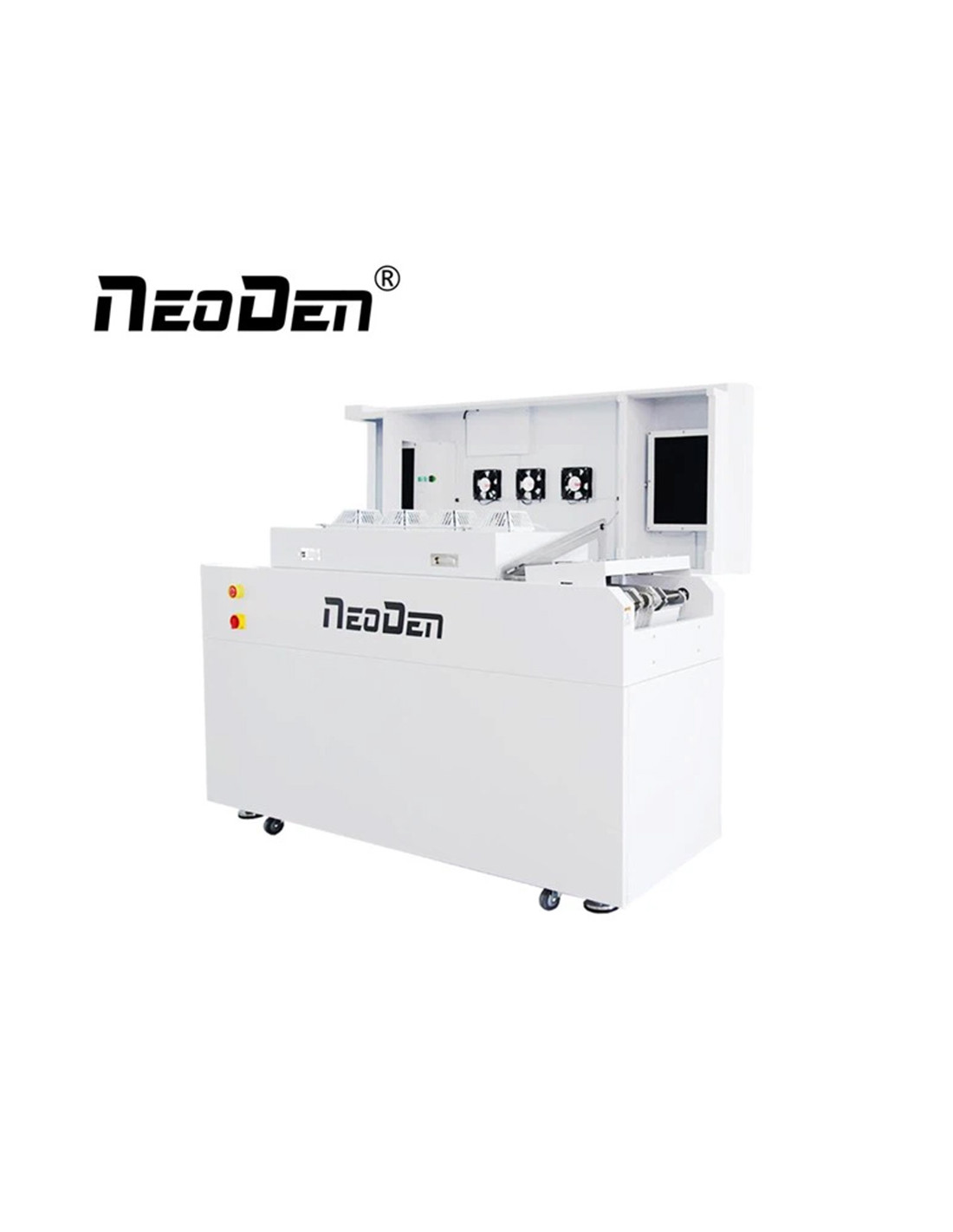

NEODEN IN8 is a new intelligent reflow soldering furnace. It is environmentally friendly and has stable performance. The soldering furnace uses a patented heating system of "PCB heating with uniform temperature" with excellent soldering performance.

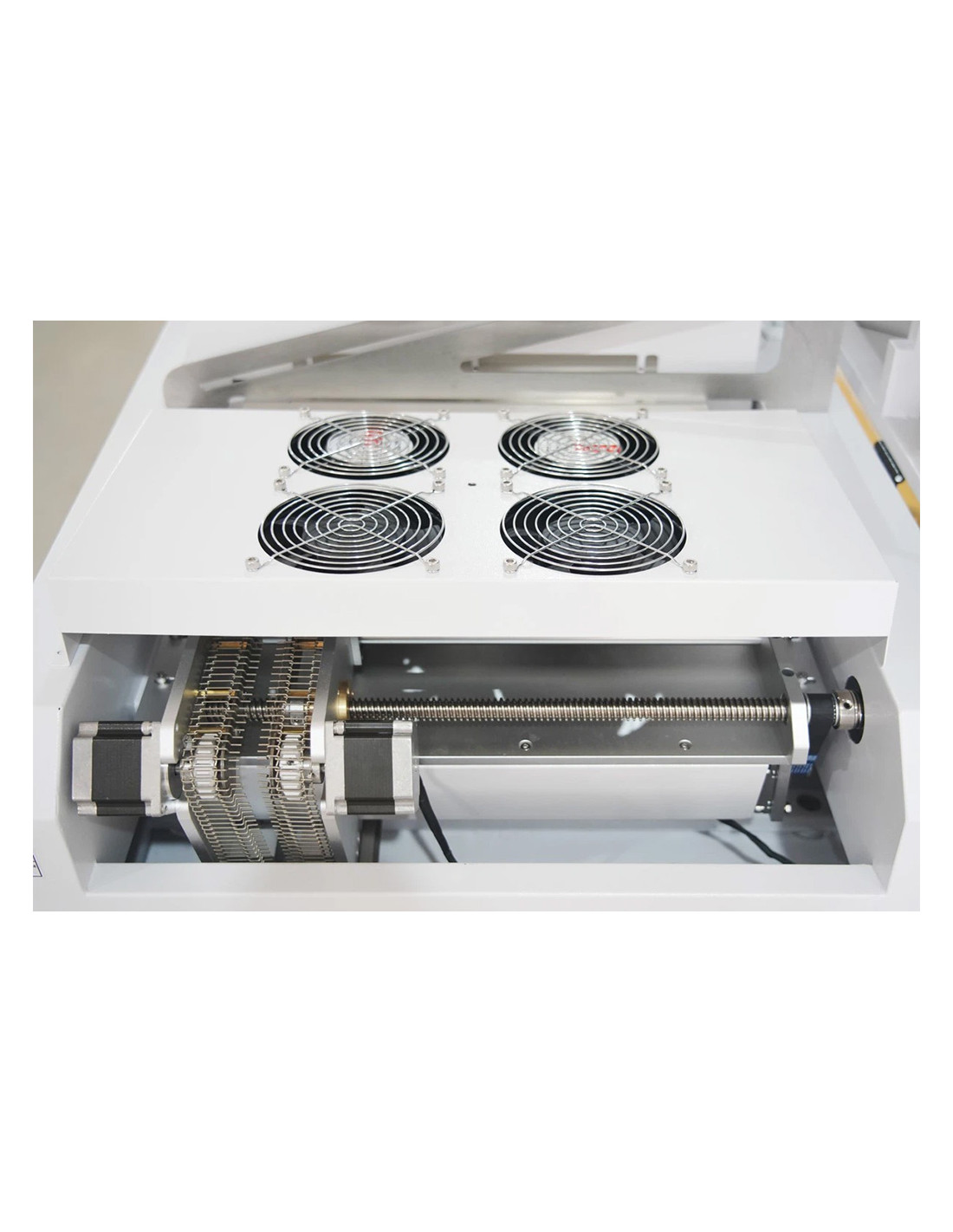

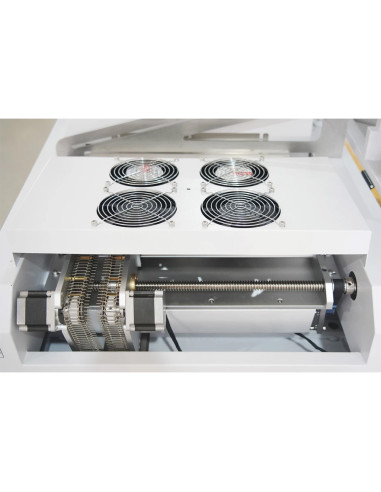

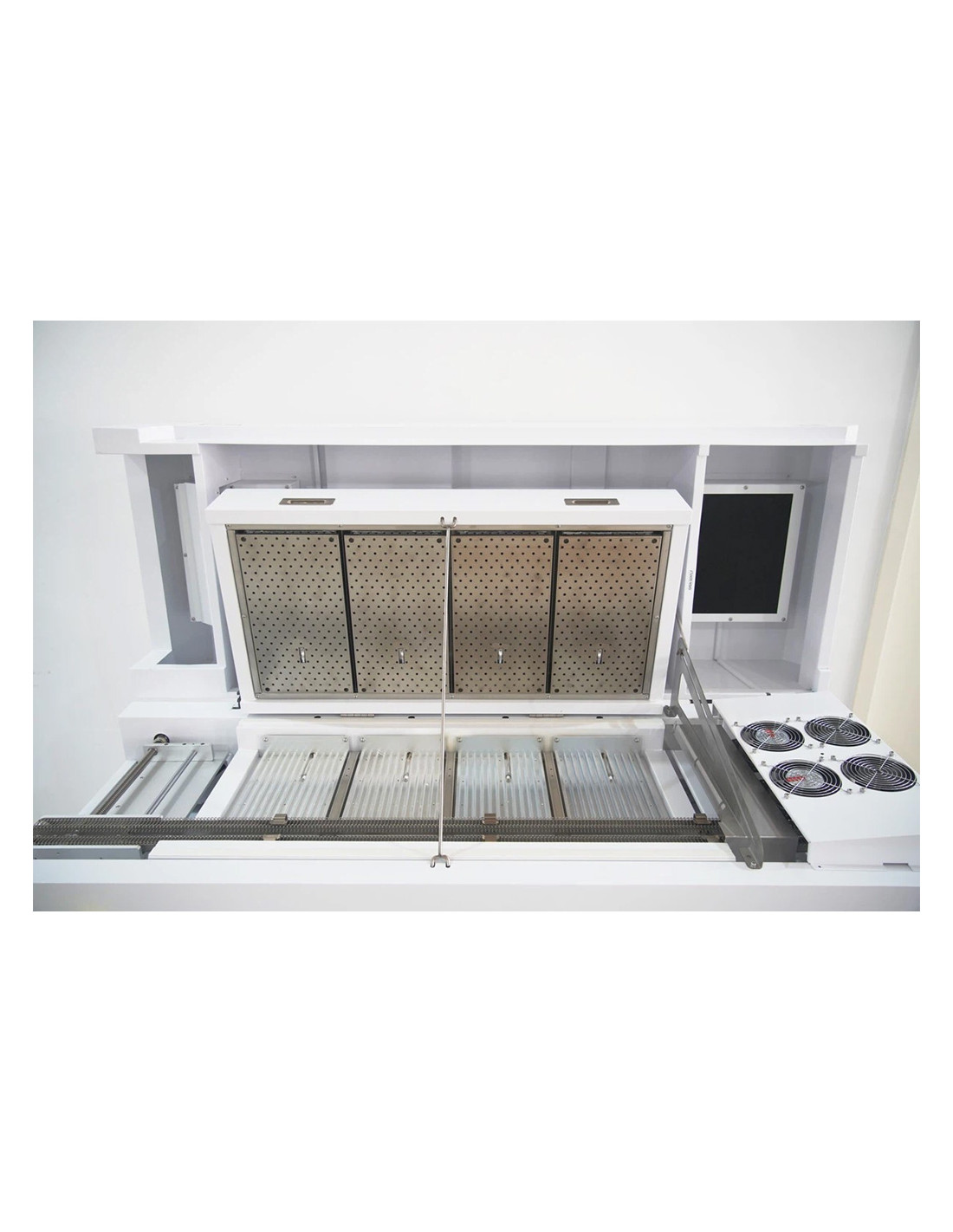

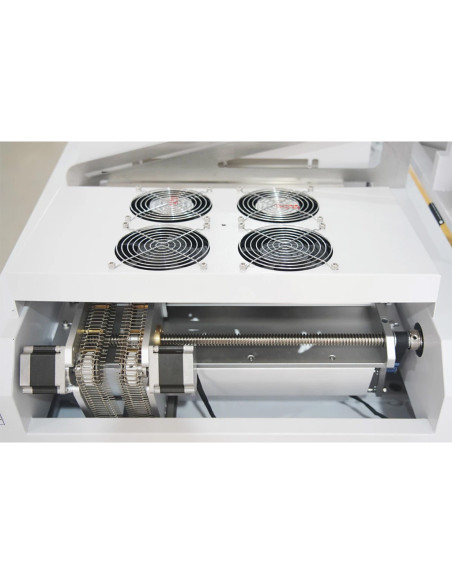

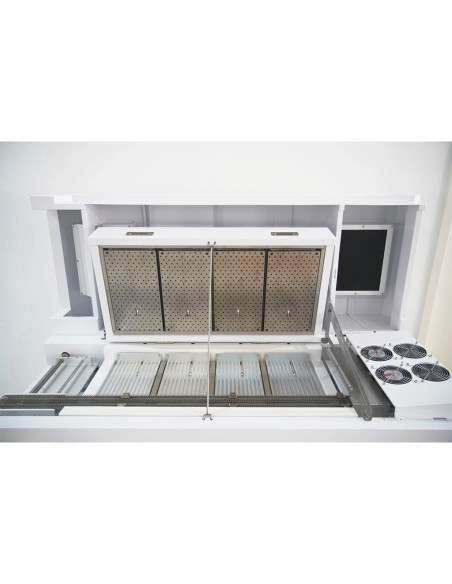

8 temperature zones (4x bottom + 4x top) and one aftercooling zone with four fans.

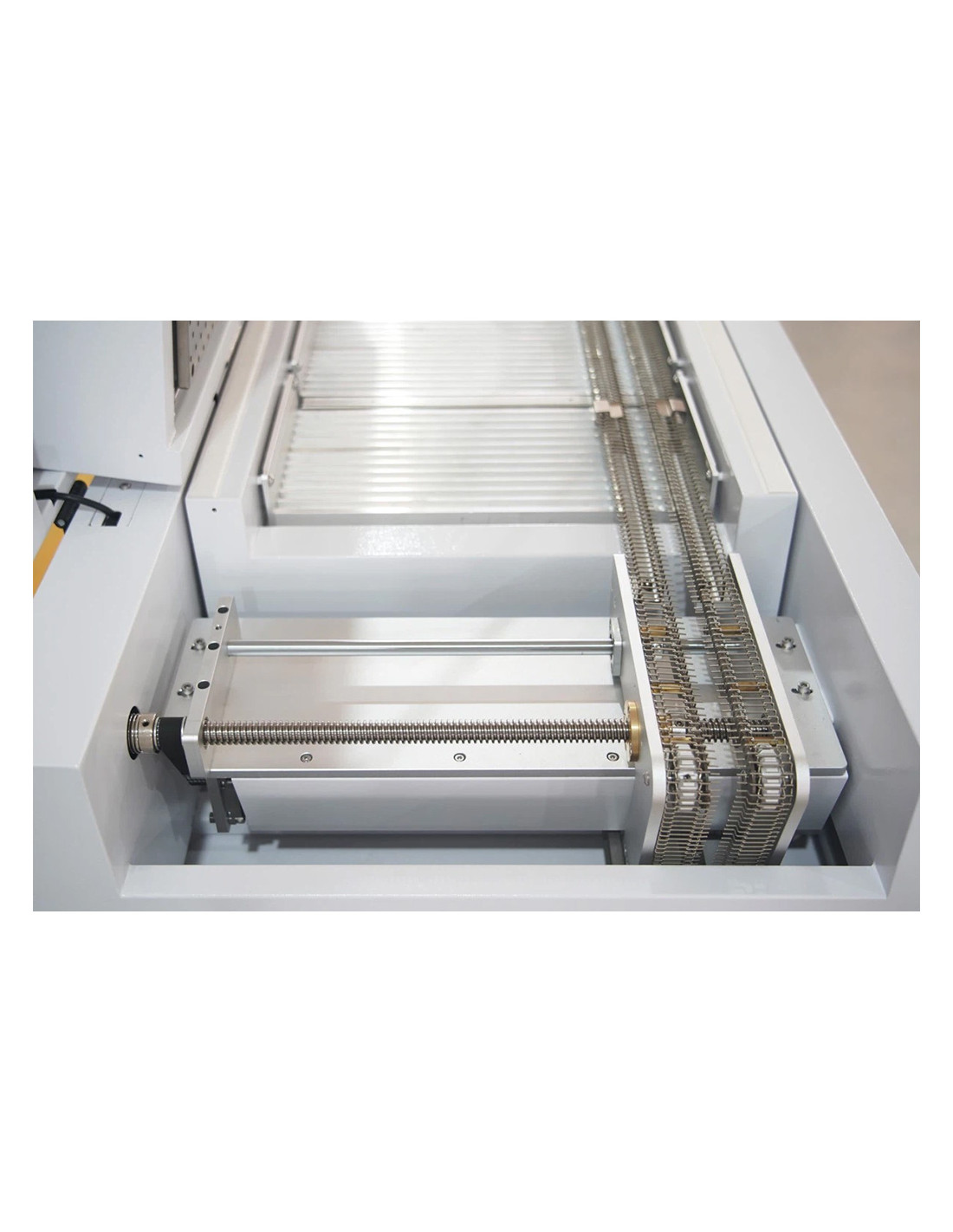

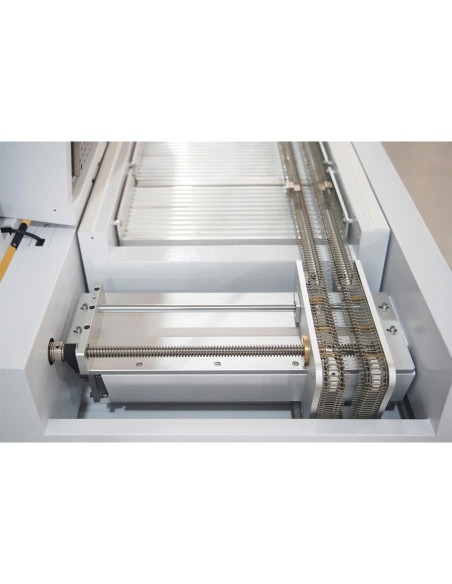

Two narrow wire conveyors are mounted on a helix which can adjust the pitch. This solution ensures low heat loss, long life and maintenance-free operation.

NSK hot air fans from Japan and Swiss heating elements are used in the furnace, which guarantees durability and stable performance.
