NEODEN Prototype SMT Line—Limited-time offer with a 10% discount!!!

A complete, compact, and highly efficient solution for automatic printed circuit board assembly.

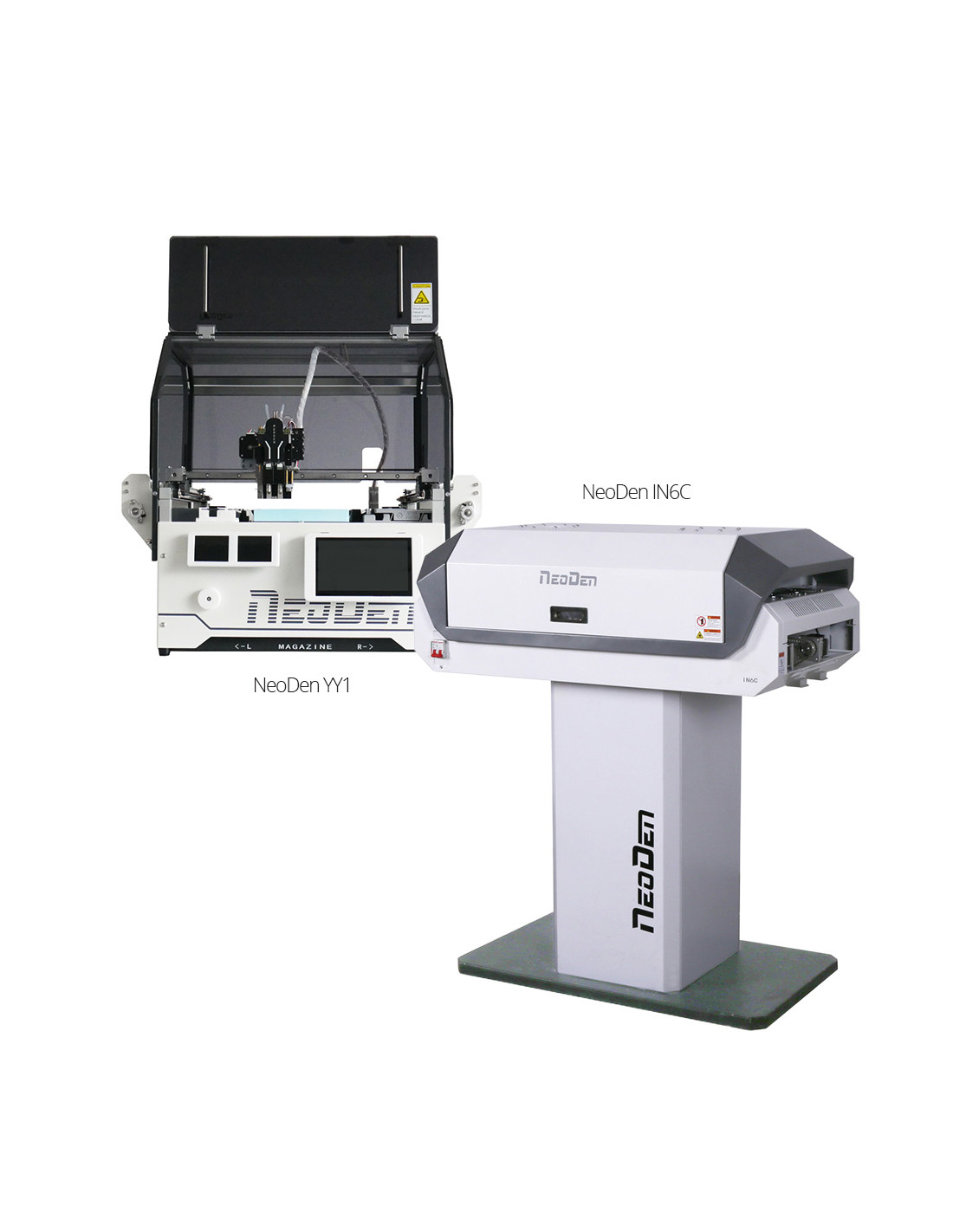

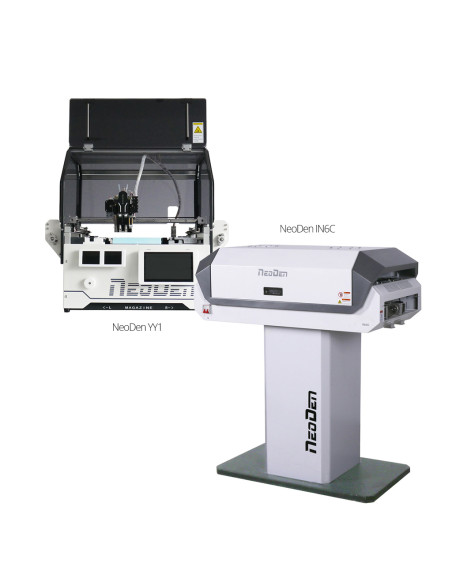

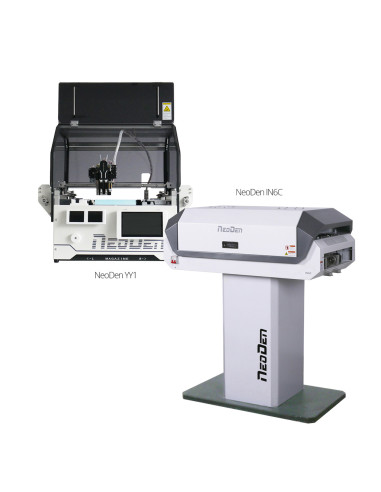

Are you looking for a way to assemble prototypes or small batches of printed circuit boards quickly, accurately, and without relying on external suppliers? This perfectly matched set of the NeoDen YY1 placement machine and the NeoDen IN6C reflow oven gives you full control over the entire SMT assembly process.

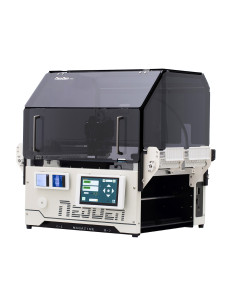

NeoDen YY1 Placement Machine = Smart flexibility for both prototypes and series production.
The NeoDen YY1 redefines the category of compact placement machines. It is designed specifically for developers, laboratories, and flexible manufacturing operations that require quick setup changes and high precision.

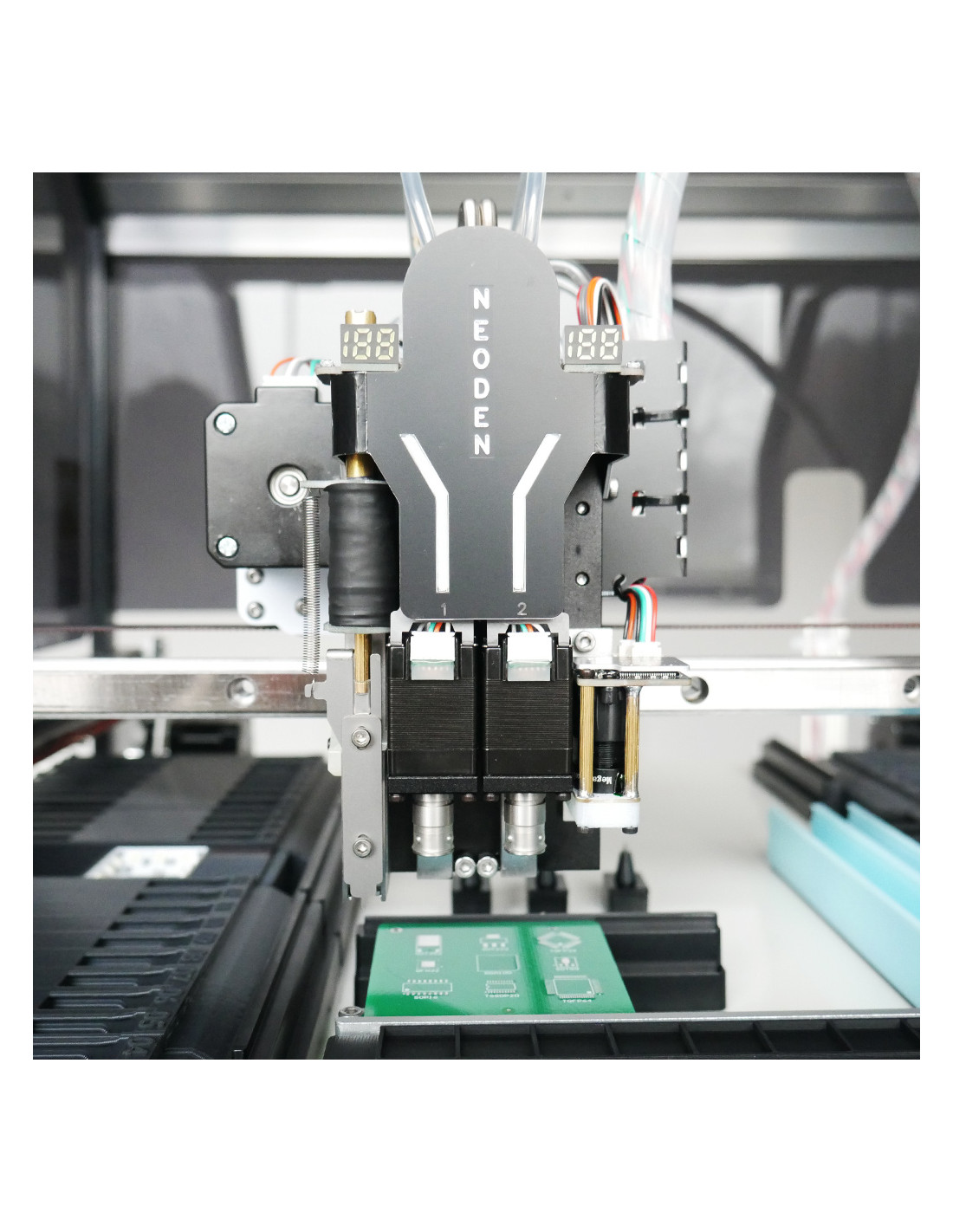

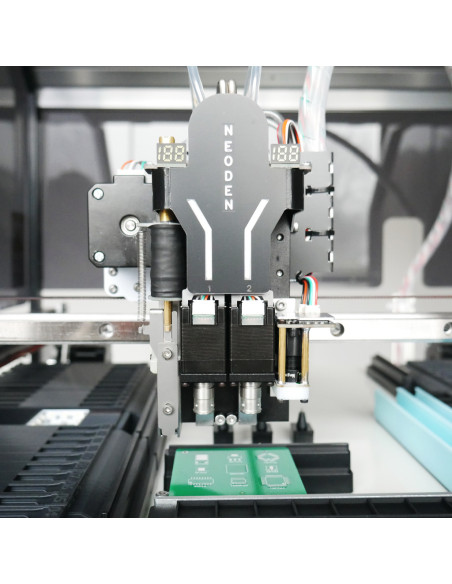

• Camera-based centering system: Two independent, high-resolution cameras monitor and center components in real time before placement, ensuring perfect accuracy even for 0402-type packages or ICs.

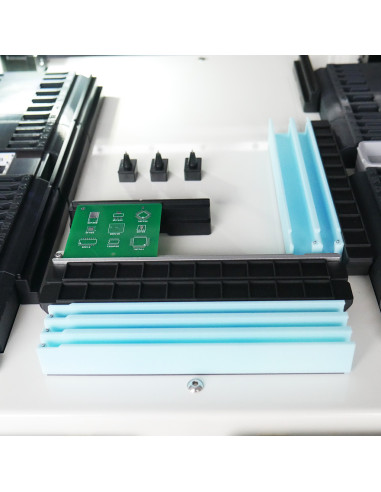

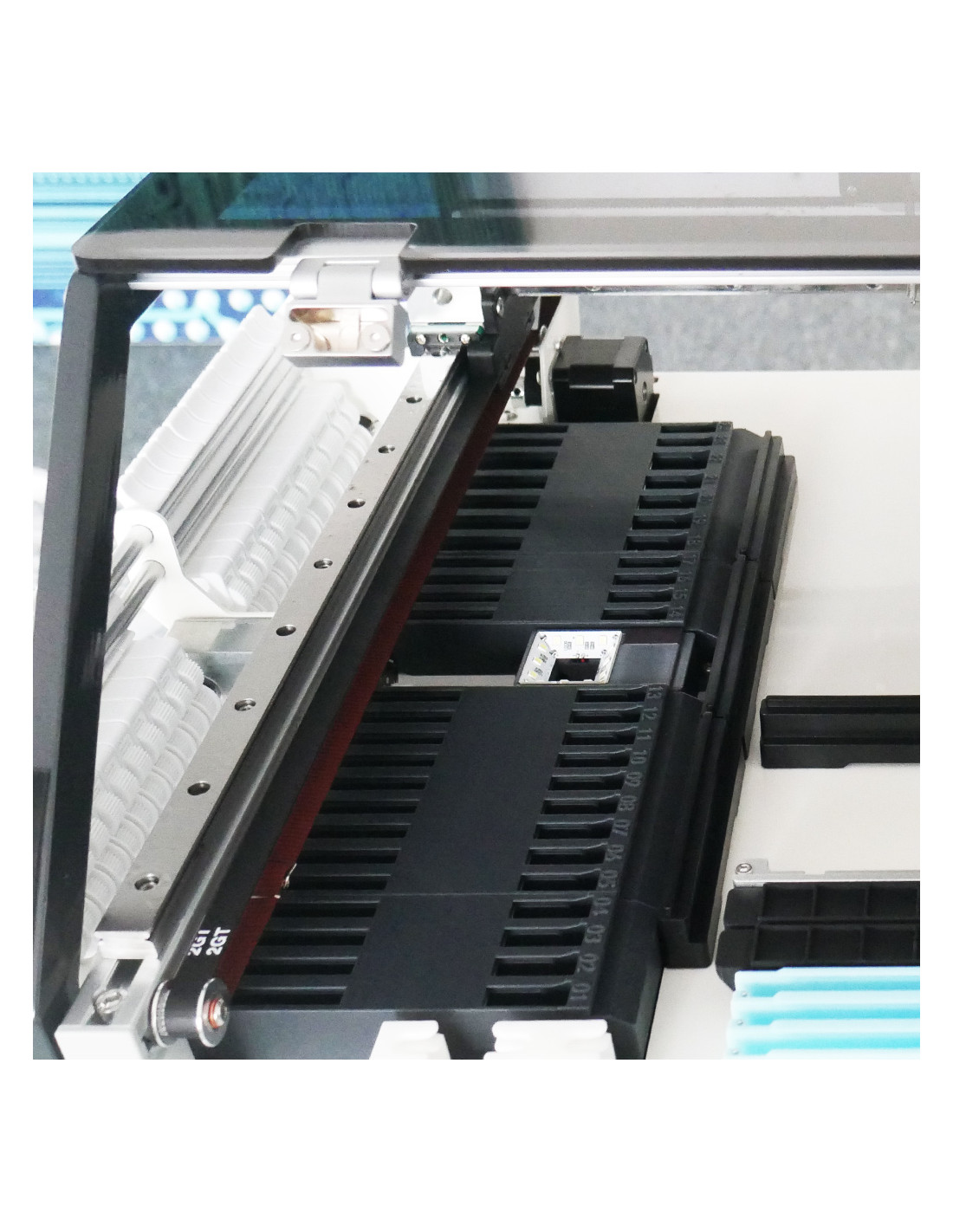

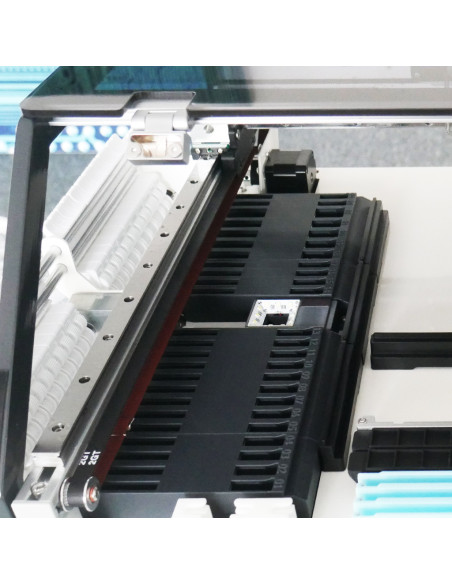

• Integrated feeders: A special design allows for easy loading of component tapes and efficient handling of individual ICs or cut tapes.

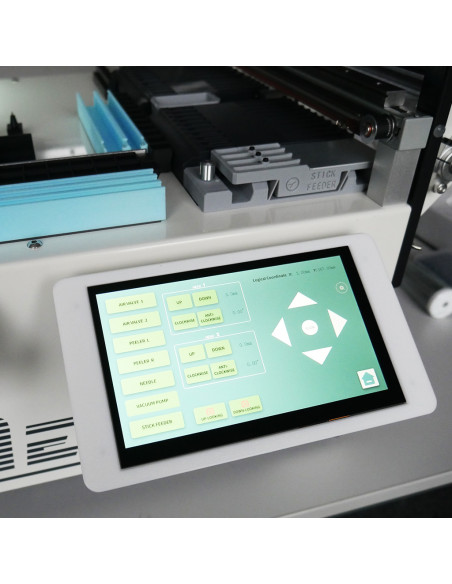

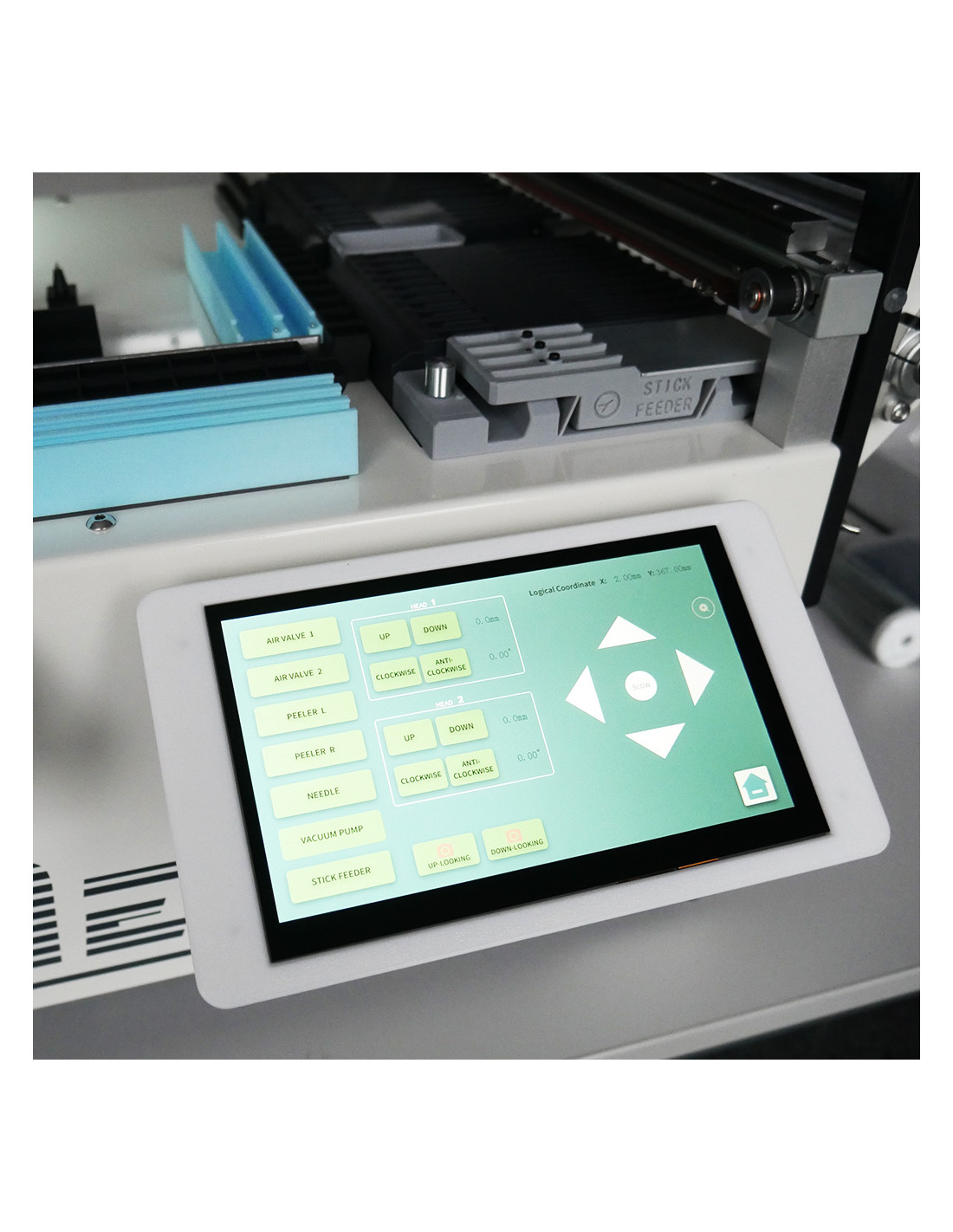

• Intuitive touchscreen interface: User-friendly software running on an integrated Linux system. Programming takes just a few minutes—either by directly importing coordinates from CAD programs (CSV/TXT) or through manual teaching.
• Nozzle module: Automatic nozzle change (up to 3 positions) saves time and enables seamless placement of diverse components in a single cycle.

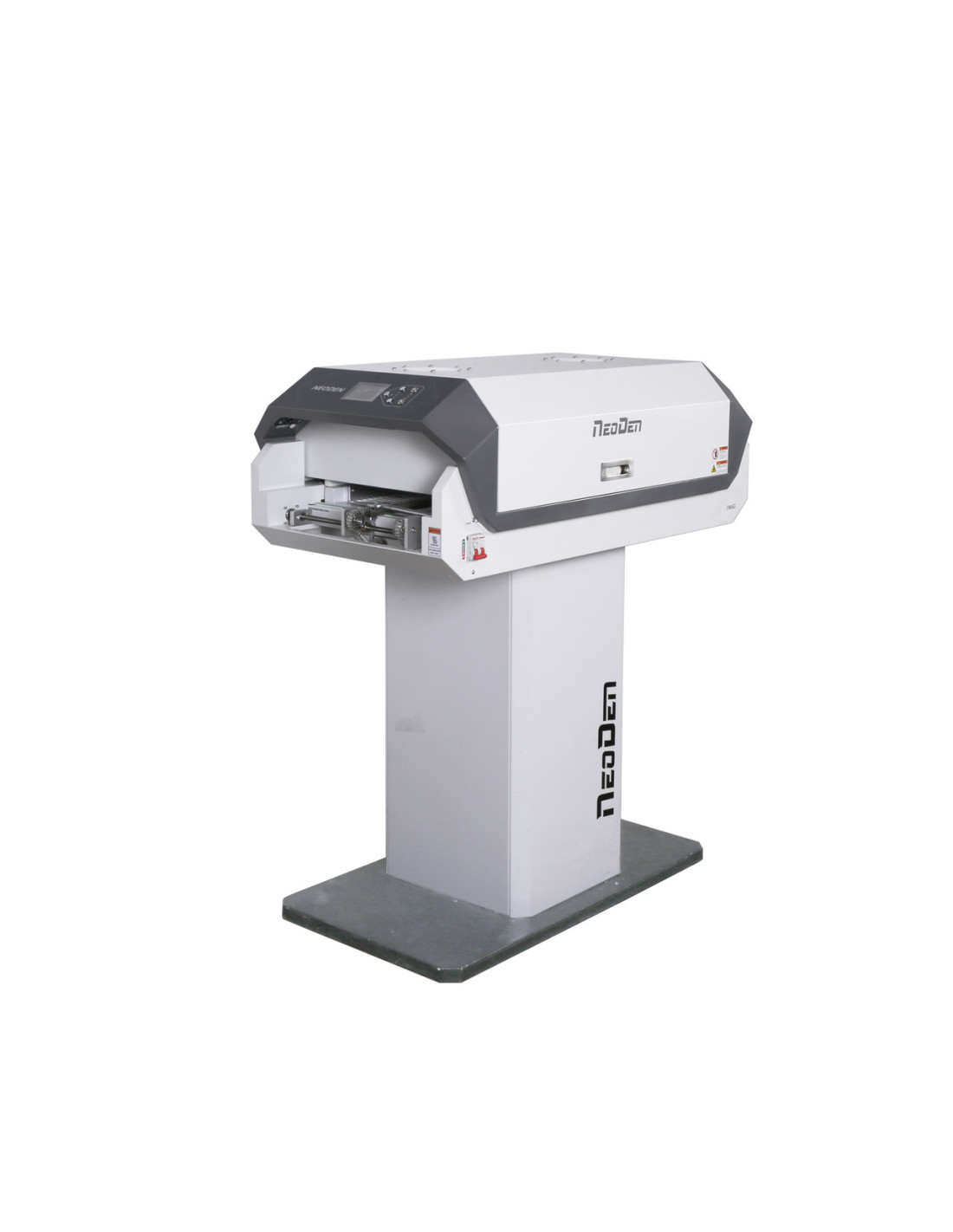

NeoDen IN6C Reflow Oven = Professional and eco-friendly soldering with full control
The NeoDen IN6C reflow oven ensures 100% reliable and uniform reflow of solder paste. Thanks to advanced hot-air heating technology, it is the ideal partner for the YY1 automated system.
• 6 heating zones: Precise temperature profile control ensures that sensitive components are not exposed to thermal shock and that solder joints are perfectly clean.
• Integrated smoke filtration system: The oven features a built-in filter that effectively captures harmful fumes from soldering. This allows you to safely operate it in an office or laboratory without the need for external ventilation.

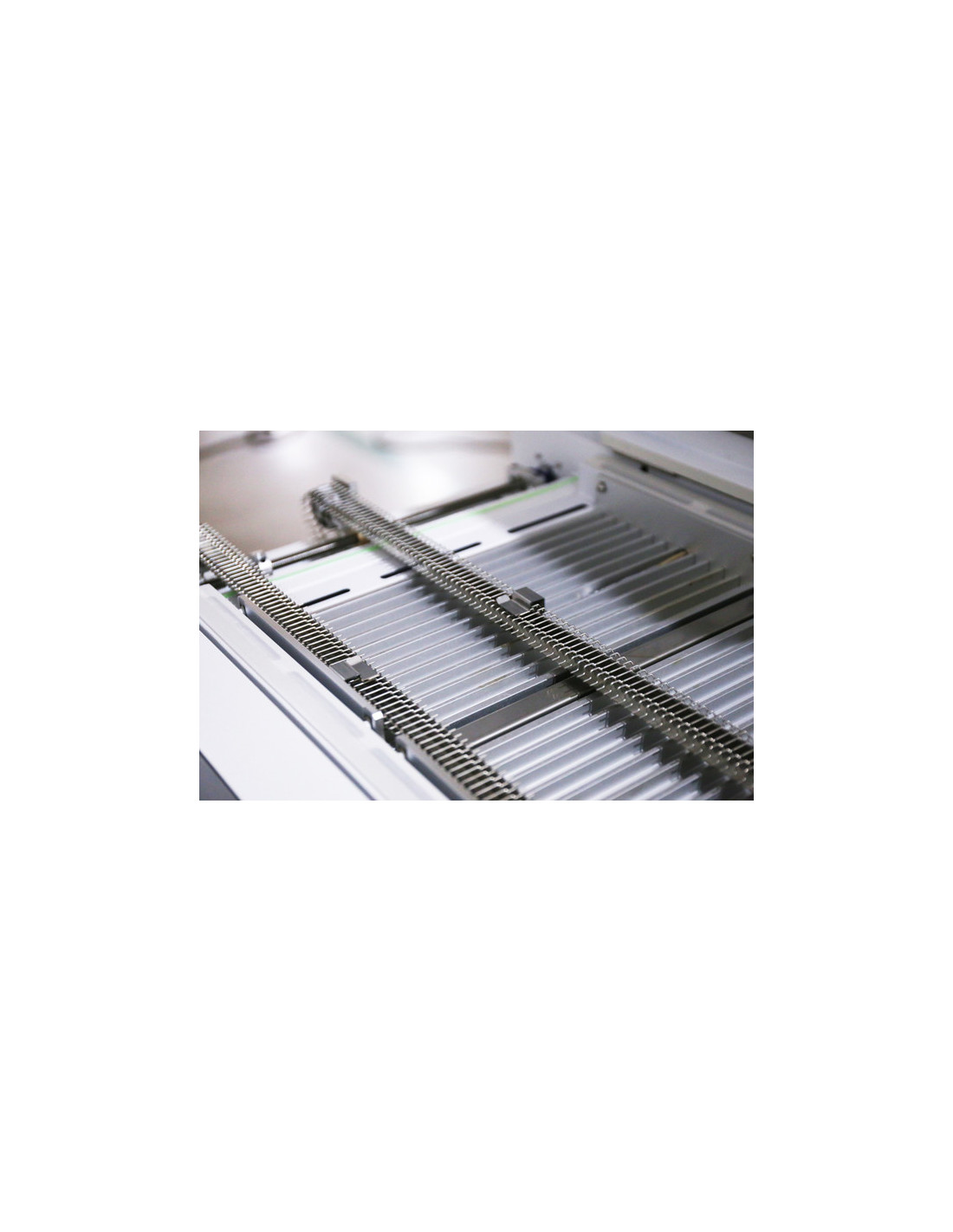

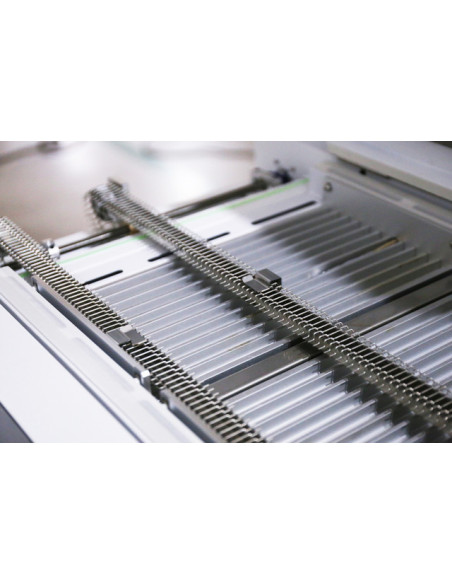

• Continuous chain conveyor: The smooth movement and adjustable conveyor width prevent any vibrations that could dislodge freshly mounted components.

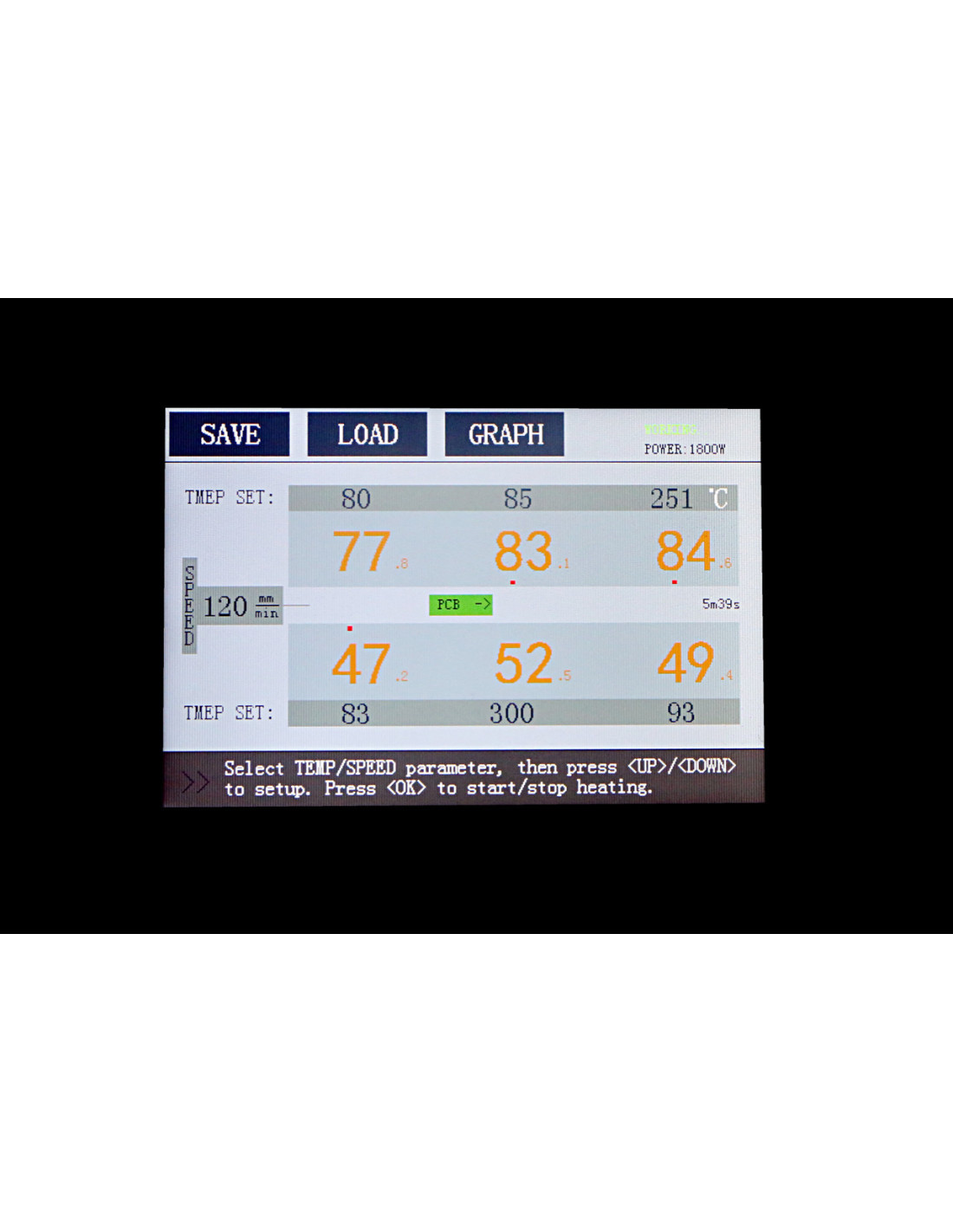

• Graphical display of the temperature curve: On the display, you can monitor the current temperature profile in individual zones in real time and fine-tune profiles for both lead-free and lead-based soldering.

Key benefits of the YY1 + IN6C set:
- Benefits for your workshop and maximum self-sufficiency
- You can handle prototype development and series assembly under one roof in a single day
- Low operating costs
- Both machines are energy-efficient and powered by a standard 230 V mains supply
- Compact dimensions. The YY1 can be placed on a standard workbench, and the IN6C has an integrated stand.
- Fast return on investment. You’ll eliminate setup fees charged by external assembly companies and shorten time-to-market.

Who is this set intended for?
R&D centers and hardware startups - Manufacturers of IoT devices and embedded systems - Smaller contract electronics manufacturers - Technical universities and laboratories

Are you interested in a machine demonstration, a price quote, or a consultation? Contact us. As an authorized distributor, we provide full technical support, warranty and post-warranty service, and professional operator training.
