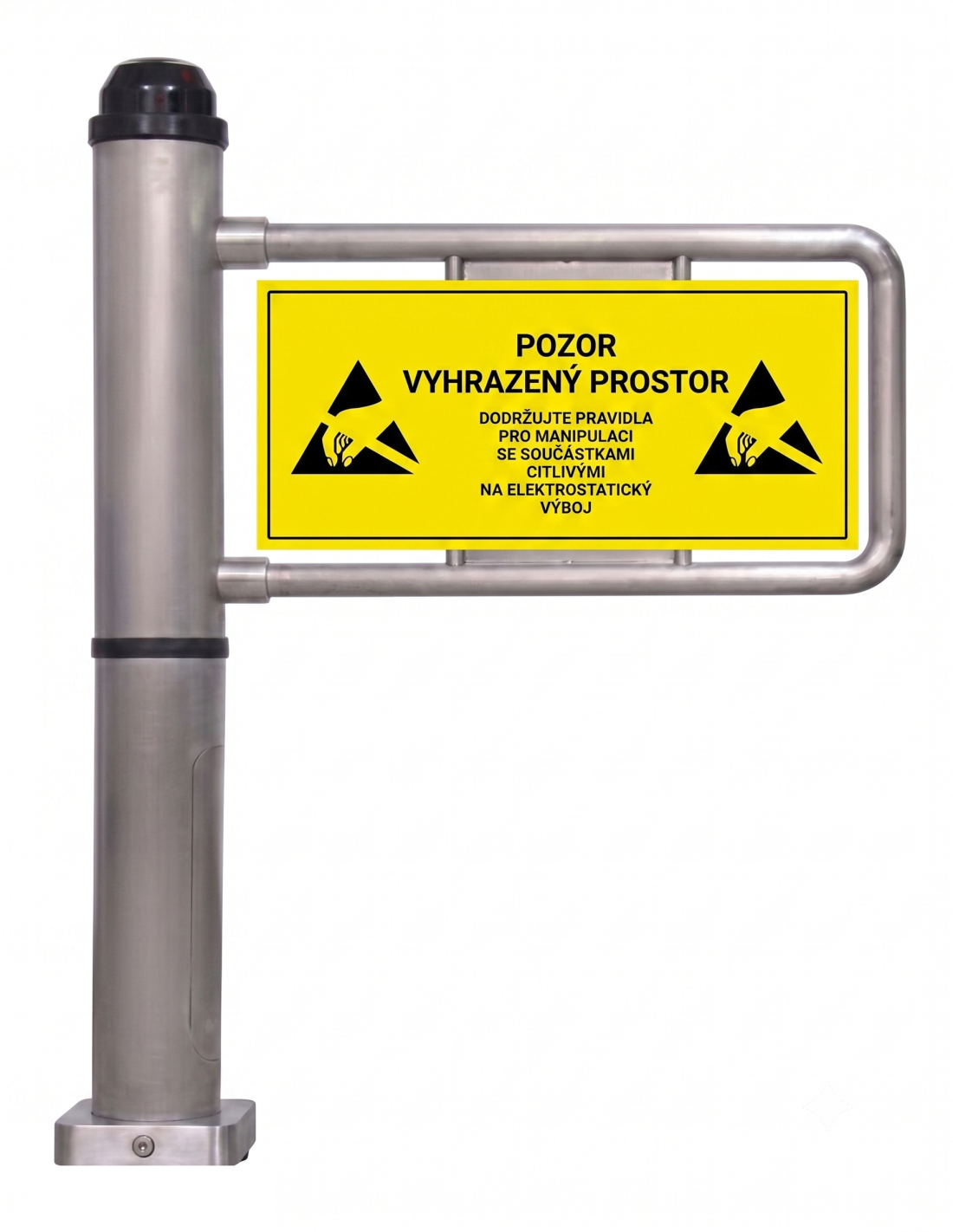

Fully Automatic Motorized Gate

An automatic motorized gate designed to direct and control the flow of people in entry areas, at reception desks, or in transit zones. The device is equipped with a reliable motor drive (24 VDC), a stainless steel construction, and a control unit that allows integration with external access control systems (card readers, time-and-attendance systems, remote controls, or an operator button).

Key Features and Functions

• Fully automatic operation: Quiet and smooth operation with a 24 VDC motor drive. The gate opens automatically upon receiving a pulse signal.
• Passage time limit: If a person does not pass through within the set time, the gate automatically closes.
• Safety and detection: Detection of unauthorized passage, alarm in case of attempted forced entry, and anti-pinch protection.
• Emergency Mode (Anti-Panic): The gate automatically opens when the emergency button is pressed or in the event of a power failure.
• Stainless Steel Construction: Both the gate body and wing are made of AISI 304 stainless steel for a long service life.

Package Contents (Scope of Delivery)

• Fully automatic motorized gate (AISI 304)
• Integrated control unit
• Power supply (230 V AC / 24 V DC)
• Connection cables
• Floor anchoring hardware

Optional accessories

• Remote control / desktop control button
• RFID access card readers
• Stainless steel connecting guardrails
• Professional on-site installation and commissioning

P2J Technology s.r.o.

Product Data Sheet

Fully Automatic Motorized Gate

An automatic motorized gate designed to direct and control the flow of people in entry areas, at reception desks, or in transit zones. The device is equipped with a reliable motorized drive (24 VDC), a stainless steel construction, and a control unit that allows integration with external access control systems (card readers, time-and-attendance systems, remote controls, or an operator button). Key Features and Functions of the Fully Automatic Operation: Quiet and smooth operation with a 24 VDC motor drive. The gate opens automatically upon receiving a pulse signal. Passage Time Limit: If a person does not pass through within the set time, the gate closes automatically. Safety and Detection: Unauthorized passage detection, alarm upon attempted forced entry, and anti-pinch protection. Emergency Mode (Anti-Panic): The gate automatically opens when the emergency button is pressed or in the event of a power failure. Stainless Steel Construction: Both the gate body and wing are made of AISI 304 stainless steel for a long service life.

Technical Specifications

Emergency Function

Supply Voltage	230 V AC / 50 Hz
Motor Voltage / Drive	24 V DC (motor)
Construction material	AISI 304 stainless steel
Goalpost diameter	114.3 mm
Goal frame height	990 mm
Door leaf clearance width	Up to 900 mm as standard (barrier-free passage)
Unit weight	30 kg
Operating environment	Indoor (Indoors)
Control Interface	Contactless relay input (NO/NC), RS485 interface
	Anti-panic automatic opening in the event of a power failure

Package Contents (Scope of Delivery) Fully automatic motorized gate (AISI 304) Integrated control unit Power supply (230 V AC / 24 V DC) Connection cables Floor anchoring hardware

Optional accessories Remote control / desktop control button RFID access card readers Stainless steel connecting guardrails Professional on-site installation and commissioning

P2J Technology s.r.o. Dolní Roveň 153, 533 71 Dolní Roveň Tel: +420 725 884 930

www.p2jtechnology.cz Entry systems and access control
