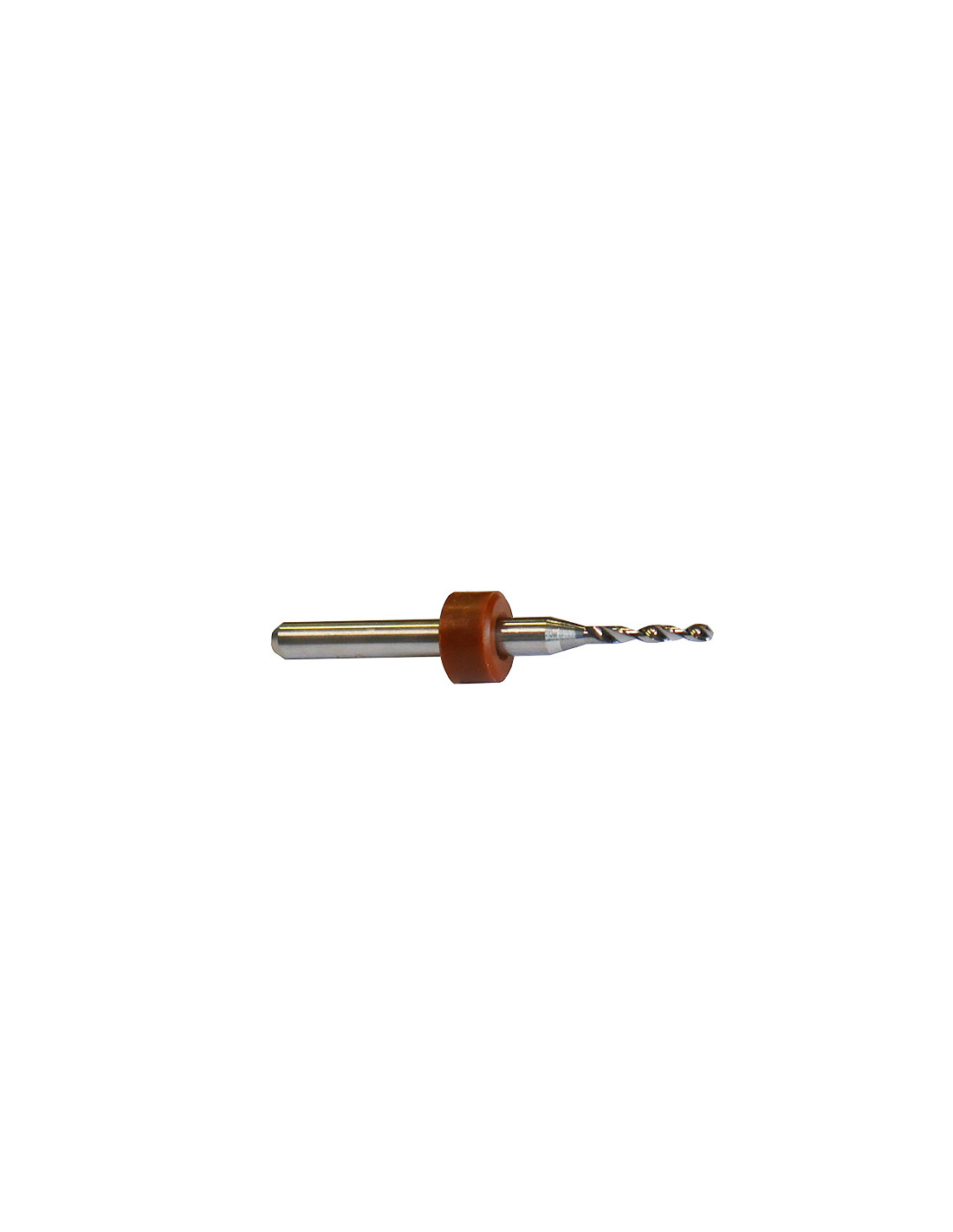

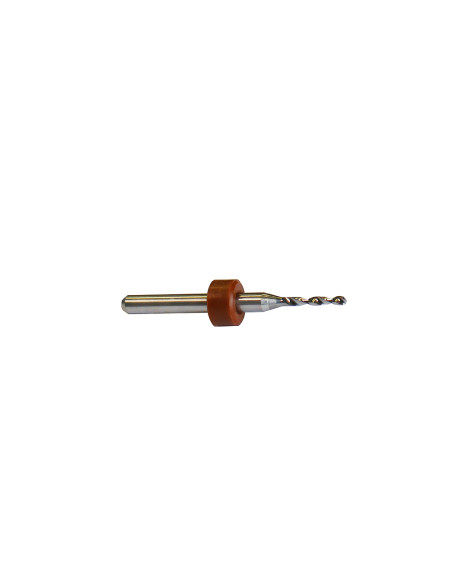

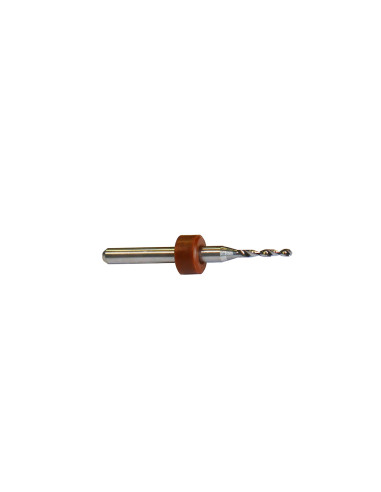

Drill bit 1,5mm
P2J-D-150a
MIPEC
Product features
1.5 cm
6 cm
1.5 cm
0.01 kg
Drill
1.5 mm
38 mm
3.175 mm
The 1.5mm drill bit is designed for drilling through holes with high positional accuracy and is particularly suitable for FR4 material.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 33000RPM
Feed rate: 2.7m/min
Stroke: 20m/min
*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
Advantages:
High wall surface quality.
High positional accuracy.
Efficient chip removal.
Recommended machining parameters:
Spindle speed: 33000RPM
Feed rate: 2.7m/min
Stroke: 20m/min
*Recommended parameters only provide a guide for optimizing feed rates and speeds on the user's side.
