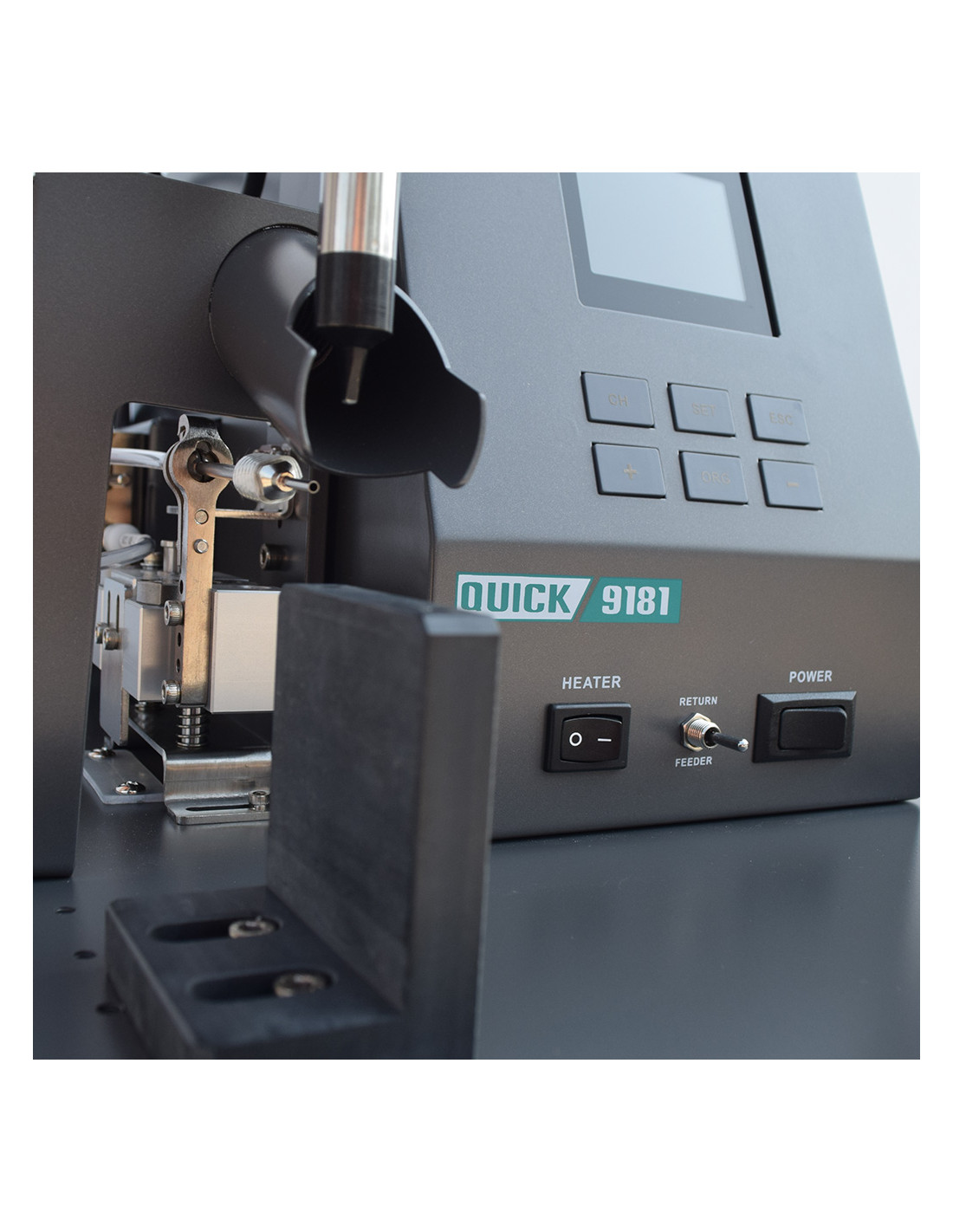

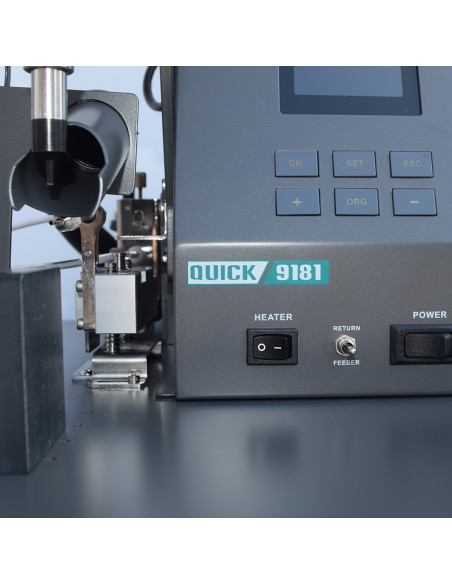

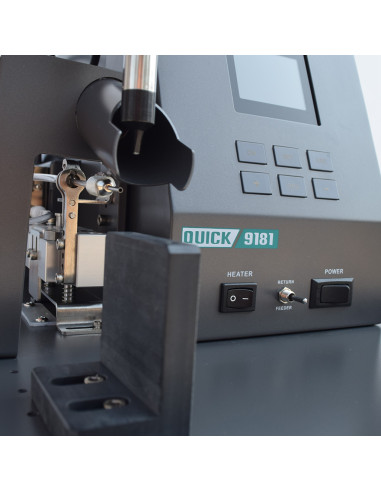

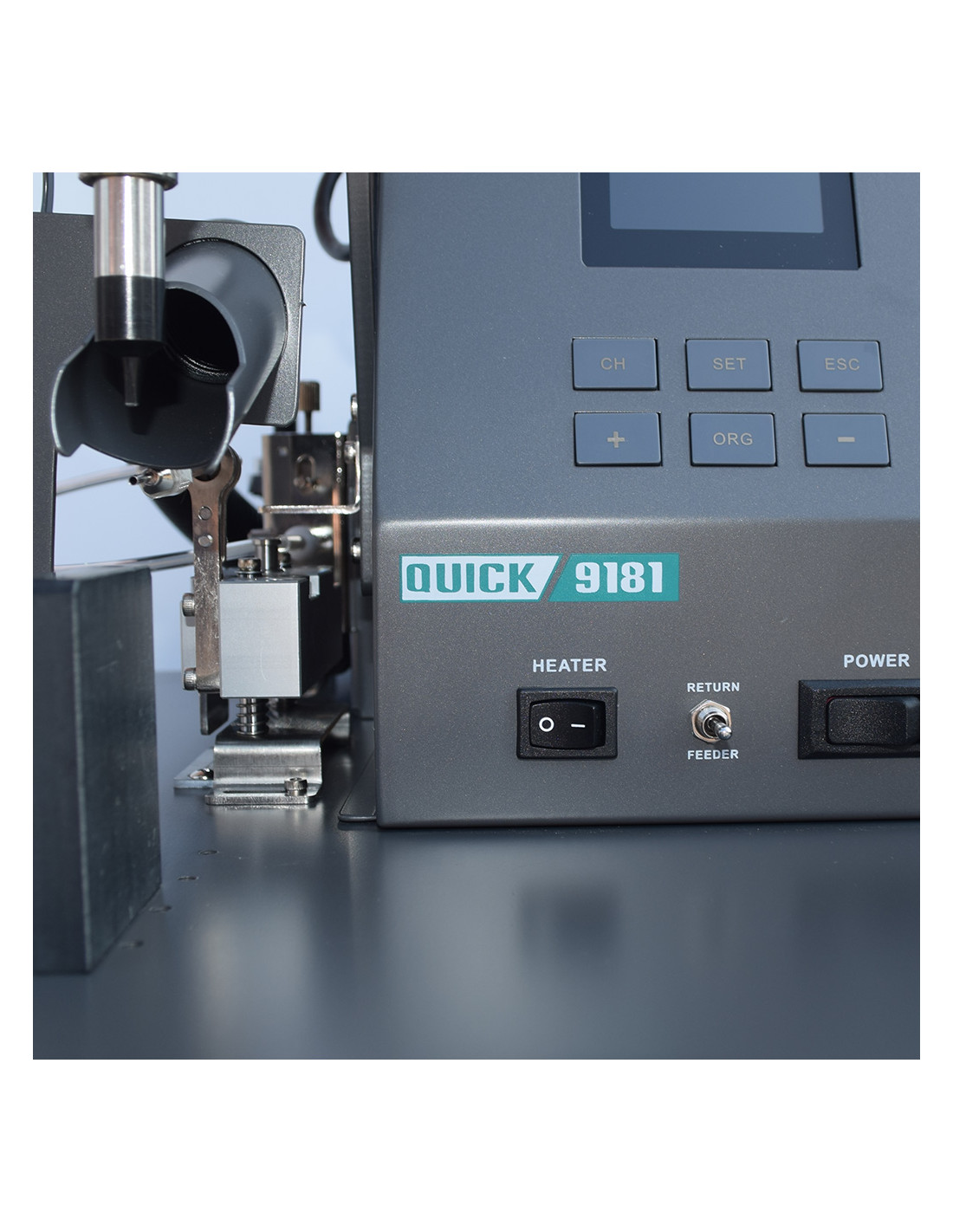

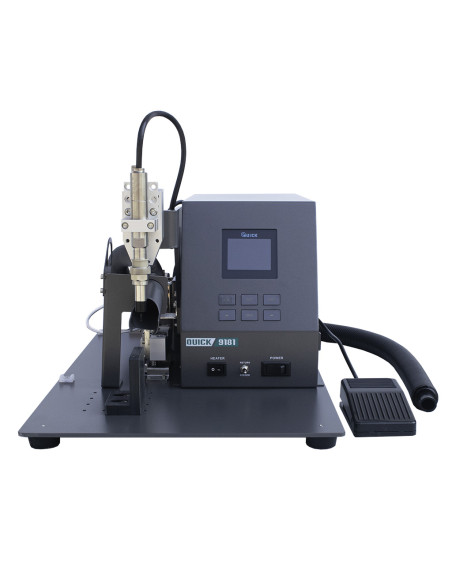

QUICK ET9181 - Single-axis soldering semi-automatic for precision manual applications

QUICK ET9181 - Single-axis soldering semi-automatic for precision manual applications

Reference: ET9181

Brand: QUICK

delivery 25-30 days

35,972.00 CZK

Tax excluded / pc

43,526.12 CZK Tax included

Dimensions:

285 x 420 x 265mm

Temperature range:

200°C - 550°C

Supply voltage:

230 V

Range of spikes:

911G

Power input:

280 W

Number of axes:

Z-axis rotation:

Description

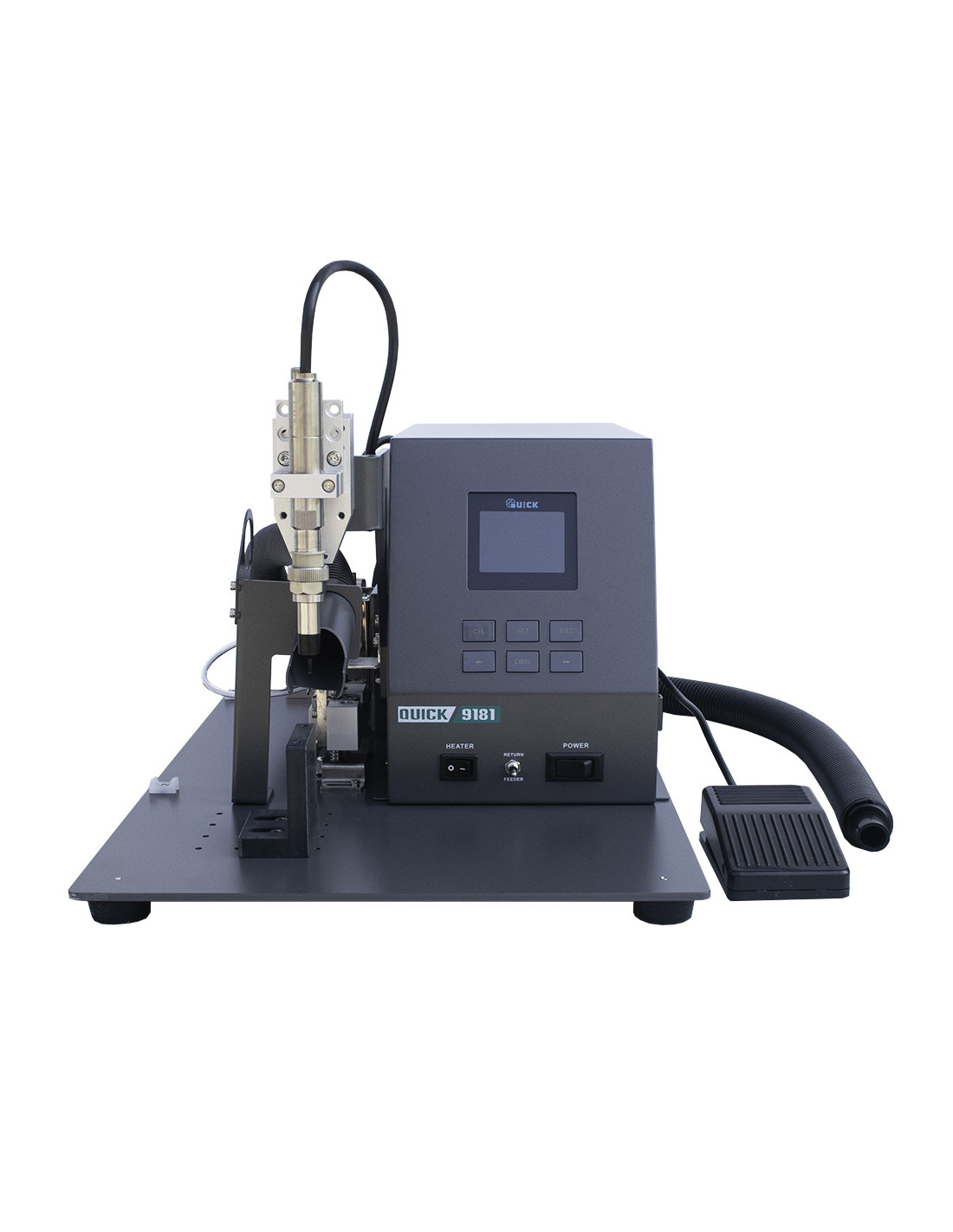

The QUICK ET9181 is a compact soldering semi-automatic designed for applications where stable, repeatable soldering is required without the need to hold the soldering handle. It enables efficient work when soldering wires, connectors, LED modules and other components, especially in small batch production, development or repair.

Technical parameters:

- Device dimensions: 285 × 420 × 265 mm
- Power supply: 230 V / 280 W
- Temperature range: 200 °C - 550 °C
- Movement: 1 axis (Z), controlled by stepper motor
- Tip type: QUICK 911G (robotic series)
- Solder feeder: automatic, standard for 1.0 mm wire
- Selectable diameters: 0.5 / 0.6 / 0.8 / 1.2 / 1.6 mm

Functional features:

- Automated vertical tip movement with adjustable height and contact time
- Digital temperature control with fine adjustment

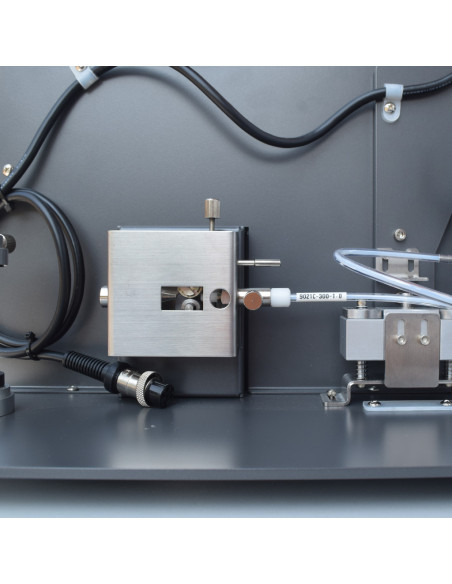

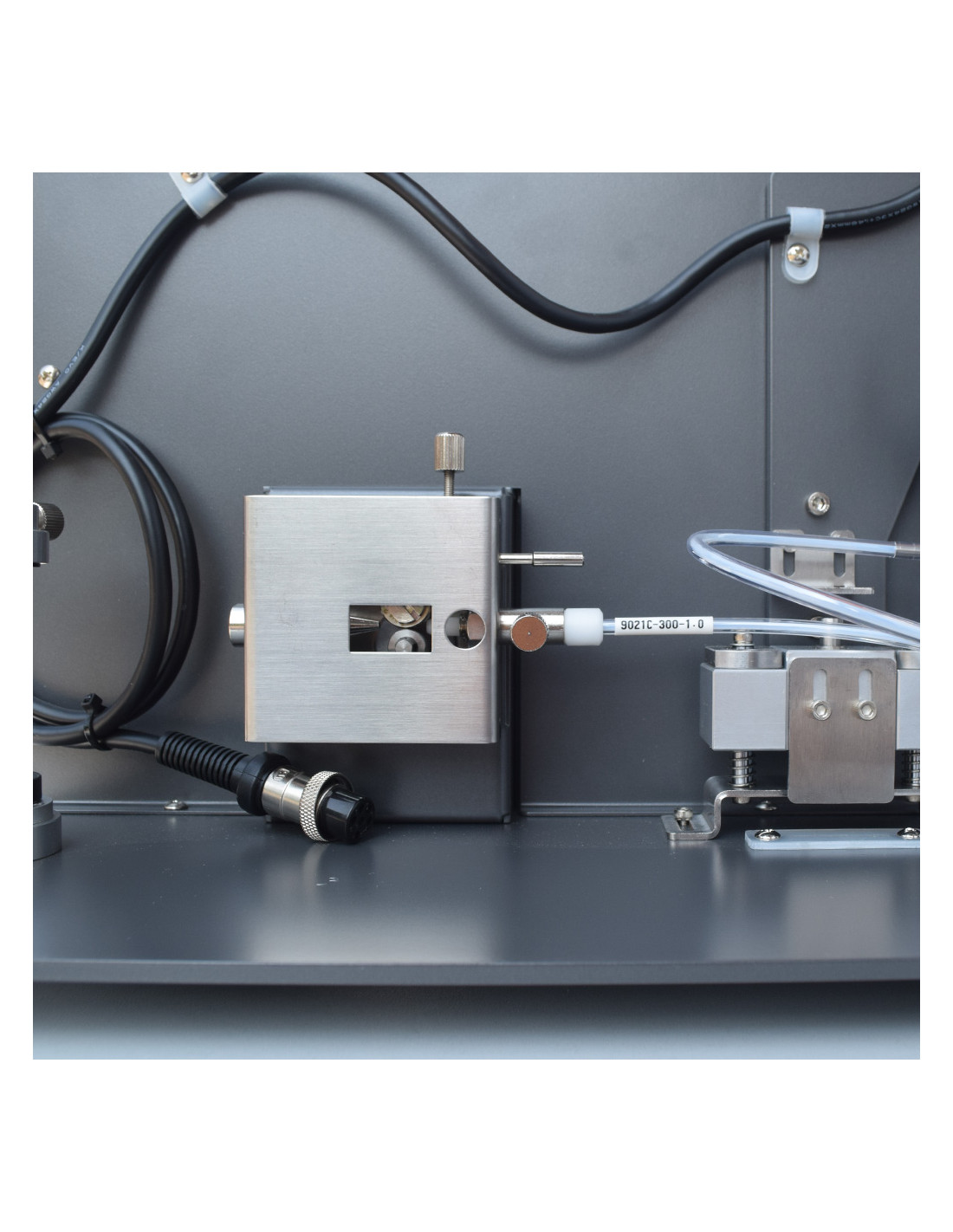

- Integrated solder feeder with adjustable speed and dispensing
- Foot pedal control - no programming or compressed air connection required

Application benefits:

- Ensures consistent joint quality without relying on manual toolholding
- Allows the operator to focus on positioning components while soldering automatically
- Suitable for applications where accuracy, repeatability and time savings are required
- Easy integration into the work environment without the need for complex jigs
