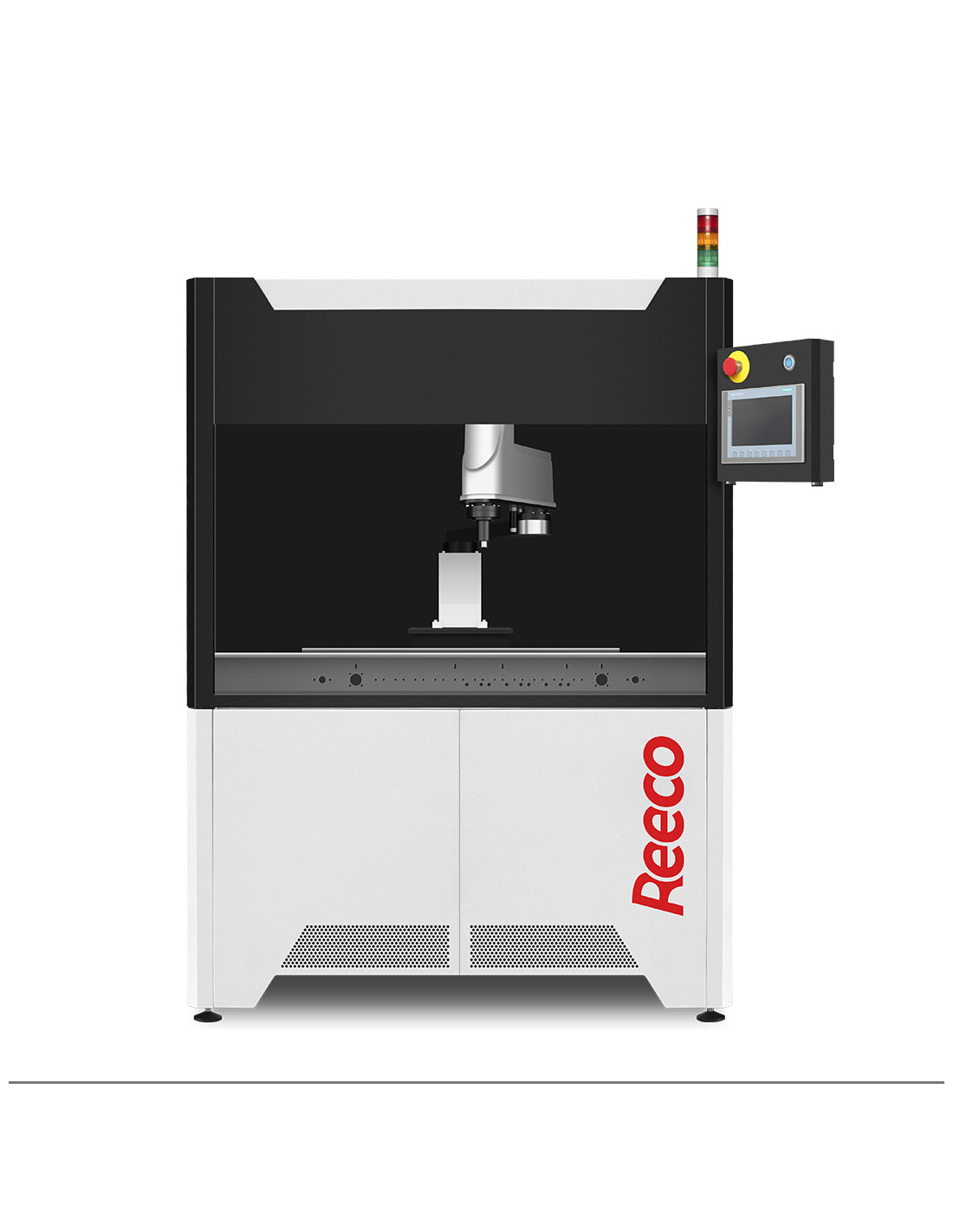

Reeco RE-2100 soldering robot with conveyor

The Reeco RE-2100 soldering robot with conveyor is designed for precise and repetitive soldering of pin components. Thanks to the integrated conveyor and SMEMA interface, it can be integrated into the production line.

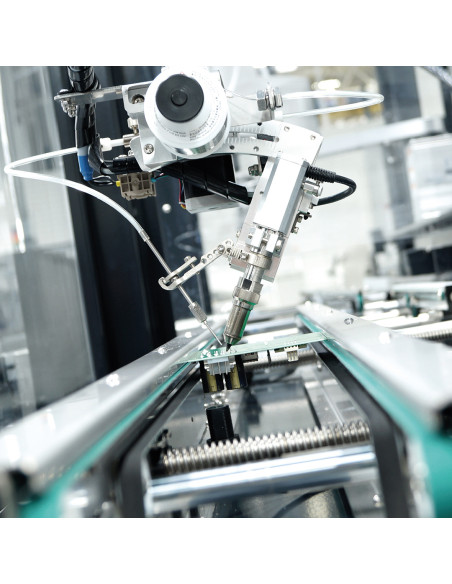

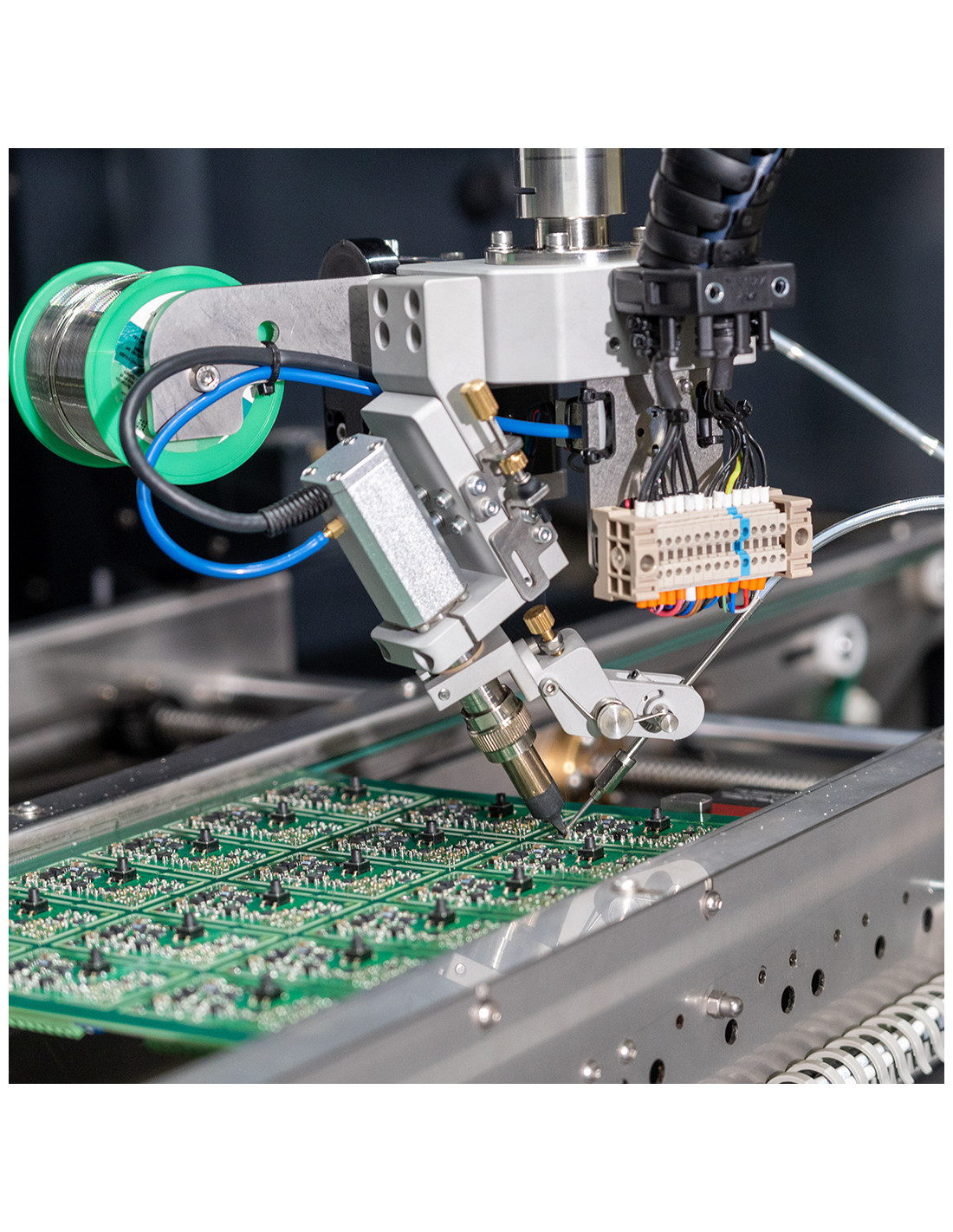

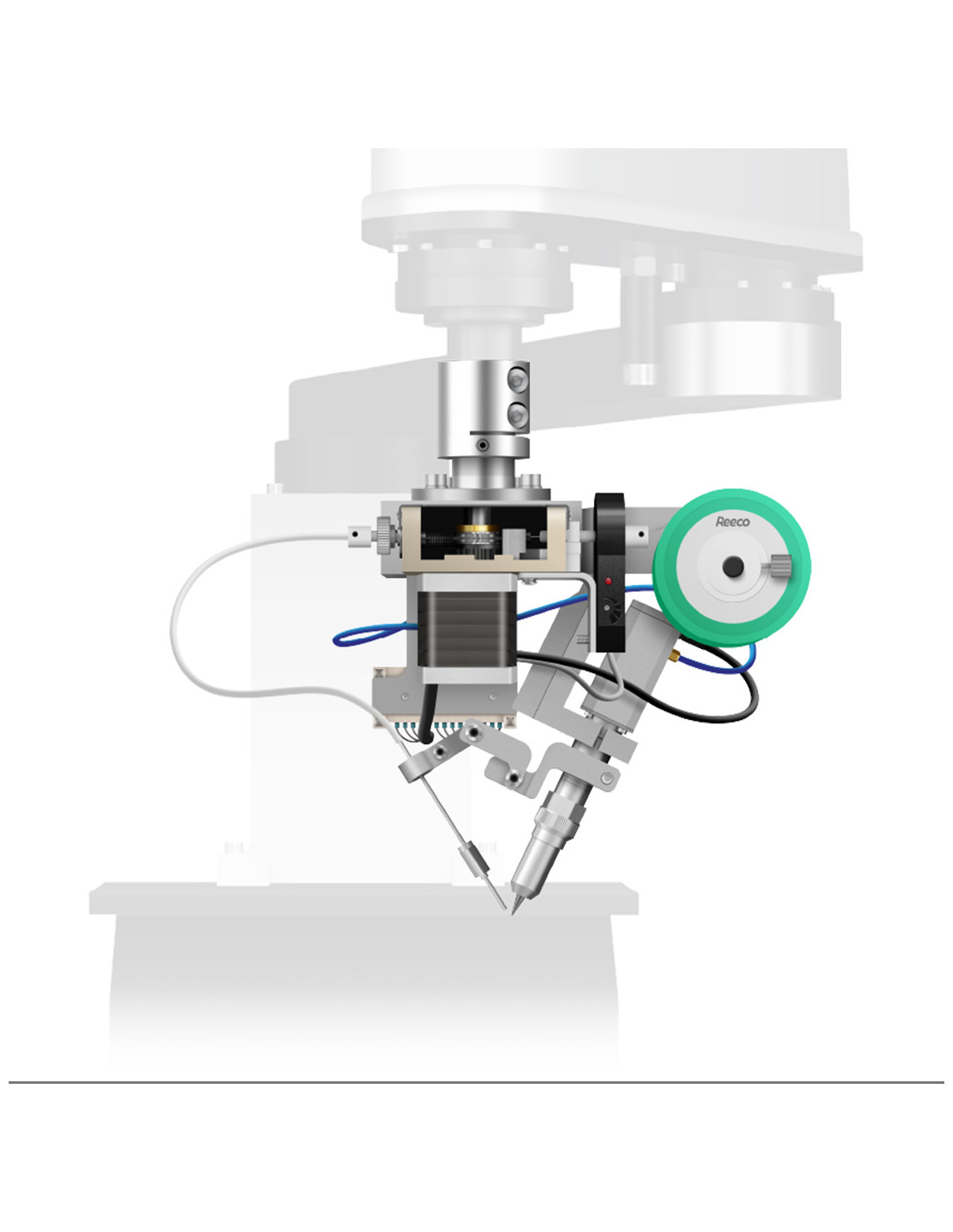

The robot arm from YAMAHA type SCARA ensures high precision positioning of the soldering head. The soldering itself with 150 W induction type heating will always supply the necessary heat for a quality joint.

Key features:
- YAMAHA SCARA Robotic Arm
- Automatic PCB positioning (mechanical or optical)
- 150 W induction soldering
- Up to 40 solder tip types
- PLC controlled process parameters
- Integrated tip cleaner
- Conveyor with SMEMA interface for connection to the production line
- Solder profile control for each point
- Optional nitrogen cover

Optional:
- Optical system for PCB positioning
- Optical system for post-process inspection of the soldering process
- Statistical data available via OPC UA protocol
- Option to introduce product traceability
- Option to replace the soldering head with one of the other functions (screwdriving, painting)
