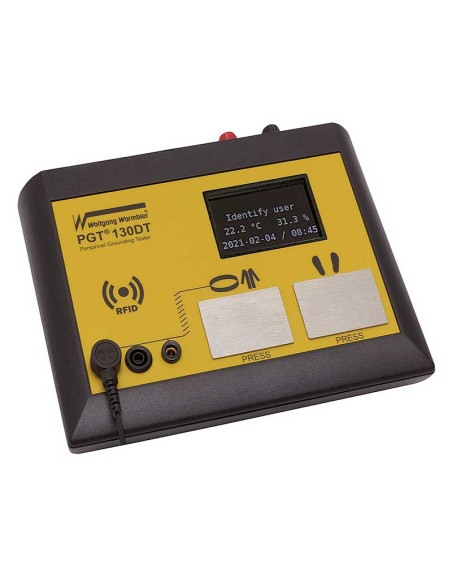

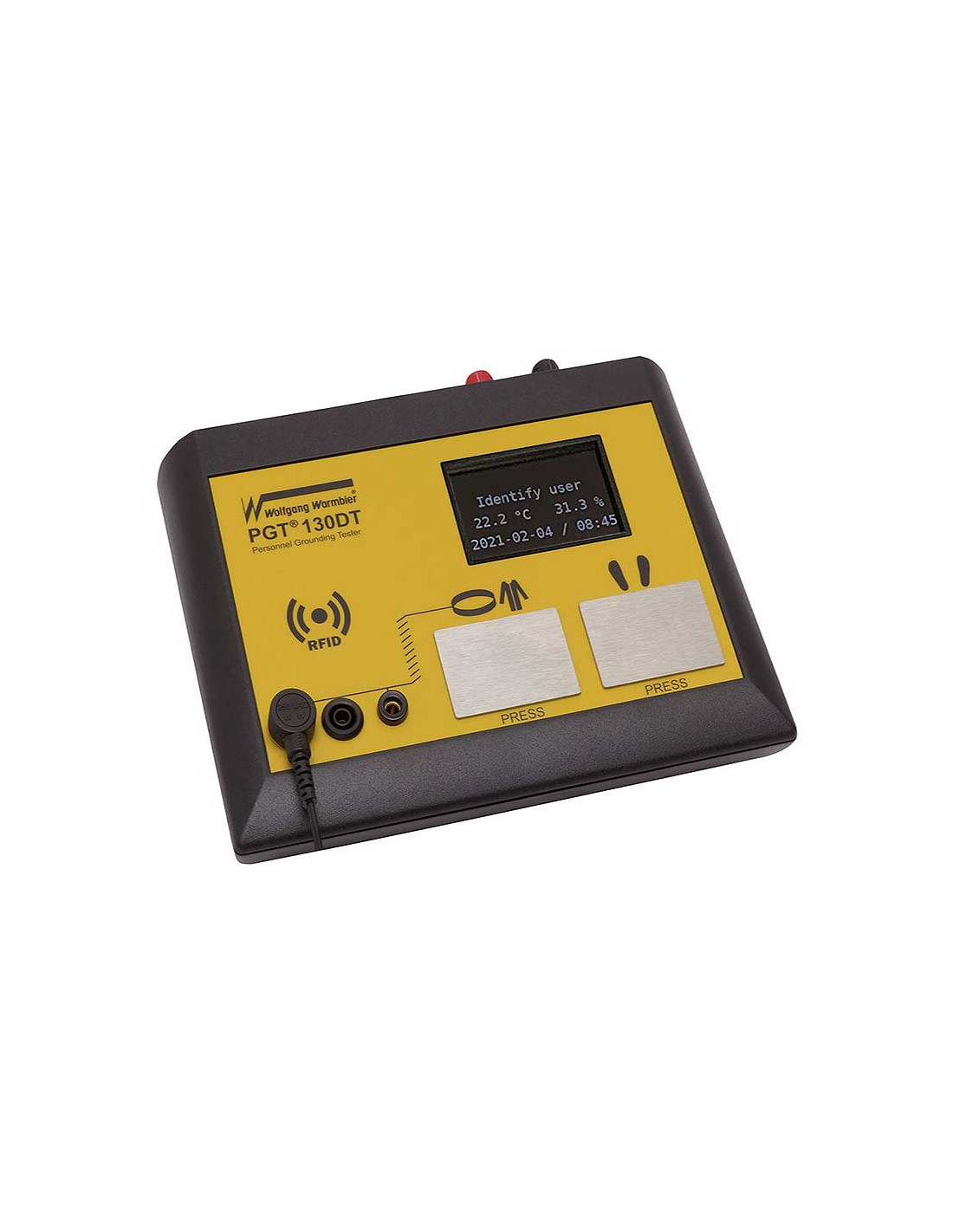

PGT130.DT ESD Tester, including a footplate

An advanced personnel screening system and entry access terminal designed to verify ESD protection upon entry into designated EPA (ESD Protected Area) zones. The PGT130.DT allows for simultaneous and separate testing of antistatic wrist straps and ESD footwear (for the left and right foot separately) with immediate evaluation of measured resistances in accordance with ČSN EN 61340-5-1 and ANSI/ESD S20.20 standards.

Key Features and Functions

• Integrated Management Interface: The device features an internal web interface for user management, configuring measurement conditions, troubleshooting, and evaluating measured data.
• Integrated Universal RFID Reader: Supports reading transponders at frequencies of 125 kHz, 134.2 kHz, and 13.56 MHz (e.g., EM4x, HITAG, ISO14443A, ISO14443B, ISO15693).

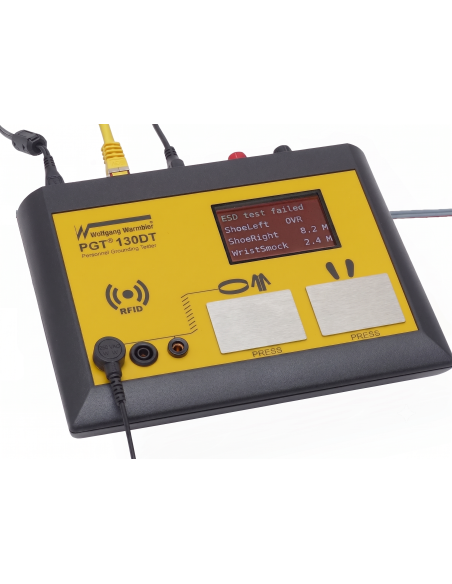

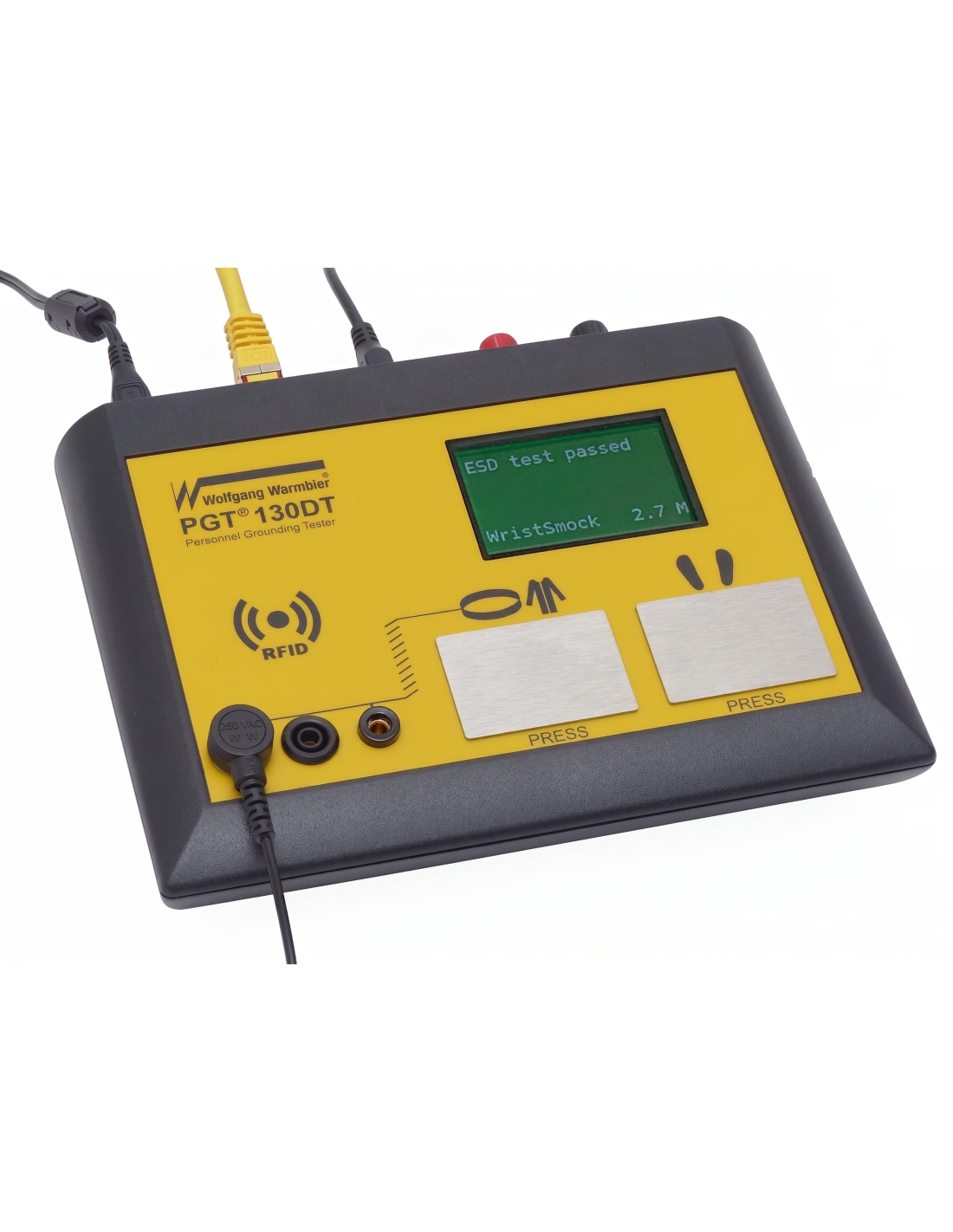

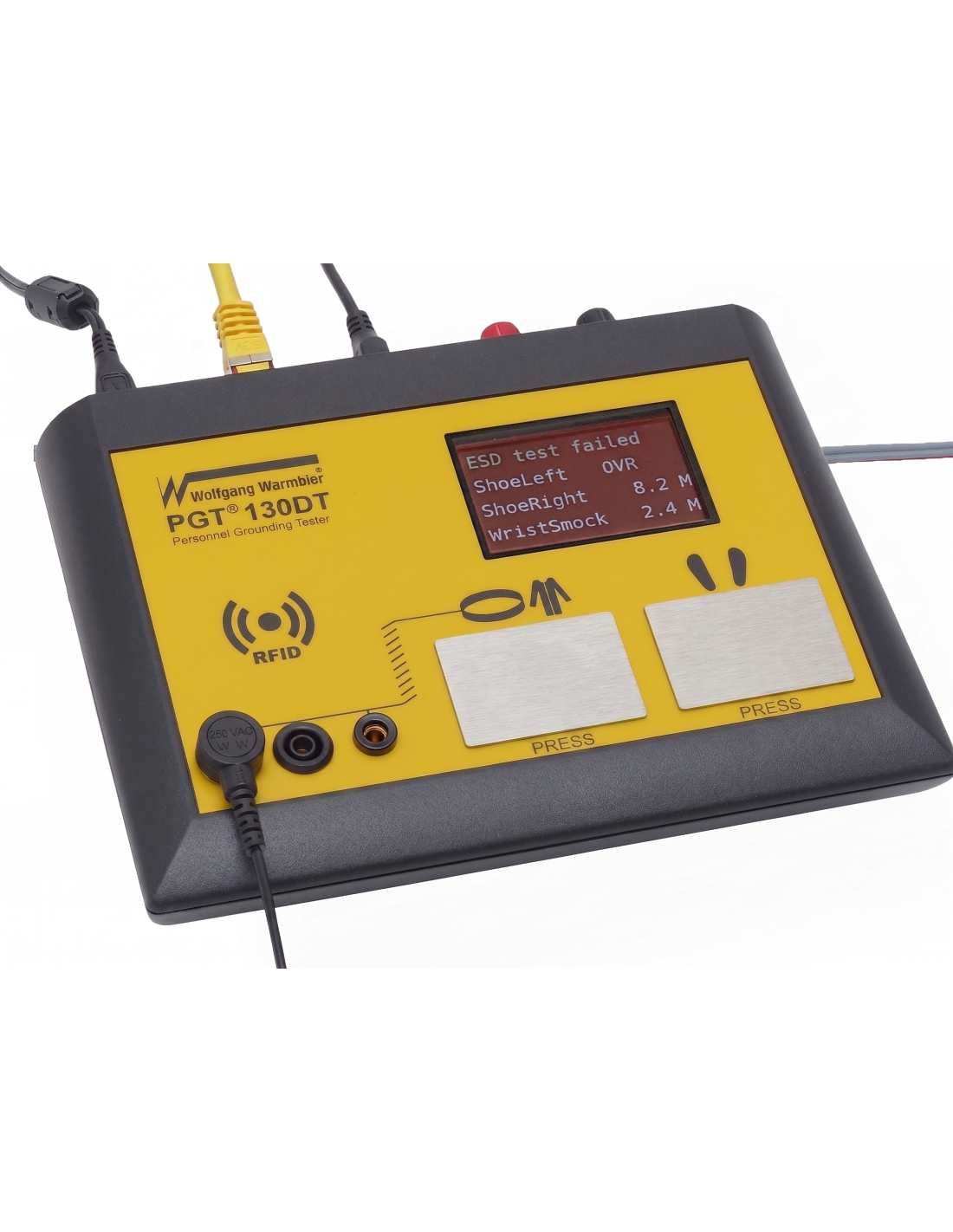

• Separate measurement circuits: Precise testing of the wristband and the left and right shoes simultaneously, with visual (green/red display color change) and audible signals.
• Access Control Controller: Integrated voltage-free relay for direct control of turnstiles, motorized gates, or electric locks following a successful test.
• Mode configuration: Option to set individual test profiles for each employee (e.g., shoes only, wristband only, combined test, or free passage).

Package Contents (Scope of Delivery)

• PGT130.DT ESD tester with integrated universal RFID reader
• Integrated interface for user management, logging, and reporting

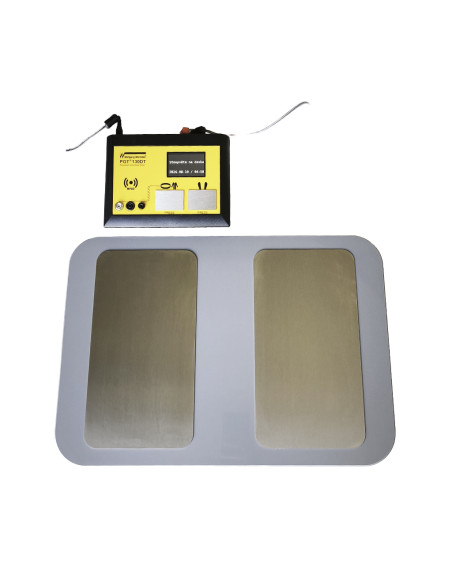

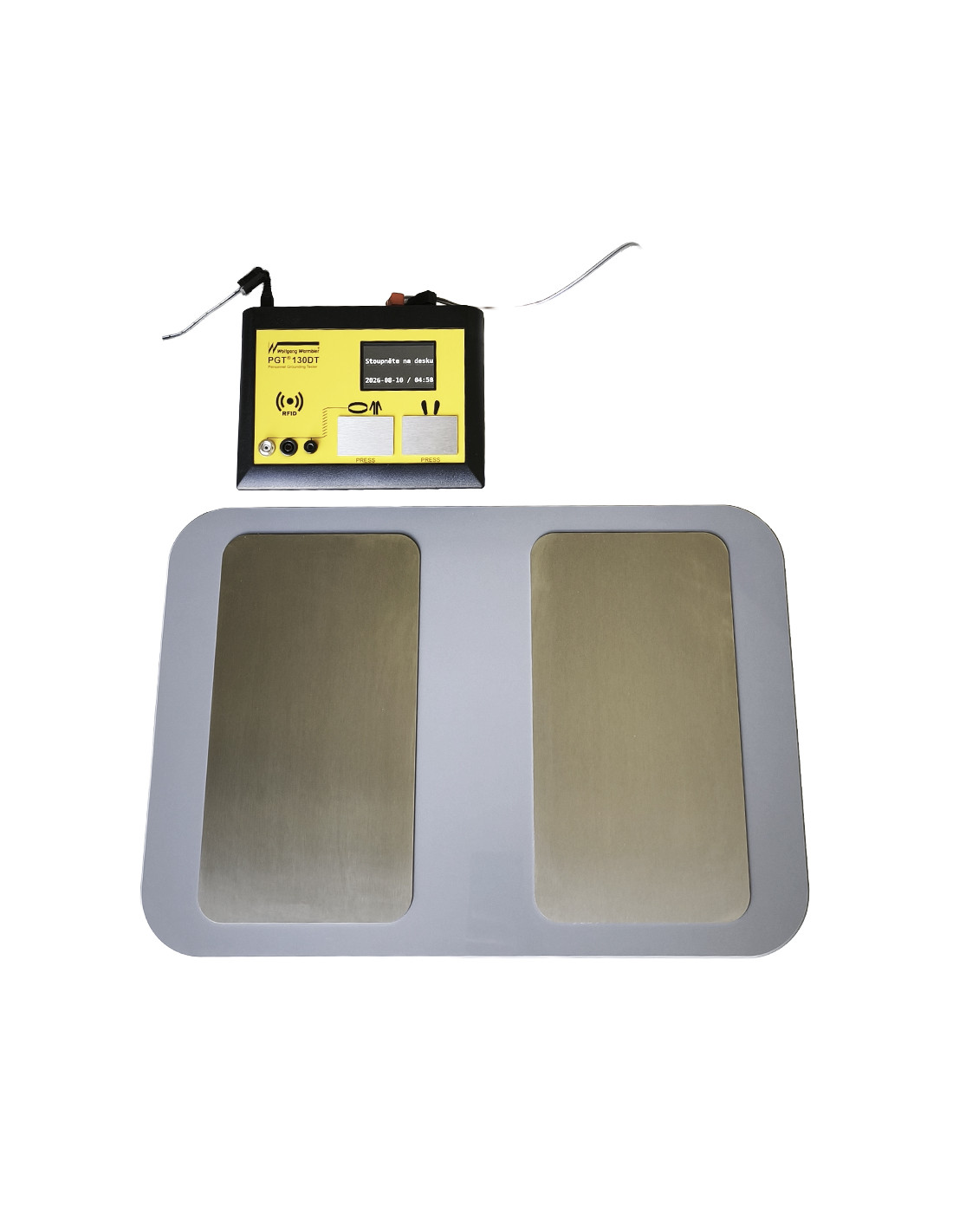

• Two-position footplate for measuring footwear
• Power adapter and connecting cables
• Factory calibration certificate

Optional accessories and services

• Centralized software for managing and reporting from multiple testers simultaneously
• Customizable configuration for reading specific RFID transponders and dual cards
• Stainless steel wall mount or stand for securing the tester
• Regular recalibration of the device in accordance with the ČSN EN 61340-5-1 standard
• Installation, network connection, and professional commissioning at the customer’s site

Note on RFID identification: By default, the unique serial number of the presented card is read in hexadecimal format. If your company’s cards are not detected or you require different data for identification, please contact us regarding custom configuration. When using dual cards (an ID card with two different transponders), the card may be detected with two different IDs.

P2J Technology s.r.o.

Product Data Sheet

PGT130.DT ESD Tester, including a footplate

An advanced personnel control system and entry access terminal designed to verify ESD protection upon entry into designated EPA areas. The PGT130.DT tester allows for simultaneous and separate testing of antistatic wristbands and ESD footwear, with immediate evaluation of measured resistances in accordance with the ČSN EN 61340-5-1 standard. Key Features and Functions Integrated Interface: Built-in interface for user management, parameter configuration, and measurement logging. Universal RFID reader: Supports 125 kHz, 134.2 kHz, and 13.56 MHz frequencies for access cards. Separate circuits: Tests the wristband and both shoes separately with color-coded visual and audible signals. Relay output: Direct control of turnstiles, motorized gates, and electric locks.

Technical Specifications

Device Type	PGT130.DT (Personal Grounding Tester)
Power Supply Voltage	100–240 V AC / 50–60 Hz
RFID Reader	125 kHz / 134.2 kHz / 13.56 MHz

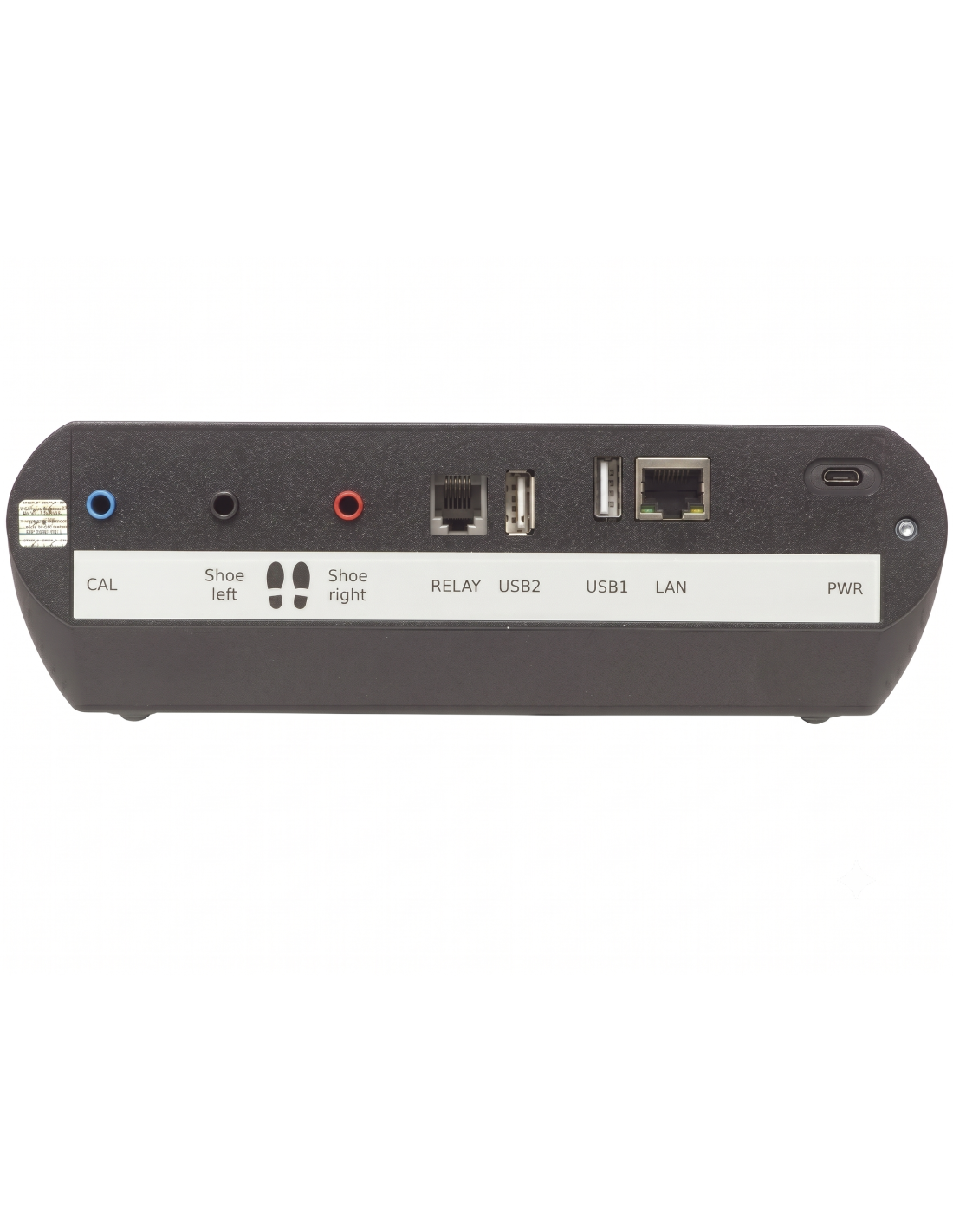

Communication	Ethernet (LAN RJ45), USB interface
Unit Dimensions	200 x 150 x 63 mm
Footplate dimensions	500 x 350 x 9 mm

Package Contents (Scope of Delivery) PGT130.DT ESD tester with RFID reader Integrated web interface for management Dual footplate for measuring footwear Power Adapter and Cables Factory Calibration Certificate

Optional accessories Central software for managing multiple testers Configuration of non-standard transponders Stainless steel wall mount / stand Regular recalibration and on-site installation

P2J Technology s.r.o. Dolní Roveň 153, 533 71 Dolní Roveň Tel: +420 725 884 930

www.p2jtechnology.cz Entry systems and access control
