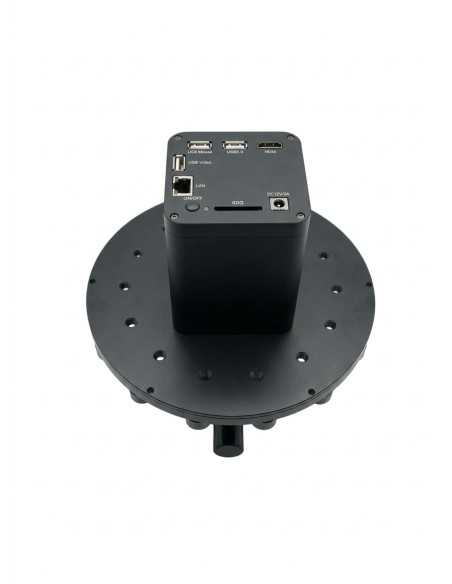

Autofocus HD Microscope Kit with Stand and Lighting for PCBs

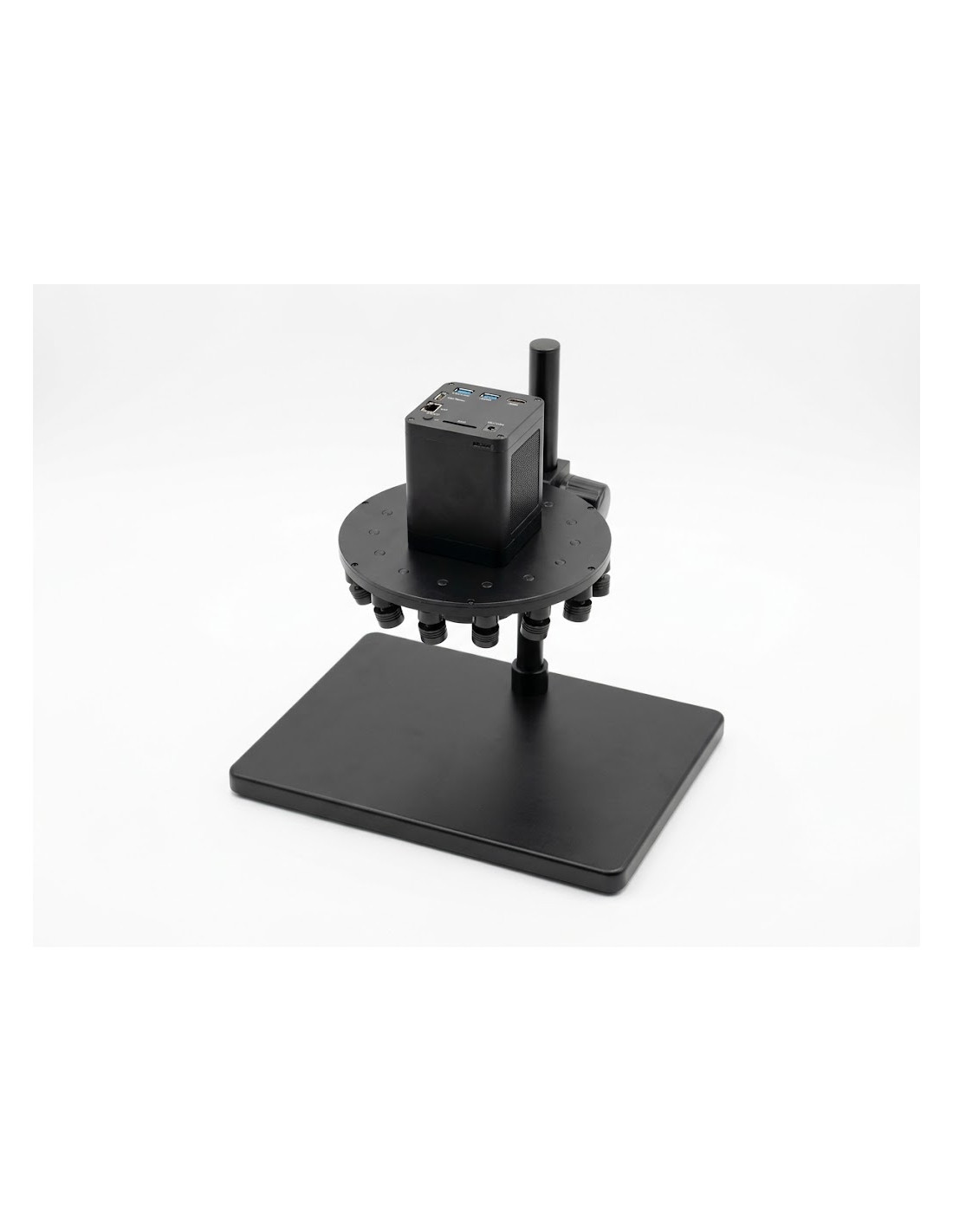

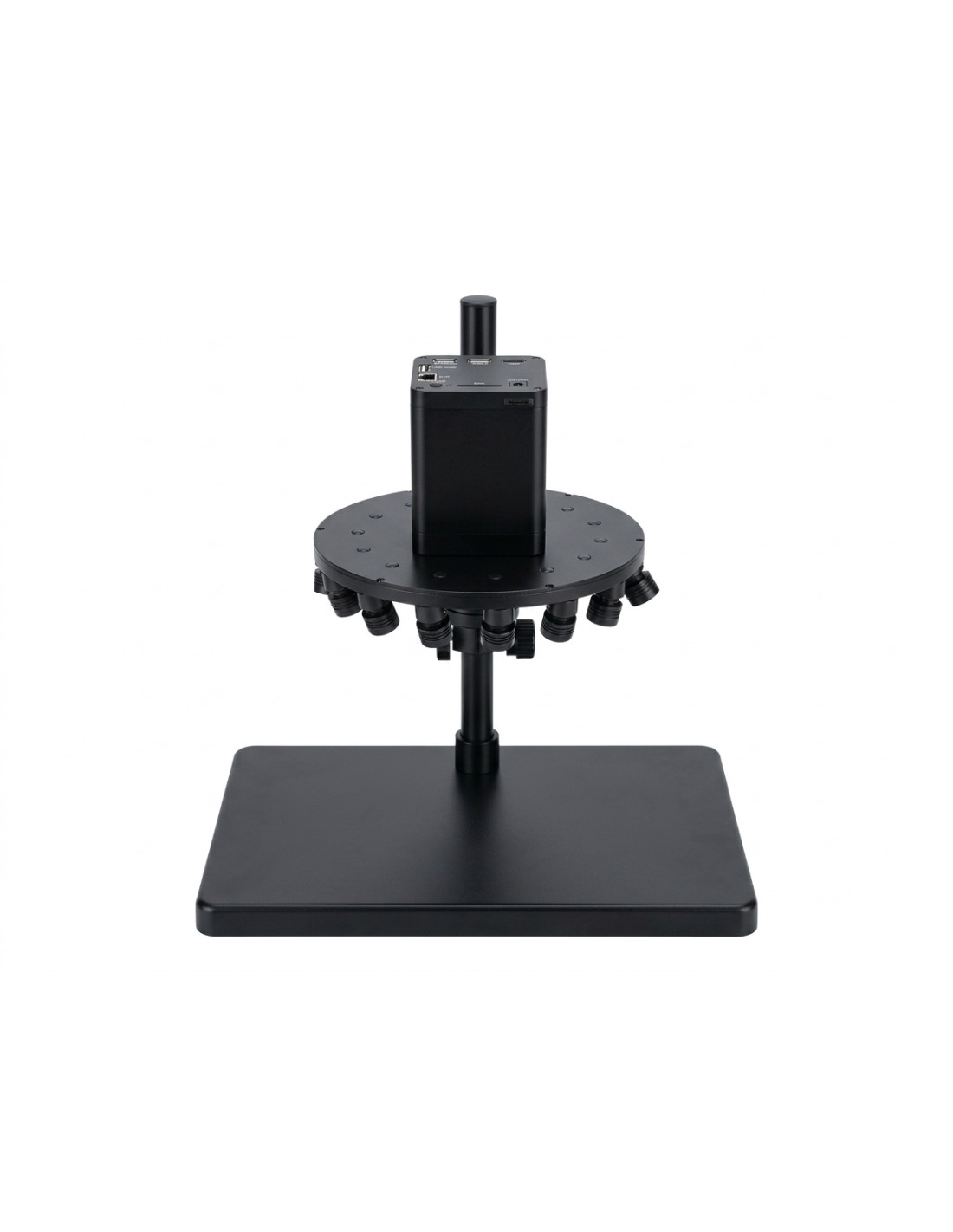

ToupTek AFDM101 Digital Inspection Microscope System + TPS30A Stand + AALRL-200-7650 Lighting: A professional workstation for the optical inspection of assembled printed circuit boards (PCBs), soldered joints, and precision mechanics, featuring autofocus and a direct HDMI output. This complete inspection station combines the state-of-the-art ToupTek AFDM101 digital camera with fast autofocus, the robust TPS30A mechanical stand, and the specialized directional AALRL-200-7650 LED lighting. The system is designed for ergonomic, precise, and fast quality control in both electronics manufacturing and development.

Key features of the system:

• Real-time autofocus (ToupTek AFDM101): The camera features lightning-fast automatic and manual focusing. There is no need to constantly refocus manually when working with components of varying heights.

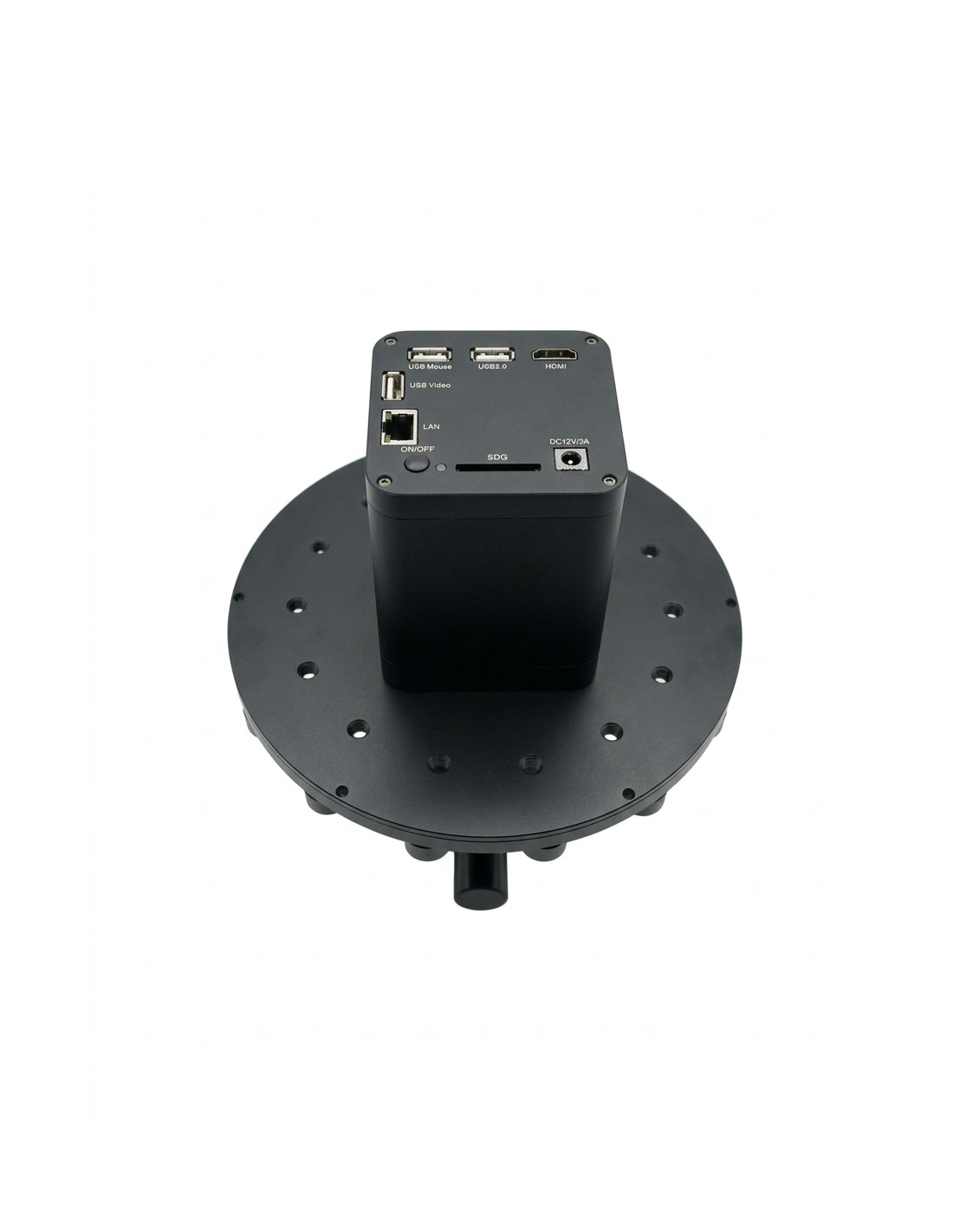

• Standalone operation without a PC: Connect a monitor directly via HDMI and control the built-in inspection software using a standard USB mouse. Images and Full HD videos are saved directly to an SD card or USB drive.


• Specialized PCB Lighting AALRL-200-7650: Circular LED lighting with precisely aimed diodes at an optimal angle eliminates unwanted glare from solder and tin, highlights the board’s topography, and reveals microcracks, short circuits, and cold joints.


• Sturdy and stable TPS30A stand: A heavy metal base and a solid column ensure wobble-free stability and provide ample workspace even for larger printed circuit boards.
