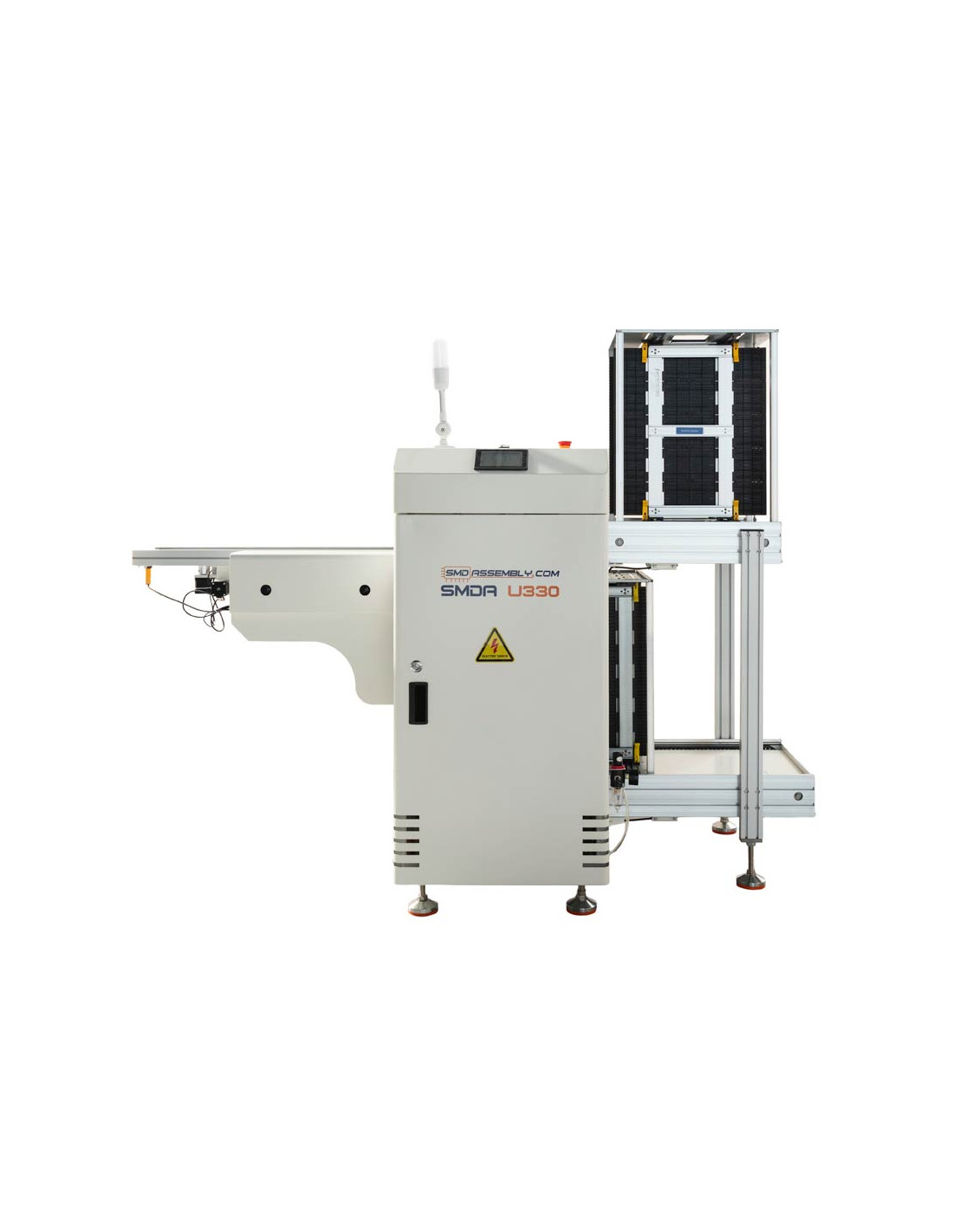

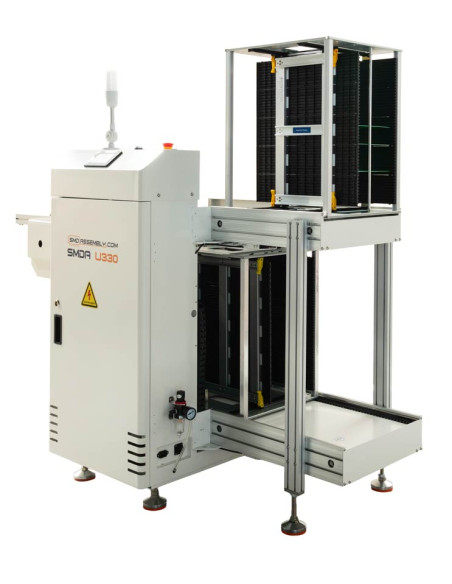

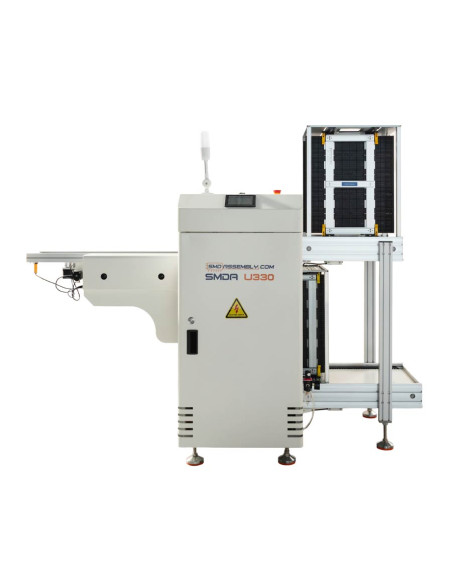

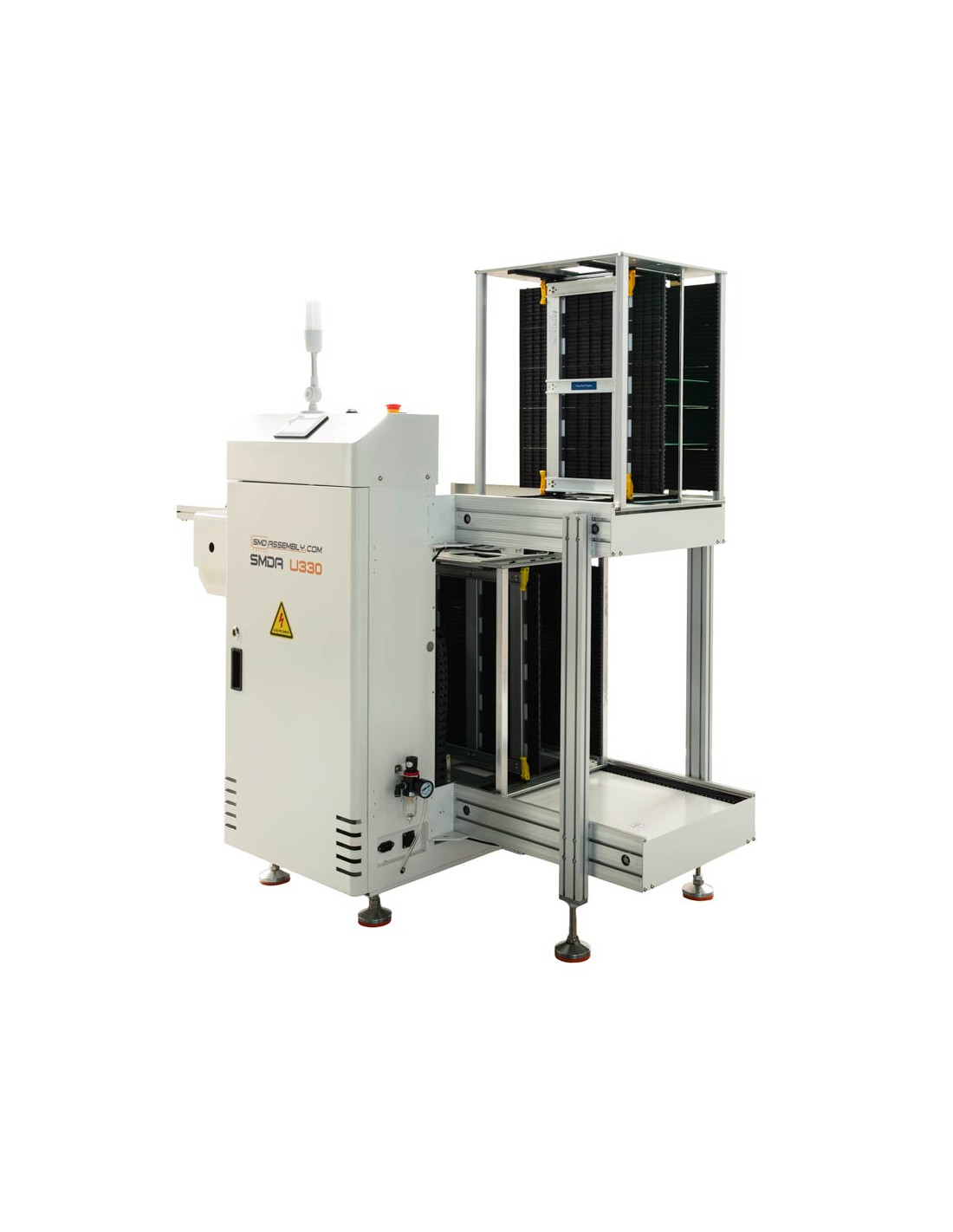

SMDA-U330 Automatic PCB Unloader for PCBs up to 450 x 330 mm

The SMDA U330 is a fully automatic printed circuit board unloader from an SMT line designed for mass production.

It is equipped with two magazines or hoppers, which enables continuous operation and reduces downtime associated with reloading.

Each magazine holds a large number of printed circuit boards, with the system supporting a maximum capacity of 50 boards. This dual-magazine configuration allows one magazine to remain in operation while the other is being prepared or replaced, ensuring a seamless workflow.

For engineers focused on optimizing line efficiency, this feature is particularly valuable because it minimizes downtime and maximizes throughput.

For PCBs ranging from 60 x 60 mm to 450 x 330 mm.
Machine dimensions: 2100 x 850 x 1200 mm, 220 kg
Includes 2 PCB magazines

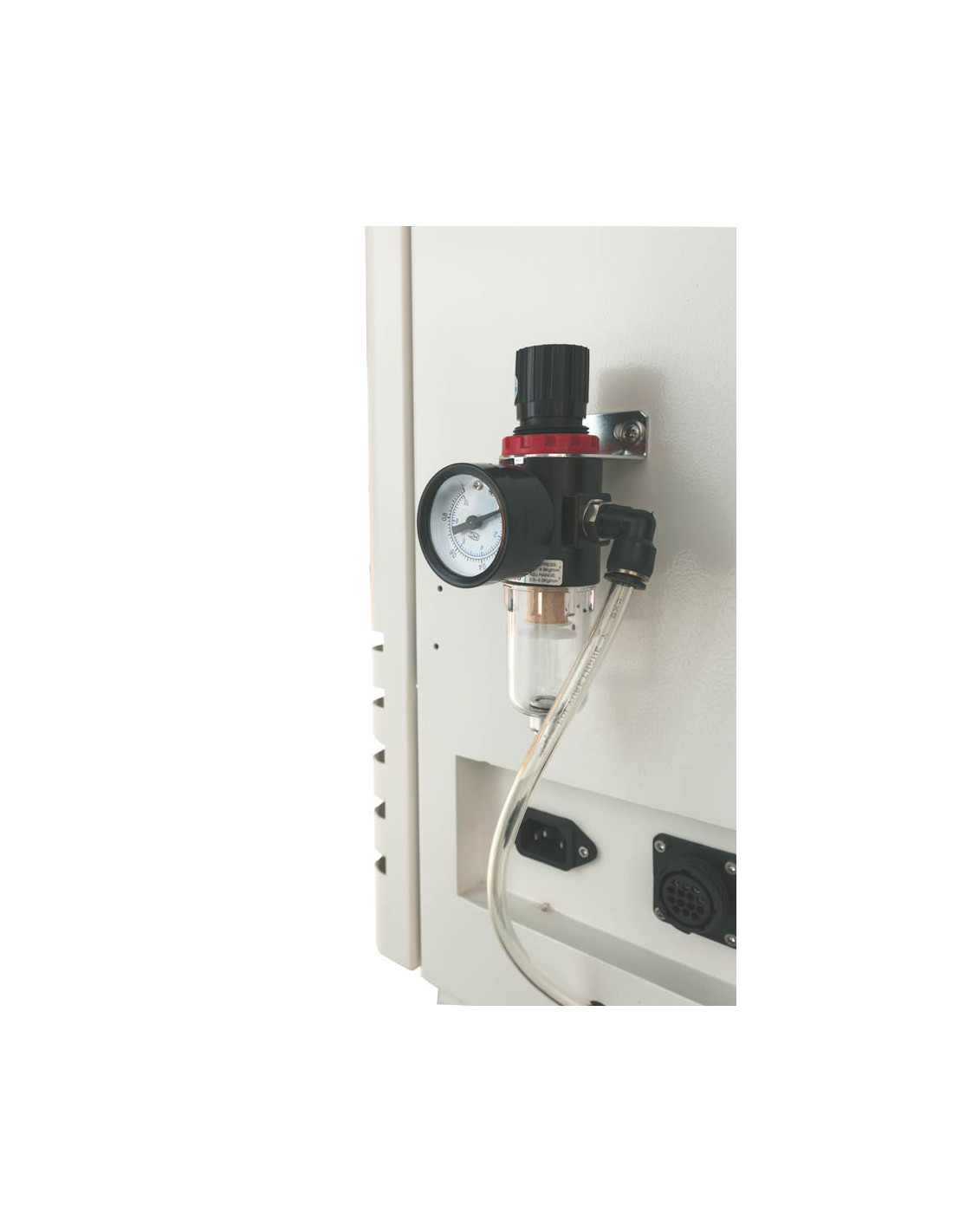

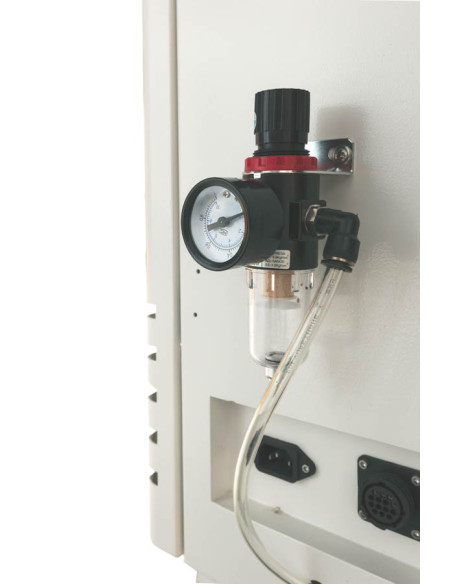

Power supply: 230 V and compressed air
SMEMA interface
